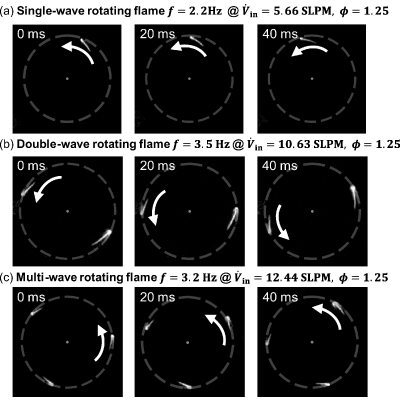

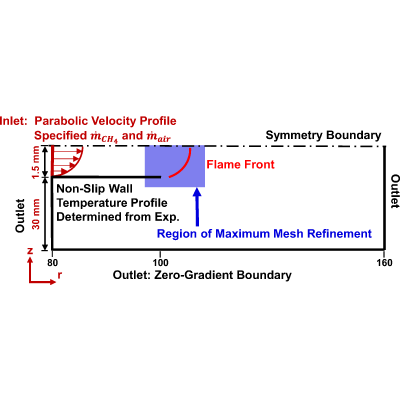

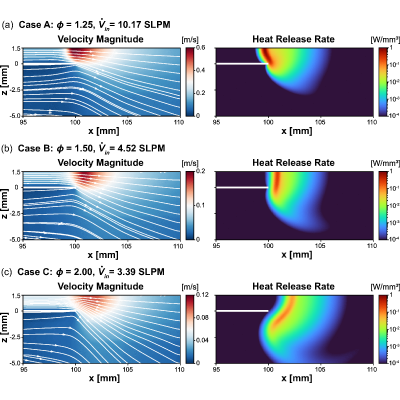

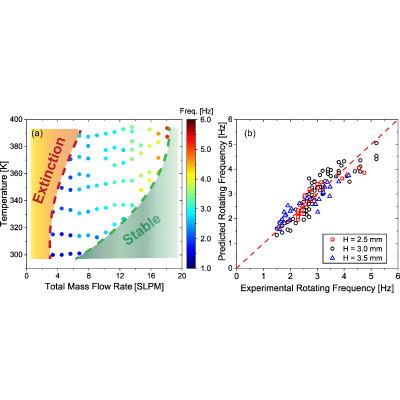

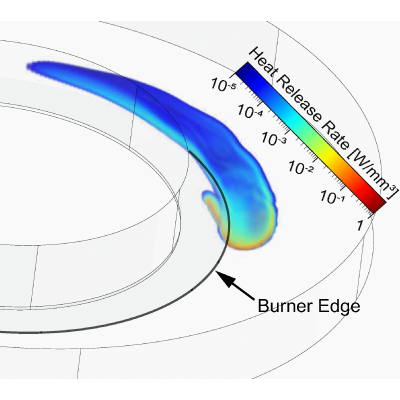

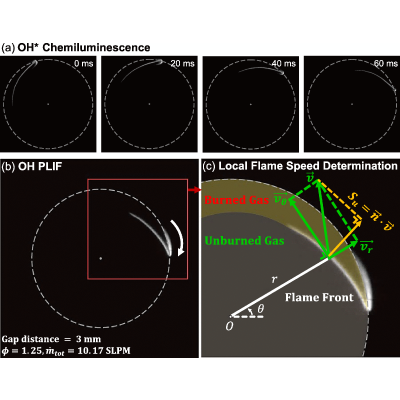

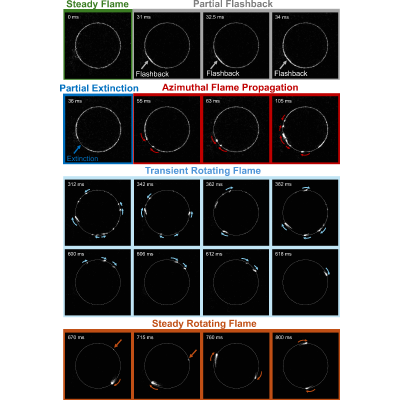

In this study, we report direct experimental observations of self-sustaining ${\mathrm{CH}}_4$-air rotating flames formed spontaneously in an unheated, open, circular Hele-Shaw cell. These flames are observed under fuel-rich conditions and exhibit stable traveling-wave patterns, with edge velocities that can significantly exceed the nominal flame speed of the unburned mixture. Planar laser-induced fluorescence (PLIF) measurements across the central plane reveal that the flame front consists of a bibrachial structure, with a diffusion branch gliding along the side edges of the cell and a premixed branch extending into the interior. Complementary numerical simulations suggest that the formation of rotating flames is driven by a dynamic balance between local flame speed and unburned-gas velocity near the cell edges, where both wall heat loss and flow expansion play critical roles in stabilizing the rotation pattern. A parametric study is conducted for various equivalence ratios, flow rates, and gap distances, from which the regime diagrams of flame modes and rotation frequencies are obtained. At low flow rates, the rotating state is characterized by a single rotating flame wave, whose rotation frequency increases with flow rate. For this type of flame, a semiempirical model is established to predict their rotation frequencies and shapes as functions of mass flow rate and surface temperature. At elevated flow rates, multiple rotating waves appear with approximately equal azimuthal spacing, and the product of the wave number and rotation frequency increases with flow rate. Mode transition from rotating flames to steady ring-shaped flames anchored at the burner edges occurs at sufficiently high flow rates, while at sufficiently low flow rates, flame extinction occurs due to thermal quenching. These findings can provide useful guidance for the advancement of microcombustion technologies.
