Experimental investigation of twin pulsed jets in a hemispheric elastic cavity
Phys. Rev. Fluids 11, 054701 – Published 11 May, 2026
DOI: https://doi.org/10.1103/gmkw-th61
Abstract

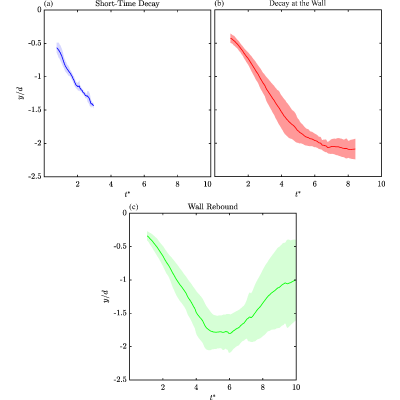

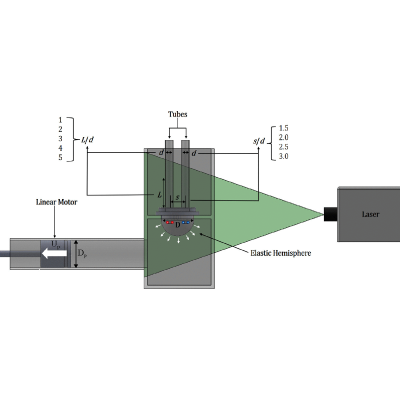

This study experimentally examines the impact of spacing between two pulsed jets and their strengths on the fluid dynamics within an elastic hemispherical cavity. Such interactions between multiple pulsed jets are observed in various natural and industrial contexts, including cardiovascular flows, where they occur naturally within the atria or result from medical interventions (e.g., mitral valve repair, mechanical heart valves, paravalvular leaks) or diseases (e.g., aortic or pulmonary valve regurgitation). Fundamentally, these flows usually feature two or more pulsed jets interacting in an expanding, elastic environment. In this investigation, the experimental setup features two parallel pulsed jets entering the cavity, with jet strength varied across five formation times (1, 2, 3, 4, 5) and four spacing ratios (1.5, 2.0, 2.5, 3.0). Time-resolved particle image velocimetry is used to capture the instantaneous velocity fields. The results reveal three distinct flow regimes: short-time decay, decay at the wall, and wall rebound—with or without the formation of secondary vortices. These findings uncover rare aspects of twin vortex ring behavior, including symmetry breaking, trajectory shifts, and wall-induced rebound mechanisms, with direct relevance to cardiac fluid dynamics in both healthy and pathological conditions.
Physics Subject Headings (PhySH)
Article Text
References (30)
- L. A. Ruiz, R. W. Whittlesey, and J. O. Dabiri, Vortex-enhanced propulsion, J. Fluid Mech. 668, 5 (2011).
- Q. Bone and E. R. Trueman, Jet propulsion in salps (Tunicata: Thaliacea), J. Zool. 201, 481 (1983).
- L. P. Madin, Aspects of jet propulsion in salps, Can. J. Zool. 68, 765 (1990).
- K. R. Sutherland and L. P. Madin, Comparative jet wake structure and swimming performance of salps, J. Exp. Biol. 213, 2967 (2010).
- J. H. Costello, S. P. Colin, B. J. Gemmell, J. O. Dabiri, and K. R. Sutherland, Multi-jet propulsion organized by clonal development in a colonial siphonophore, Nat. Commun. 6, 8158 (2015).
- K. Mohseni, Pulsatile vortex generators for low-speed maneuvering of small underwater vehicles, Ocean Eng. 33, 2209 (2006).
- A. G. Athanassiadis and D. P. Hart, Effects of multijet coupling on propulsive performance in underwater pulsed jets, Phys. Rev. Fluids 1, 034501 (2016).
- T. Chevalier, Investigating vortex ring reconnection in twin parallel pulsed jets: Influence of nozzle spacing and stroke ratio, Masters thesis, Concordia University, Montreal, 2023.
- T. Ahmed and B. D. Erath, Experimental study of vortex ring impingement on concave hemispherical cavities, J. Fluid Mech. 967, A38 (2023).
- T. H. New, J. Long, B. Zang, and S. Shi, Collision of vortex rings upon V-walls, J. Fluid Mech. 899, A2 (2020).
- L. Zhang, G. Li, W.-L. Chen, and D. Gao, Reynolds number effect of a vortex ring impinging on a concave hemi-cylindrical shell, Phys. Fluids 36, 075140 (2024).
- M. Samaee, Vortex ring decay in flexible-walled spheroidal confined domains, Ph.D. thesis, Oklahoma University, 2019.
- A. Mikhail, G. D. Labbio, A. Darwish, and L. Kadem, How pulmonary valve regurgitation after tetralogy of fallot repair changes the flow dynamics in the right ventricle: An in vitro study, Med. Eng. Phys. 83, 48 (2020).
- K. Teimouri, A. Darwish, W. Saleh, H. D. Ng, and K. Lyes, Experimental investigation of the effect of a MitraClip on left ventricular flow dynamics, Ann. Biomed. Eng. 53, 1715 (2025).
- G. Di Labbio and L. Kadem, Reduced-order modeling of left ventricular flow subject to aortic valve regurgitation, Phys. Fluids 31, 031901 (2019).
- G. Di Labbio, J. Vétel, and L. Kadem, Material transport in the left ventricle with aortic valve regurgitation, Phys. Rev. Fluids 3, 113101 (2018).
- M. Gharib, E. Rambod, and K. Shariff, A universal time scale for vortex ring formation, J. Fluid Mech. 360, 121 (1998).
- R. J. Adrian and J. Westerweel, Particle Image Velocimetry, Cambridge Aerospace Series, Vol. 30 (Cambridge University Press, Cambridge, 2011).
- M. Raffel, C. Willert, S. T. Wereley, and J. Kompenhans, Particle Image Velocimetry: A Practical Guide, 2nd ed. (Springer, Berlin, 2007).
- B. Wieneke, PIV uncertainty quantification from correlation statistics, Meas. Sci. Technol. 26, 074002 (2015).
- G. Haller, A. Hadjighasem, M. Farazmand, and F. Huhn, Defining coherent vortices objectively from the vorticity, J. Fluid Mech. 795, 136 (2016).
- G. Haller, Dynamic rotation and stretch tensors from a dynamic polar decomposition, J. Mech. Phys. Solids 86, 70 (2016).
- D. Garcia, Robust smoothing of gridded data in one and higher dimensions with missing values, Comput. Stat. Data Anal. 54, 1167 (2010).
- D. Garcia, A fast all-in-one method for automated post-processing of PIV data, Exp. Fluids 50, 1247 (2011).
- D. Garcia, Smoothn, MATLAB Central File Exchange (2026), https://www.mathworks.com/matlabcentral/fileexchange/25634-smoothn.
- C. Palacios-Morales and R. Zenit, Vortex ring formation for low Re numbers, Acta Mech. 224, 383 (2013).
- J. K. Harvey and F. J. Perry, Flowfield produced by trailing vortices in the vicinity of the ground, AIAA J. 9, 1659 (1971).
- A. De Rosis, Vortex collision against static and spinning round cylinders: A lattice Boltzmann study, Comput. Fluids 250, 105711 (2023).
- S. Kandre, V. Y. Mudkavi, and D. V. Patil, Vortex-dipole impingement with convex and concave boundaries, Phys. Fluids 36, 053103 (2024).
- L. S. Merlo, L. Kadem, W. Saleh, H. D. Ng, and G. Di Labbio, Experimental data for Experimental investigation of twin pulsed jets in a hemispheric elastic cavity [Data set], Zenodo (2026), https://doi.org/10.5281/zenodo.19672969.
