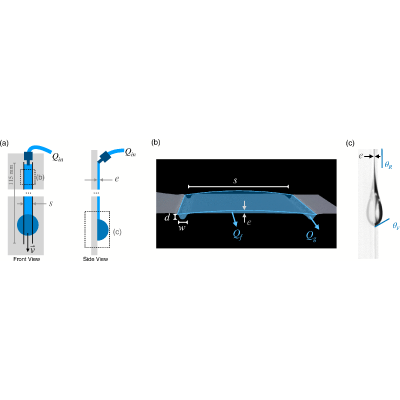

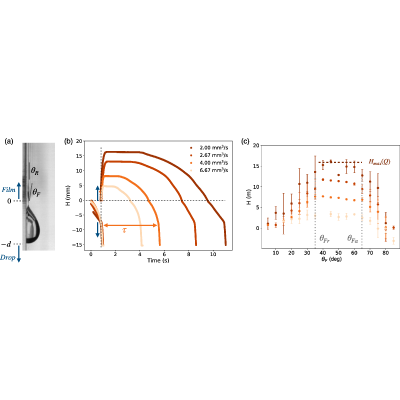

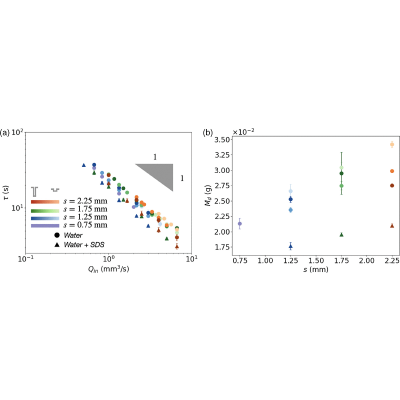

Controlling water motion on surfaces is critical for applications ranging from thermal management to passive water harvesting to self-cleaning coatings. Yet stabilizing continuous water films, desirable for their high surface coverage and drainage capacity, remains challenging with pure water, due to its high surface tension. Existing strategies rely on extreme wettability achieved by coating or fine-scale patterning, which are costly, fragile, or complex to scale. A robust, purely geometric solution is still lacking. We demonstrate that a pair of laser-engraved grooves on a moderately hydrophilic vertical substrate can laterally anchor water and stretch a continuous thin film, without any other surface treatment. Once stabilized, the film extends vertically over 100 capillary lengths ($>30\mathrm{cm}$), with thickness tunable via both flow rate and groove geometry. At the groove extremities, the end of anchoring triggers a cyclic instability, characterized by film rupture, retraction, and droplet release. The thickness of the film and retraction height obey predictive models, while droplet mass varies systematically with spacing and surface tension. This groove-based method offers a straightforward and scalable approach to creating, sustaining, and controlling thin water films. It opens new directions for passive liquid control in condensation, surface cleaning, and 2D millifluidic systems.

Close

PrevNext

View figure in article

•
•
•
•
•
•
•
•

• Drop or bubble formation
• Flow control
• Flow instability
• Thin films
• Water
• Stokes equations
