Extreme-Ultraviolet Vortices from a Free-Electron Laser

Primož Rebernik Ribič1,*, Benedikt Rösner2, David Gauthier1, Enrico Allaria1, Florian Döring2, Laura Foglia1, Luca Giannessi1,4, Nicola Mahne1, Michele Manfredda1 et al.

Claudio Masciovecchio1, Riccardo Mincigrucci1, Najmeh Mirian1, Emiliano Principi1, Eléonore Roussel1, Alberto Simoncig1, Simone Spampinati1, Christian David2, and Giovanni De Ninno1,3

  • 1Elettra-Sincrotrone Trieste, Strada Statale 14-km 163,5, 34149 Basovizza, Trieste, Italy
  • 2Paul Scherrer Institut, 5232 Villigen-PSI, Switzerland
  • 3Laboratory of Quantum Optics, University of Nova Gorica, 5001 Nova Gorica, Slovenia
  • 4ENEA, C.R. Frascati, Via E. Fermi 45, 00044 Frascati (Rome), Italy

  • *primoz.rebernik@elettra.eu
PDF

Phys. Rev. X 7, 031036 – Published 28 August, 2017Erratum Phys. Rev. X 8, 039901 (2018)

DOI: https://doi.org/10.1103/PhysRevX.7.031036

Abstract

Extreme-ultraviolet vortices may be exploited to steer the magnetic properties of nanoparticles, increase the resolution in microscopy, and gain insight into local symmetry and chirality of a material; they might even be used to increase the bandwidth in long-distance space communications. However, in contrast to the generation of vortex beams in the infrared and visible spectral regions, production of intense, extreme-ultraviolet and x-ray optical vortices still remains a challenge. Here, we present an in-situ and an ex-situ technique for generating intense, femtosecond, coherent optical vortices at a free-electron laser in the extreme ultraviolet. The first method takes advantage of nonlinear harmonic generation in a helical undulator, producing vortex beams at the second harmonic without the need for additional optical elements, while the latter one relies on the use of a spiral zone plate to generate a focused, micron-size optical vortex with a peak intensity approaching 1014  W/cm2, paving the way to nonlinear optical experiments with vortex beams at short wavelengths.

View figure in article

Physics Subject Headings (PhySH)

Corrections

19 July, 2018

Erratum

Publisher’s Note: Extreme-Ultraviolet Vortices from a Free-Electron Laser [Phys. Rev. X 7, 031036 (2017)]

Primož Rebernik Ribič, Benedikt Rösner, David Gauthier, Enrico Allaria, Florian Döring, Laura Foglia, Luca Giannessi, Nicola Mahne, Michele Manfredda, Claudio Masciovecchio, Riccardo Mincigrucci, Najmeh Mirian, Emiliano Principi, Eléonore Roussel, Alberto Simoncig, Simone Spampinati, Christian David, and Giovanni De Ninno
Phys. Rev. X 8, 039901 (2018)

Viewpoint

Free-Electron Laser Does the Twist

Published 28 August, 2017

Researchers have used a free-electron laser to produce vortex radiation at extreme-ultraviolet wavelengths.

See more in Physics

Popular Summary

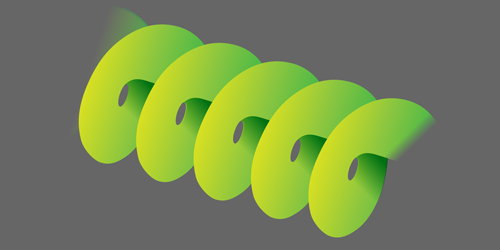

Light typically travels as a wave whose wave fronts are flat, similar to ocean waves gently coming ashore. But it is possible to make light whose wave fronts twist as they move forward. Such light beams are said to carry “orbital angular momentum.” A beam of light carrying these helically shaped wave fronts—known as optical vortices—has a donutlike intensity. In the visible spectrum, optical vortices have been used to trap and rotate small objects, increase the resolution in optical microscopes, and enhance data transmission in optical communications. At short wavelengths (ultraviolet and x rays), optical vortices are predicted to trigger new phenomena, such as loops of electric current in spherical molecules or violations of the standard rules that determine how an atom is ionized by light. Here, we demonstrate two methods for generating intense optical vortices at wavelengths approaching the x-ray spectral region using a free-electron laser (FEL).

In a FEL, powerful laserlike pulses are generated by relativistic electrons wiggling inside an undulator—a periodic magnet structure. In the first setup, we exploit the fact that harmonics emitted by electrons on a spiral trajectory through a helical undulator carry orbital angular momentum to produce intense optical vortices at the second harmonic of the FEL resonant frequency. The second method is based on the use of a spiral zone plate, which simultaneously focuses the FEL beam and imprints a helical structure onto its phase profile, generating a high-intensity focused optical vortex.

We expect that these methods will allow researchers to perform recently proposed experiments involving vortex beams in different areas of fundamental and applied physics such as characterization of materials and even long-distance space communication.

Article Text

References (52)

  1. L. Allen, M. W. Beijersbergen, R. J. C. Spreeuw, and J. P. Woerdman, Orbital Angular Momentum of Light and the Transformation of Laguerre-Gaussian Laser Modes, Phys. Rev. A 45, 8185 (1992).
  2. A. Picón, A. Benseny, J. Mompart, J. R. Vázquez de Aldana, L. Plaja, G. F. Calvo, and L. Roso, Transferring Orbital and Spin Angular Momenta of Light to Atoms, New J. Phys. 12, 083053 (2010).
  3. J. Wätzel, Y. Pavlyukh, A. Schäffer, and J. Berakdar, Optical Vortex Driven Charge Current Loop and Optomagnetism in Fullerenes, Carbon 99, 439 (2016).
  4. H. Fujita and M. Sato, Ultrafast Generation of Skyrmionic Defects with Vortex Beams: Printing Laser Profiles on Magnets, Phys. Rev. B 95, 054421 (2017).
  5. C. Hernández-García, J. Vieira, T. J. Mendonça, L. Rego, J. San Román, L. Plaja, P. R. Ribič, D. Gauthier, and A. Picón, Generation and Applications of Extreme-Ultraviolet Vortices, Photonics 4, 28 (2017).
  6. M. van Veenendaal and I. McNulty, Prediction of Strong Dichroism Induced by X Rays Carrying Orbital Momentum, Phys. Rev. Lett. 98, 157401 (2007).
  7. G. Gariepy, J. Leach, K. T. Kim, T. J. Hammond, E. Frumker, R. W. Boyd, and P. B. Corkum, Creating High-Harmonic Beams with Controlled Orbital Angular Momentum, Phys. Rev. Lett. 113, 153901 (2014).
  8. F. Kong et al., Controlling the Orbital Angular Momentum of High Harmonic Vortices, Nat. Commun. 8, 14970 (2017).
  9. H. He, M. E. J. Friese, N. R. Heckenberg, and H. Rubinsztein-Dunlop, Direct Observation of Transfer of Angular Momentum to Absorptive Particles from a Laser Beam with a Phase Singularity, Phys. Rev. Lett. 75, 826 (1995).
  10. T. Kuga, Y. Torii, N. Shiokawa, T. Hirano, Y. Shimizu, and H. Sasada, Novel Optical Trap of Atoms with a Doughnut Beam, Phys. Rev. Lett. 78, 4713 (1997).
  11. M. P. J. Lavery, F. C. Speirits, S. M. Barnett, and M. J. Padgett, Detection of a Spinning Object Using Light’s Orbital Angular Momentum, Science 341, 537 (2013).
  12. D. B. Phillips, M. P. Lee, F. C. Speirits, S. M. Barnett, S. H. Simpson, M. P. J. Lavery, M. J. Padgett, and G. M. Gibson, Rotational Doppler Velocimetry to Probe the Angular Velocity of Spinning Microparticles, Phys. Rev. A 90, 011801 (2014).
  13. J. Wang et al. Terabit Free-Space Data Transmission Employing Orbital Angular Momentum Multiplexing, Nat. Photonics 6, 488 (2012).
  14. A. Jesacher, S. Fürhapter, S. Bernet, and M. Ritsch-Marte, Shadow Effects in Spiral Phase Contrast Microscopy, Phys. Rev. Lett. 94, 233902 (2005).
  15. D. Gauthier et al. Tunable Orbital Angular Momentum in High-Harmonic Generation, Nat. Commun. 8, 14971 (2017).
  16. A. Denoeud, L. Chopineau, A. Leblanc, and F. Quéré, Interaction of Ultraintense Laser Vortices with Plasma Mirrors, Phys. Rev. Lett. 118, 033902 (2017).
  17. X. Zhang, B. Shen, Y. Shi, X. Wang, L. Zhang, W. Wang, J. Xu, L. Yi, and Z. Xu, Generation of Intense High-Order Vortex Harmonics, Phys. Rev. Lett. 114, 173901 (2015).
  18. J. Vieira, R. M. G. M. Trines, E. P. Alves, R. A. Fonseca, J. T. Mendonća, R. Bingham, P. Norreys, and L. O. Silva, High Orbital Angular Momentum Harmonic Generation, Phys. Rev. Lett. 117, 265001 (2016).
  19. P. R. Ribič and G. Margaritondo, Status and Prospects of X-Ray Free-Electron Lasers (X-FELs): A Simple Presentation, J. Phys. D 45, 213001 (2012).
  20. G. Margaritondo and P. R. Ribič, A Simplified Description of X-Ray Free-Electron Lasers, J. Synchrotron Radiat. 18, 101 (2011).
  21. E. Hemsing and A. Marinelli, Echo-Enabled X-Ray Vortex Generation, Phys. Rev. Lett. 109, 224801 (2012).
  22. P. R. Ribič, D. Gauthier, and G. De Ninno, Generation of Coherent Extreme-Ultraviolet Radiation Carrying Orbital Angular Momentum, Phys. Rev. Lett. 112, 203602 (2014).
  23. E. Hemsing, A. Knyazik, M. Dunning, D. Xiang, A. Marinelli, C. Hast, and J. B. Rosenzweig, Coherent Optical Vortices from Relativistic Electron Beams, Nat. Phys. 9, 549 (2013).
  24. A. G. Peele, P. J. McMahon, D. Paterson, C. Q. Tran, A. P. Mancuso, K. A. Nugent, J. P. Hayes, E. Harvey, B. Lai, and I. McNulty Observation of an X-Ray Vortex, Opt. Lett. 27, 1752 (2002).
  25. B. Terhalle, A. Langner, B. Päivänranta, V. A. Guzenko, C. David, and Y. Ekinci, Generation of Extreme Ultraviolet Vortex Beams Using Computer Generated Holograms, Opt. Lett. 36, 4143 (2011).
  26. S. Sasaki and I. McNulty, Proposal for Generating Brilliant X-Ray Beams Carrying Orbital Angular Momentum, Phys. Rev. Lett. 100, 124801 (2008).
  27. M. Katoh, M. Fujimoto, H. Kawaguchi, K. Tsuchiya, K. Ohmi, T. Kaneyasu, Y. Taira, M. Hosaka, A. Mochihashi, and Y. Takashima Angular Momentum of Twisted Radiation from an Electron in Spiral Motion, Phys. Rev. Lett. 118, 094801 (2017).
  28. J. Bahrdt, K. Holldack, P. Kuske, R. Müller, M. Scheer, and P. Schmid, First Observation of Photons Carrying Orbital Angular Momentum in Undulator Radiation, Phys. Rev. Lett. 111, 034801 (2013).
  29. L. H. Yu, Generation of Intense UV Radiation by Subharmonically Seeded Single-Pass Free-Electron Lasers, Phys. Rev. A 44, 5178 (1991).
  30. J. B. Murphy, C. Pellegrini, and R. Bonifacio, Collective Instability of a Free Electron Laser Including Space Charge and Harmonics, Opt. Commun. 53, 197 (1985).
  31. R. Bonifacio, L. De Salvo, and P. Pierini, Large Harmonic Bunching in a High-Gain Free-Electron Laser, Nucl. Instrum. Methods Phys. Res., Sect. A 293, 627 (1990).
  32. H. P. Freund, S. G. Biedron, and S. V. Milton, Nonlinear Harmonic Generation in Free-Electron Lasers, IEEE J. Quantum Electron. 36, 275 (2000).
  33. G. Geloni, E. Saldin, E. Schneidmiller, and M. Yurkov, Theory of Nonlinear Harmonic Generation in Free-Electron Lasers with Helical Wigglers, Nucl. Instrum. Methods Phys. Res., Sect. A 581, 856 (2007).
  34. E. Allaria et al. Highly Coherent and Stable Pulses from the FERMI Seeded Free-Electron Laser in the Extreme Ultraviolet, Nat. Photonics 6, 699 (2012).
  35. A. Sakdinawat and Y. Liu, Soft-X-Ray Microscopy Using Spiral Zone Plates, Opt. Lett. 32, 2635 (2007).
  36. E. Allaria, F. Curbis, M. Coreno, M. Danailov, B. Diviacco, C. Spezzani, M. Trovó, and G. De Ninno, Experimental Characterization of Nonlinear Harmonic Generation in Planar and Helical Undulators, Phys. Rev. Lett. 100, 174801 (2008).
  37. R. Barbini, F. Ciocci, G. Dattoli, and L. Giannessi, Spectral Properties of the Undulator Magnets Radiation: Analytical and Numerical Treatment, Riv. Nuovo Cimento 13, 1 (1990).
  38. E. Hemsing, M. Dunning, C. Hast, T. Raubenheimer, and D. Xiang, First Characterization of Coherent Optical Vortices from Harmonic Undulator Radiation, Phys. Rev. Lett. 113, 134803 (2014).
  39. R. Bonifacio, C. Pellegrini, and L. M. Narducci, Collective Instabilities and High-Gain Regime in a Free Electron Laser, Opt. Commun. 50, 373 (1984).
  40. E. L. Saldin, E. A. Schneidmiller, and M. V. Yurkov, Statistical and Coherence Properties of Radiation from X-Ray Free-Electron Lasers, New J. Phys. 12, 035010 (2010).
  41. G. Dattoli, L. Giannessi, and A. Torre, Unified View of Free-Electron Laser Dynamics and of Higher-Harmonics Electron Bunching, J. Opt. Soc. Am. B 10, 2136 (1993).
  42. D. Ratner et al. Second and Third Harmonic Measurements at the Linac Coherent Light Source, Phys. Rev. ST Accel. Beams 14, 060701 (2011).
  43. E. Ferrari, Experimental characterization of FEL polarization control with cross polarized undulators, in Proceedings of the 36th International Free-Electron Laser Conference (2014), http://accelconf.web.cern.ch/AccelConf/FEL2014/papers/tha02.pdf.

  44. The intensities of higher-order harmonics are much weaker compared to the fundamental one. Therefore, only emission at the fundamental mode was used in the analytical model.

  45. N. R. Heckenberg, R. McDuff, C. P. Smith, and A. G. White, Generation of Optical Phase Singularities by Computer-Generated Holograms, Opt. Lett. 17, 221 (1992).
  46. J. Vila-Comamala, A. Sakdinawat, and M. Guizar-Sicairos, Characterization of X-Ray Phase Vortices by Ptychographic Coherent Diffractive Imaging, Opt. Lett. 39, 5281 (2014).
  47. C. David et al. Nanofocusing of Hard X-Ray Free Electron Laser Pulses Using Diamond Based Fresnel Zone Plates, Sci. Rep. 1, 57 (2011).
  48. J. Vila-Comamala, K. Jefimovs, J. Raabe, B. Kaulich, and C. David, Silicon Fresnel Zone Plates for High Heat Load X-Ray Microscopy, Microelectron. Eng. 85, 1241 (2008).
  49. P. Mercère et al. Hartmann Wave-Front Measurement at 13.4 nm with λEUV/120 Accuracy, Opt. Lett. 28, 1534 (2003).
  50. J. Chalupský et al. Spot Size Characterization of Focused Non-Gaussian X-Ray Laser Beams, Opt. Express 18, 27836 (2010).
  51. M. Katoh et al. Helical Phase Structure of Radiation from an Electron in Circular Motion, Sci. Rep. 7, 6130 (2017).
  52. E. Allaria et al. Two-Stage Seeded Soft-X-Ray Free-Electron Laser, Nat. Photonics 7, 913 (2013).
