Control of Andreev Reflection via a Single-Molecule Orbital

Lorenz Meyer1, Jose L. Lado2, Nicolas Néel1, and Jörg Kröger1

PDF

Phys. Rev. Lett. 134, 146201 – Published 9 April, 2025

DOI: https://doi.org/10.1103/PhysRevLett.134.146201

Abstract

Charge transport across a single-molecule junction fabricated from a normal-metal tip, a phthalocyanine, and a conventional superconductor in a scanning tunneling microscope is explored as a function of the gradually closed vacuum gap. The phthalocyanine (2H-Pc) molecule and its pyrrolic-hydrogen-abstracted derivative (Pc) exhibit vastly different behavior. Andreev reflection across the 2H-Pc contact exhibits a temporary enhancement that diminishes again with increasing conductance. In contrast, the single-Pc junction lacks Andreev reflection in the same conductance range. Spectroscopies and supporting nonequilibrium Green’s function calculations highlight the importance of a molecular orbital close to the Fermi energy for Andreev reflection.

View figure in article

Physics Subject Headings (PhySH)

Collections

This article appears in the following collection:

PRL Collection of the Year 2025

For the second year in a row, our editors have curated a set of some of the best papers from the wide range of topics PRL covers in fundamental and applied physical science. Congratulations to all the authors in this collection!

Focus

Superconductivity Traverses a Single Molecule Bridge

Published 9 April, 2025

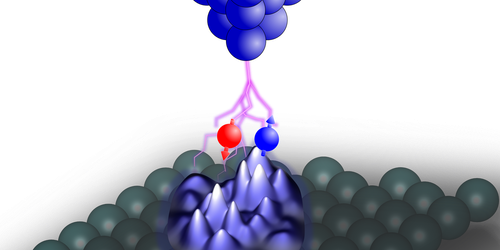

A single molecule provides a controllable connection between a normal metal and a superconductor.
