Study of $e^{+} e^{-} \to π^{+} π^{-} J / ψ$ and Observation of a Charged Charmoniumlike State at Belle

Z. Q. Liu¹⁷, C. P. Shen^36,*, C. Z. Yuan¹⁷, I. Adachi¹³, H. Aihara⁵⁹, D. M. Asner⁴⁶, V. Aulchenko³, T. Aushev²¹, T. Aziz⁵⁴ et al. (Belle Collaboration)

T. Aziz⁵⁴, A. M. Bakich⁵³, A. Bala⁴⁷, K. Belous¹⁹, V. Bhardwaj³⁸, B. Bhuyan¹⁵, M. Bischofberger³⁸, A. Bondar³, G. Bonvicini⁶⁵, A. Bozek⁴², M. Bračko^31,22, J. Brodzicka⁴², T. E. Browder¹², P. Chang⁴¹, V. Chekelian³², A. Chen³⁹, P. Chen⁴¹, B. G. Cheon¹¹, R. Chistov²¹, K. Cho²⁶, V. Chobanova³², S.-K. Choi¹⁰, Y. Choi⁵², D. Cinabro⁶⁵, J. Dalseno^32,55, M. Danilov^21,34, Z. Doležal⁴, Z. Drásal⁴, A. Drutskoy^21,34, D. Dutta¹⁵, K. Dutta¹⁵, S. Eidelman³, D. Epifanov⁵⁹, H. Farhat⁶⁵, J. E. Fast⁴⁶, M. Feindt²⁴, T. Ferber⁶, A. Frey⁹, V. Gaur⁵⁴, N. Gabyshev³, S. Ganguly⁶⁵, R. Gillard⁶⁵, Y. M. Goh¹¹, B. Golob^30,22, J. Haba¹³, K. Hayasaka³⁷, H. Hayashii³⁸, Y. Horii³⁷, Y. Hoshi⁵⁷, W.-S. Hou⁴¹, Y. B. Hsiung⁴¹, H. J. Hyun²⁸, T. Iijima^37,36, K. Inami³⁶, A. Ishikawa⁵⁸, R. Itoh¹³, Y. Iwasaki¹³, D. Joffe²⁵, T. Julius³³, D. H. Kah²⁸, J. H. Kang⁶⁷, T. Kawasaki⁴⁴, C. Kiesling³², H. J. Kim²⁸, J. B. Kim²⁷, J. H. Kim²⁶, K. T. Kim²⁷, M. J. Kim²⁸, Y. J. Kim²⁶, K. Kinoshita⁵, J. Klucar²², B. R. Ko²⁷, P. Kodyš⁴, S. Korpar^31,22, P. Križan^30,22, P. Krokovny³, T. Kuhr²⁴, Y.-J. Kwon⁶⁷, J. S. Lange⁷, S.-H. Lee²⁷, J. Li⁵¹, Y. Li⁶⁴, J. Libby¹⁶, C. Liu⁵⁰, P. Lukin³, D. Matvienko³, K. Miyabayashi³⁸, H. Miyata⁴⁴, R. Mizuk^21,34, G. B. Mohanty⁵⁴, A. Moll^32,55, R. Mussa²⁰, E. Nakano⁴⁵, M. Nakao¹³, H. Nakazawa³⁹, Z. Natkaniec⁴², M. Nayak¹⁶, E. Nedelkovska³², N. K. Nisar⁵⁴, S. Nishida¹³, O. Nitoh⁶², S. Ogawa⁵⁶, S. Okuno²³, S. L. Olsen⁵¹, Y. Onuki⁵⁹, W. Ostrowicz⁴², C. Oswald², P. Pakhlov^21,34, G. Pakhlova²¹, H. Park²⁸, H. K. Park²⁸, T. K. Pedlar⁶⁸, R. Pestotnik²², M. Petrič²², L. E. Piilonen⁶⁴, M. Ritter³², M. Röhrken²⁴, A. Rostomyan⁶, H. Sahoo¹², T. Saito⁵⁸, Y. Sakai¹³, S. Sandilya⁵⁴, D. Santel⁵, T. Sanuki⁵⁸, Y. Sato⁵⁸, V. Savinov⁴⁸, O. Schneider²⁹, G. Schnell^1,14, C. Schwanda¹⁸, R. Seidl⁴⁹, D. Semmler⁷, K. Senyo⁶⁶, O. Seon³⁶, M. E. Sevior³³, M. Shapkin¹⁹, T.-A. Shibata⁶⁰, J.-G. Shiu⁴¹, B. Shwartz³, A. Sibidanov⁵³, F. Simon^32,55, P. Smerkol²², Y.-S. Sohn⁶⁷, A. Sokolov¹⁹, E. Solovieva²¹, M. Starič²², M. Steder⁶, M. Sumihama⁸, T. Sumiyoshi⁶¹, U. Tamponi^20,63, K. Tanida⁵¹, G. Tatishvili⁴⁶, Y. Teramoto⁴⁵, K. Trabelsi¹³, T. Tsuboyama¹³, M. Uchida⁶⁰, S. Uehara¹³, T. Uglov^21,35, Y. Unno¹¹, S. Uno¹³, S. E. Vahsen¹², C. Van Hulse¹, P. Vanhoefer³², G. Varner¹², K. E. Varvell⁵³, V. Vorobyev³, M. N. Wagner⁷, C. H. Wang⁴⁰, M.-Z. Wang⁴¹, P. Wang¹⁷, X. L. Wang⁶⁴, M. Watanabe⁴⁴, Y. Watanabe²³, E. Won²⁷, B. D. Yabsley⁵³, J. Yamaoka¹², Y. Yamashita⁴³, S. Yashchenko⁶, Y. Yook⁶⁷, Y. Yusa⁴⁴, C. C. Zhang¹⁷, Z. P. Zhang⁵⁰, V. Zhilich³, and A. Zupanc²⁴ (Belle Collaboration)

¹University of the Basque Country UPV/EHU, 48080 Bilbao
²University of Bonn, 53115 Bonn
³Budker Institute of Nuclear Physics SB RAS and Novosibirsk State University, Novosibirsk 630090
⁴Faculty of Mathematics and Physics, Charles University, 121 16 Prague
⁵University of Cincinnati, Cincinnati, Ohio 45221
⁶Deutsches Elektronen-Synchrotron, 22607 Hamburg
⁷Justus-Liebig-Universität Gießen, 35392 Gießen
⁸Gifu University, Gifu 501-1193
⁹II. Physikalisches Institut, Georg-August-Universität Göttingen, 37073 Göttingen
¹⁰Gyeongsang National University, Chinju 660-701
¹¹Hanyang University, Seoul 133-791
¹²University of Hawaii, Honolulu, Hawaii 96822
¹³High Energy Accelerator Research Organization (KEK), Tsukuba 305-0801
¹⁴Ikerbasque, 48011 Bilbao
¹⁵Indian Institute of Technology Guwahati, Assam 781039
¹⁶Indian Institute of Technology Madras, Chennai 600036
¹⁷Institute of High Energy Physics, Chinese Academy of Sciences, Beijing 100049
¹⁸Institute of High Energy Physics, Vienna 1050
¹⁹Institute for High Energy Physics, Protvino 142281
²⁰INFN-Sezione di Torino, 10125 Torino
²¹Institute for Theoretical and Experimental Physics, Moscow 117218
²²J. Stefan Institute, 1000 Ljubljana
²³Kanagawa University, Yokohama 221-8686
²⁴Institut für Experimentelle Kernphysik, Karlsruher Institut für Technologie, 76131 Karlsruhe
²⁵Kennesaw State University, Kennesaw, Georgia 30144
²⁶Korea Institute of Science and Technology Information, Daejeon 305-806
²⁷Korea University, Seoul 136-713
²⁸Kyungpook National University, Daegu 702-701
²⁹École Polytechnique Fédérale de Lausanne (EPFL), Lausanne 1015
³⁰Faculty of Mathematics and Physics, University of Ljubljana, 1000 Ljubljana
³¹University of Maribor, 2000 Maribor
³²Max-Planck-Institut für Physik, 80805 München
³³School of Physics, University of Melbourne, Victoria 3010
³⁴Moscow Physical Engineering Institute, Moscow 115409
³⁵Moscow Institute of Physics and Technology, Moscow Region 141700
³⁶Graduate School of Science, Nagoya University, Nagoya 464-8602
³⁷Kobayashi-Maskawa Institute, Nagoya University, Nagoya 464-8602
³⁸Nara Women’s University, Nara 630-8506
³⁹National Central University, Chung-li 32054
⁴⁰National United University, Miao Li 36003
⁴¹Department of Physics, National Taiwan University, Taipei 10617
⁴²H. Niewodniczanski Institute of Nuclear Physics, Krakow 31-342
⁴³Nippon Dental University, Niigata 951-8580
⁴⁴Niigata University, Niigata 950-2181
⁴⁵Osaka City University, Osaka 558-8585
⁴⁶Pacific Northwest National Laboratory, Richland, Washington 99352
⁴⁷Panjab University, Chandigarh 160014
⁴⁸University of Pittsburgh, Pittsburgh, Pennsylvania 15260
⁴⁹RIKEN BNL Research Center, Upton, New York 11973
⁵⁰University of Science and Technology of China, Hefei 230026
⁵¹Seoul National University, Seoul 151-742
⁵²Sungkyunkwan University, Suwon 440-746
⁵³School of Physics, University of Sydney, New South Wales 2006
⁵⁴Tata Institute of Fundamental Research, Mumbai 400005
⁵⁵Excellence Cluster Universe, Technische Universität München, 85748 Garching
⁵⁶Toho University, Funabashi 274-8510
⁵⁷Tohoku Gakuin University, Tagajo 985-8537
⁵⁸Tohoku University, Sendai 980-8578
⁵⁹Department of Physics, University of Tokyo, Tokyo 113-0033
⁶⁰Tokyo Institute of Technology, Tokyo 152-8550
⁶¹Tokyo Metropolitan University, Tokyo 192-0397
⁶²Tokyo University of Agriculture and Technology, Tokyo 184-8588
⁶³University of Torino, 10124 Torino
⁶⁴CNP, Virginia Polytechnic Institute and State University, Blacksburg, Virginia 24061
⁶⁵Wayne State University, Detroit, Michigan 48202
⁶⁶Yamagata University, Yamagata 990-8560
⁶⁷Yonsei University, Seoul 120-749
⁶⁸Luther College, Decorah, Iowa 52101

^*Present address: Beihang University, Beijing 100191.

PDF

Phys. Rev. Lett. 110, 252002 – Published 17 June, 2013Erratum Phys. Rev. Lett. 111, 019901 (2013)

DOI: https://doi.org/10.1103/PhysRevLett.110.252002

Abstract

The cross section for $e^{+} e^{-} \to π^{+} π^{-} J / ψ$ between 3.8 and 5.5 GeV is measured with a $967 {fb}^{- 1}$ data sample collected by the Belle detector at or near the $Υ (n S)$ ( $n = 1, 2, \dots, 5$ ) resonances. The $Y (4260)$ state is observed, and its resonance parameters are determined. In addition, an excess of $π^{+} π^{-} J / ψ$ production around 4 GeV is observed. This feature can be described by a Breit-Wigner parametrization with properties that are consistent with the $Y (4008)$ state that was previously reported by Belle. In a study of $Y (4260) \to π^{+} π^{-} J / ψ$ decays, a structure is observed in the $M (π^{\pm} J / ψ)$ mass spectrum with $5.2 σ$ significance, with mass $M = (3894.5 \pm 6.6 \pm 4.5) MeV / c^{2}$ and width $Γ = (63 \pm 24 \pm 26) MeV / c^{2}$ , where the errors are statistical and systematic, respectively. This structure can be interpreted as a new charged charmoniumlike state.

Corrections

19 June, 2013

Erratum

Publisher’s Note: Study of $e^{+} e^{-} \to π^{+} π^{-} J / ψ$ and Observation of a Charged Charmoniumlike State at Belle [Phys. Rev. Lett. 110, 252002 (2013)]

Z. Q. Liu (Belle Collaboration)

Phys. Rev. Lett. 111, 019901 (2013)

Viewpoint

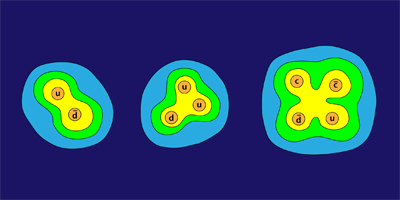

New Particle Hints at Four-Quark Matter

Published 17 June, 2013

Two experiments have detected the signature of a new particle, which may combine quarks in a way not seen before.

See more in Physics

Article Text

References (23)

B. Aubert et al. (BABAR Collaboration), Phys. Rev. Lett. 95, 142001 (2005).
Q. He et al. (CLEO Collaboration), Phys. Rev. D 74, 091104(R) (2006).
K. Abe et al. (Belle Collaboration), arXiv:hep-ex/0612006.
S. K. Choi et al. (Belle Collaboration), Phys. Rev. Lett. 100, 142001 (2008).
R. Mizuk et al. (Belle Collaboration), Phys. Rev. D 78, 072004 (2008).
A. Bondar et al. (Belle Collaboration), Phys. Rev. Lett. 108, 122001 (2012).
T. E. Coan et al. (CLEO Collaboration), Phys. Rev. Lett. 96, 162003 (2006).
C. Z. Yuan et al. (Belle Collaboration), Phys. Rev. Lett. 99, 182004 (2007).
J. P. Lees et al. (BABAR Collaboration), Phys. Rev. D 86, 051102(R) (2012).
S. Kurokawa and E. Kikutani, Nucl. Instrum. Methods Phys. Res., Sect. A 499, 1 (2003), and other papers included in this volume; T. Abe et al., Prog. Theor. Exp. Phys. 2013, 03A001 (2013) and following articles up to 03A011.
A. Abashian et al. (Belle Collaboration), Nucl. Instrum. Methods Phys. Res., Sect. A 479, 117 (2002); also see detector section in J. Brodzicka et al., Prog. Theor. Exp. Phys. 2012, 04D001 (2012).
G. Rodrigo, H. Czyż, J. H. Kühn, and M. Szopa, Eur. Phys. J. C 24, 71 (2002).
K. Hanagaki, H. Kakuno, H. Ikeda, T. Iijima, and T. Tsukamoto, Nucl. Instrum. Methods Phys. Res., Sect. A 485, 490 (2002); A. Abashian et al., 491, 69 (2002).
In the Letter, $M (π^{+} π^{-} ℓ^{+} ℓ^{-}) - M (ℓ^{+} ℓ^{-}) + M (J / ψ)$ is used instead of the invariant mass of the four final state particles to improve the mass resolution. Here $M (J / ψ)$ is the nominal mass of the $J / ψ$ .
K. Zhu, C. Z. Yuan, and R. G. Ping, Phys. Rev. D 78, 036004 (2008).
J. Beringer et al. (Particle Data Group), Phys. Rev. D 86, 010001 (2012).
The cross sections are measured to be $(13.79 \pm 0.44 \pm 0.83) pb$ and $(13.33 \pm 0.25 \pm 0.70) pb$ at $\sqrt{s} = 10.87 GeV$ , $(16.75 \pm 0.85 \pm 1.01) pb$ , and $(16.63 \pm 0.54 \pm 0.87) pb$ at $\sqrt{s} = 10.02 GeV$ , for the $e^{+} e^{-}$ and $μ^{+} μ^{-}$ modes, respectively. Our measurements agree with the predictions of $(13.42 \pm 0.25) pb$ at 10.87 GeV, and $(16.03 \pm 0.29) pb$ at 10.02 GeV [18] within errors.
E. A. Kuraev and V. S. Fadin, Yad. Fiz. 41, 733 (1985) [Sov. J. Nucl. Phys. 41, 466 (1985)].
Considering the correlation between $Γ_{e e} B (R \to π^{+} π^{-} J / ψ)$ and $Γ_{tot}$ , we get $B_{e e} B (R \to π^{+} π^{-} J / ψ) = (1.5 \pm 0.3 \pm 0.2) \times 10^{- 8}$ and $(4.8 \pm 0.6 \pm 0.5) \times 10^{- 8}$ for $R_{1}$ and $R_{2}$ , respectively, for solution I; and $B_{e e} B (R \to π^{+} π^{-} J / ψ) = (3.3 \pm 0.7 \pm 0.5) \times 10^{- 8}$ and $(15.3 \pm 1.4 \pm 1.5) \times 10^{- 8}$ for $R_{1}$ and $R_{2}$ , respectively, for solution II, where the first and second errors are statistical and systematic, respectively.
A smaller systematic error is obtained because we no longer use a BW with a phase-space-dependent total width to parametrize $R_{1}$ .
The fraction of $Z (3900)^{\pm}$ events is obtained from a one-dimensional fit to the $M_{\max } (π J / ψ)$ distribution without including possible interference with other amplitudes. For a more precise determination of this fraction, a full partial wave analysis with more statistics would be required.
We perform a partial wave analysis with $f_{0} (500)$ , $f_{0} (980)$ , nonresonant $S$ wave, and $f_{2} (1270)$ amplitudes, and find that the $S$ -wave contributions dominate. The MC distributions with fit parameters are shown in Fig. 3 with open histograms.
M. Ablikim et al. (BESIII Collaboration), preceding Letter, Phys. Rev. Lett. 110, 252001 (2013).
