Bouncing under AC electric field and Coulombic attraction suggest charge transfer between biopolymer microcapsules

Nishant Nair1, Clément de Loubens1,*, Romain Lhermerout2, Benjamin Cross2, and Hugues Bodiguel1

  • *Contact author: clement.de-loubens@univ-grenoble-alpes.fr
PDF

Phys. Rev. Fluids 11, 073701 – Published 13 July, 2026

DOI: https://doi.org/10.1103/tf2x-ktb1

Abstract

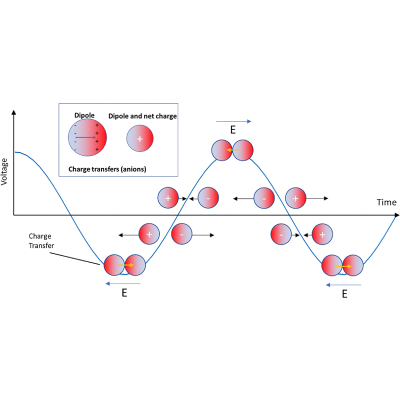

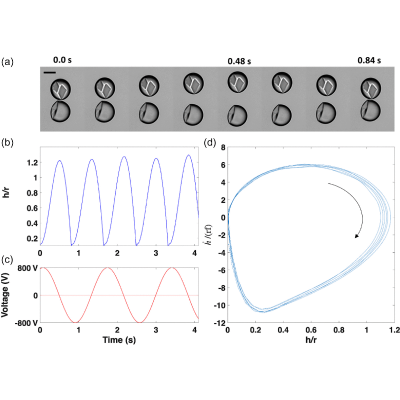

We report a striking bouncing phenomenon exhibited by pairs of ≃100µm biopolymer microcapsules subjected to a low-frequency AC electric field. The bouncing occurs at twice the applied frequency, suggesting that its origin lies in polarization-induced charge transfer during capsule-capsule contact. This interpretation is supported by the observation that, once the field is removed, the capsules spontaneously attract each other with a force consistent with Coulombic interaction between oppositely charged objects. A minimal toy model incorporating electrophoretic driving and Coulombic attraction captures semiquantitatively the observed dynamics. These findings provide direct experimental evidence of charge transfer in microcapsule suspensions and offer insights into the anomalous gel-like properties of these non-Brownian systems at low volume fractions.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (35)

  1. V. Trappe and D. Weitz, Scaling of the viscoelasticity of weakly attractive particles, Phys. Rev. Lett. 85, 449 (2000).
  2. V. Trappe, V. Prasad, L. Cipelletti, P. Segre, and D. A. Weitz, Jamming phase diagram for attractive particles, Nature (London) 411, 772 (2001).
  3. S. Gallier, E. Lemaire, F. Peters, and L. Lobry, Rheology of sheared suspensions of rough frictional particles, J. Fluid Mech. 757, 514 (2014).
  4. W. Chèvremont, B. Chareyre, and H. Bodiguel, Quantitative study of the rheology of frictional suspensions: Influence of friction coefficient in a large range of viscous numbers, Phys. Rev. Fluids 4, 064302 (2019).
  5. D. Gilbert, R. Valette, and E. Lemaire, Impact of particle stiffness on shear-thinning of non-Brownian suspensions, J. Rheol. 66, 161 (2022).
  6. A. P. Dhand, R. Poling-Skutvik, and C. O. Osuji, Simple production of cellulose nanofibril microcapsules and the rheology of their suspensions, Soft Matter 17, 4517 (2021).
  7. M. Maleki, H. Bodiguel, and C. de Loubens, Suspensions of attractive microcapsules: A noncolloidal fragile gel? J. Rheol. 69, 121 (2025).
  8. D. Grigoriev, T. Bukreeva, H. Möhwald, and D. Shchukin, New method for fabrication of loaded micro-and nanocontainers: Emulsion encapsulation by polyelectrolyte layer-by-layer deposition on the liquid core, Langmuir 24, 999 (2008).
  9. M. Kim, S. J. Yeo, C. B. Highley, J. A. Burdick, P. J. Yoo, J. Doh, and D. Lee, One-step generation of multifunctional polyelectrolyte microcapsules via nanoscale interfacial complexation in emulsion (nice), ACS Nano 9, 8269 (2015).
  10. F. Peters, G. Ghigliotti, S. Gallier, F. Blanc, E. Lemaire, and L. Lobry, Rheology of non-Brownian suspensions of rough frictional particles under shear reversal: A numerical study, J. Rheol. 60, 715 (2016).
  11. C. de Loubens, J. Deschamps, G. Boedec, and M. Leonetti, Stretching of capsules in an elongation flow, a route to constitutive law, J. Fluid Mech. 767, R3 (2015).
  12. C. de Loubens, J. Deschamps, F. Edwards-Lévy, and M. Leonetti, Tank-treading of microcapsules in shear flow, J. Fluid Mech. 789, 750 (2016).
  13. K. Xie, C. de Loubens, F. Dubreuil, D. Z. Gunes, M. Jaeger, and M. Leonetti, Interfacial rheological properties of self-assembling biopolymer microcapsules, Soft Matter 13, 6208 (2017).
  14. E. Häner, M. Heil, and A. Juel, Deformation and sorting of capsules in a t-junction, J. Fluid Mech. 885, A4 (2020).
  15. R. B. Karyappa, S. Deshmukh, R. Thaokar, et al., Deformation of an elastic capsule in a uniform electric field, Phys. Fluids 26, 122108 (2014).
  16. S. Das and R. M. Thaokar, Large-deformation electrohydrodynamics of an elastic capsule in a dc electric field, J. Fluid Mech. 841, 489 (2018).
  17. K. Priti Sinha, S. Das, R. B. Karyappa, and R. M. Thaokar, Electrohydrodynamics of vesicles and capsules, Langmuir 36, 4863 (2020).
  18. C. Pearce, The mechanism of the resolution of water-in-oil emulsions by electrical treatment, Br. J. Appl. Phys. 5, 136 (1954).
  19. W. Ristenpart, J. Bird, A. Belmonte, F. Dollar, and H. A. Stone, Non-coalescence of oppositely charged drops, Nature (London) 461, 377 (2009).
  20. A. Alicke, N. O. Jaensson, and J. Vermant, Mechanistic insights into emulsion destabilization by electric fields, Langmuir 41, 26589 (2025).
  21. D. Z. Gunes, M. Pouzot, M. Rouvet, S. Ulrich, and R. Mezzenga, Tuneable thickness barriers for composite o/w and w/o capsules, films, and their decoration with particles, Soft Matter 7, 9206 (2011).
  22. R. Chachanidze, K. Xie, H. Massaad, D. Roux, M. Leonetti, and C. de Loubens, Structural characterization of the interfacial self-assembly of chitosan with oppositely charged surfactant, J. Colloid Interface Sci. 616, 911 (2022).
  23. L. Chiappisi and M. Gradzielski, Co-assembly in chitosan–surfactant mixtures: Thermodynamics, structures, interfacial properties and applications, Adv. Colloid Interface Sci. 220, 92 (2015).
  24. M. Rinaudo, Chitin and chitosan: Properties and applications, Prog. Polym. Sci. 31, 603 (2006).
  25. M. Maleki, C. de Loubens, K. Xie, E. Talansier, H. Bodiguel, and M. Leonetti, Membrane emulsification for the production of suspensions of uniform microcapsules with tunable mechanical properties, Chem. Eng. Sci. 237, 116567 (2021).
  26. K. Xie, Instabilities of microcapsules in flow: Breakup and wrinkles, Ph.D. thesis, Ecole Centrale Marseille, 2019.
  27. J. C. Baygents, N. Rivette, and H. A. Stone, Electrohydrodynamic deformation and interaction of drop pairs, J. Fluid Mech. 368, 359 (1998).
  28. S. K. Das, A. Dalal, and G. Tomar, Electrohydrodynamic-induced interactions between droplets, J. Fluid Mech. 915, A88 (2021).
  29. B. D. Goddard, R. D. Mills-Williams, and J. Sun, The singular hydrodynamic interactions between two spheres in Stokes flow, Phys. Fluids 32, 062001 (2020).
  30. P. J. Madsen, L. Yu, S. Boucher, and A. L. Skov, Enhancing the electro-mechanical properties of polydimethylsiloxane elastomers through blending with poly(dimethylsiloxane-co-methylphenylsiloxane) copolymers, RSC Adv. 8, 23077 (2018).
  31. C. Shi, B. Yan, L. Xie, L. Zhang, J. Wang, A. Takahara, and H. Zeng, Long-range hydrophilic attraction between water and polyelectrolyte surfaces in oil, Angew. Chem. Int. Ed. 55, 15017 (2016).
  32. L. Xie, C. Shi, X. Cui, and H. Zeng, Surface forces and interaction mechanisms of emulsion drops and gas bubbles in complex fluids, Langmuir 33, 3911 (2017).
  33. D. J. Lacks and T. Shinbrot, Long-standing and unresolved issues in triboelectric charging, Nat. Rev. Chem. 3, 465 (2019).
  34. F. Chowdhury, M. Ray, A. Sowinski, P. Mehrani, and A. Passalacqua, A review on modeling approaches for the electrostatic charging of particles, Powder Technol. 389, 104 (2021).
  35. Y. Zhao, M. Liu, C.-H. Wang, S. Matsusaka, and J. Yao, Electrostatics of granules and granular flows: A review, Adv. Powder Technol. 34, 103895 (2023).

Outline

Information

Phys. Rev. Fluids 11, 073701– Published 13 July, 2026
  • Received 19 September 2025
  • Accepted 23 June 2026
