Generation of an isolated vortex gust through a heaving and pitching foil
Phys. Rev. Fluids 11, 094702 – Published 8 September, 2026
DOI: https://doi.org/10.1103/mv3n-j8bd
Abstract

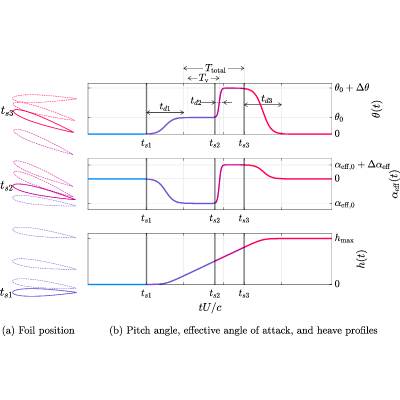

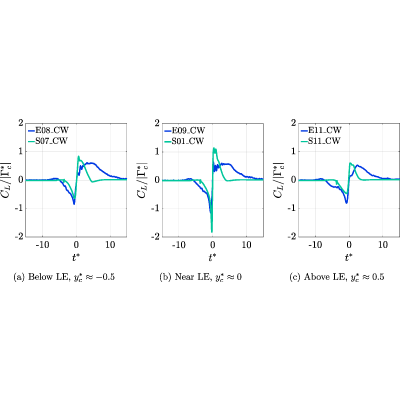

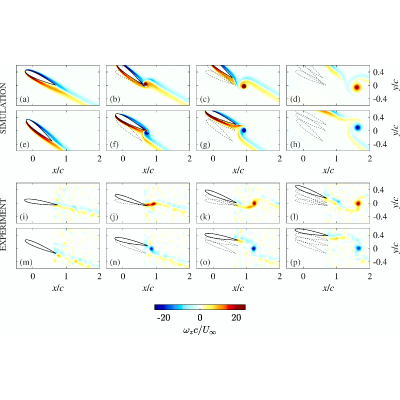

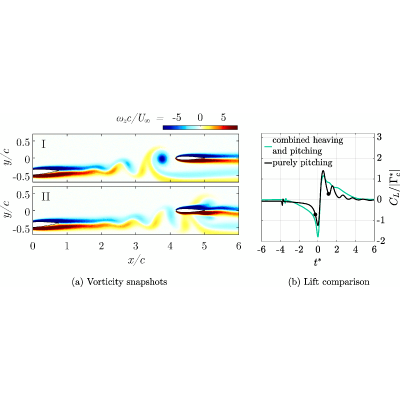

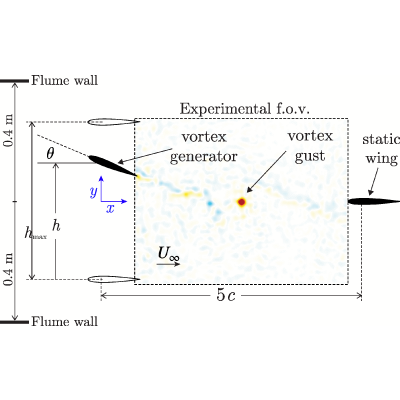

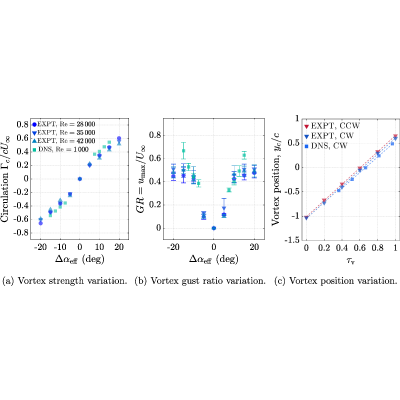

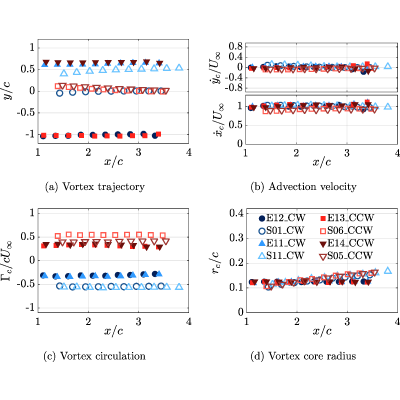

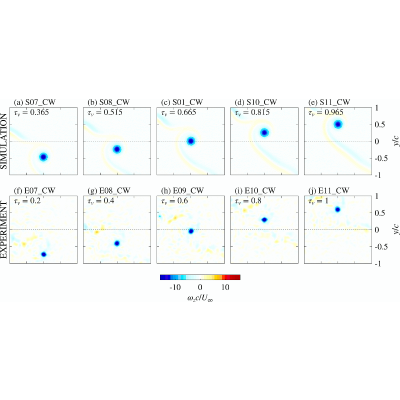

This study introduces a vortex gust generation method for isolated vortices impacting a downstream airfoil that is applicable to both numerical simulations and experiments. The vortex gust is generated by a symmetric airfoil undergoing a rapid pitching maneuver during a prescribed heaving motion. The resulting vortices propagate along trajectories nearly parallel to the incoming flow, while the associated wake extends obliquely from the vortex core. Despite differences in Reynolds number, rapid pitching duration, and detailed vortex structure between simulations and experiments, consistent trends are observed in how the vortex rotation orientation, strength, and position vary with the prescribed motion parameters. Analysis of the lift response of the downstream airfoil shows that the aerodynamic influence associated with the wake does not persist over extended timescales. These results demonstrate that the proposed method enables the controlled generation of vortex gusts with prescribed characteristics, providing a flexible approach for systematic studies of vortex-airfoil interaction.
Physics Subject Headings (PhySH)
Article Text
References (23)
- A. R. Jones, O. Cetiner, and M. J. Smith, Physics and modeling of large flow disturbances: Discrete gust encounters for modern air vehicles, Annu. Rev. Fluid Mech. 54, 469 (2022).
- A. Mohamed, M. Marino, S. Watkins, J. Jaworski, and A. Jones, Gusts encountered by flying vehicles in proximity to buildings, Drones 7, 22 (2023).
- H. G. Küssner, Stresses produced in airplane wings by gusts, Technical Report NACA-TM-654, NACA Technical Memorandum No. 654, NASA, 1932.
- T. H. von Karman and W. R. Sears, Airfoil theory for non-uniform motion, J. Aeronaut. Sci. 5, 379 (1938).
- J. W. Miles, The aerodynamic force on an airfoil in a moving gust, J. Aeronaut. Sci. 23, 1044 (1956).
- H. Atassi, The Sears problem for a lifting airfoil revisited-new results, J. Fluid Mech. 141, 109 (1984).
- A. R. Jones, Gust encounters of rigid wings: Taming the parameter space, Phys. Rev. Fluids 5, 110513 (2020).
- C. J. Barnes and M. R. Visbal, Clockwise vortical-gust/airfoil interactions at a transitional Reynolds number, AIAA J. 56, 3863 (2018).
- C. J. Barnes and M. R. Visbal, Counterclockwise vortical-gust/airfoil interactions at a transitional Reynolds number, AIAA J. 56, 2540 (2018).
- C. Martínez-Muriel and O. Flores, Analysis of vortical gust impact on airfoils at low Reynolds number, J. Fluids Struct. 99, 103138 (2020).
- Y. Zhong, K. Fukami, B. An, and K. Taira, Sparse sensor reconstruction of vortex-impinged airfoil wake with machine learning, Theor. Comput. Fluid Dyn. 37, 269 (2023).
- Y. Zhong, A. Amiri-Margavi, H. Babaee, and K. Taira, Optimally time-dependent modes of vortex gust-airfoil interactions, J. Fluid Mech. 1006, A18 (2025).
- E. A. Hufstedler and B. J. McKeon, Vortical gusts: Experimental generation and interaction with wing, AIAA J. 57, 921 (2019).
- Y. Qian, Z. Wang, and I. Gursul, Interaction of quasi-two-dimensional vortical gusts with airfoils, unswept and swept wings, Exp. Fluids 63, 124 (2022).
- D. Peng and J. W. Gregory, Vortex dynamics during blade-vortex interactions, Phys. Fluids 27, 053104 (2015).
- H. Biler, G. Sedky, A. R. Jones, M. Saritas, and O. Cetiner, Experimental investigation of transverse and vortex gust encounters at low Reynolds numbers, AIAA J. 59, 786 (2021).
- P. Vadher and H. Babinsky, Experimental generation of varied strength vortex gusts, in Proceedings of the AIAA SCITECH 2024 Forum (AIAA, Bellingham, WA, 2024), p. 1121.
- B. J. Simpson, Experimental studies of flapping foils for energy extraction, Master's thesis, Massachusetts Institute of Technology, 2009.
- L. Graftieaux, M. Michard, and N. Grosjean, Combining PIV, POD and vortex identification algorithms for the study of unsteady turbulent swirling flows, Meas. Sci. Technol. 12, 1422 (2001).
- B. L. R. Ribeiro, Y. Su, Q. Guillaumin, K. S. Breuer, and J. A. Franck, Wake-foil interactions and energy harvesting efficiency in tandem oscillating foils, Phys. Rev. Fluids 6, 074703 (2021).
- Y. Qian, Z. Wang, and I. Gursul, Lift alleviation in travelling vortical gusts, Aeronaut. J. 127, 1676 (2023).
- H. Biler, C. Badrya, and A. R. Jones, Experimental and computational investigation of transverse gust encounters, AIAA J. 57, 4608 (2019).
- J. Franck, B. Yan, E. Handy-Cardenas, and K. Breuer, Replication Data for: Generation of an isolated vortex gust through a heaving and pitching foil, Harvard Dataverse, V2, 2026, https://doi.org/10.7910/DVN/WCYWTD.
