Lifetime and droplets size distribution of dense sprays

L. Rotily1 and E. Villermaux1,2,*

  • *Contact author: emmanuel.villermaux@univ-amu.fr
PDF

Phys. Rev. Fluids 11, 064501 – Published 1 June, 2026

DOI: https://doi.org/10.1103/ms1r-7jb9

Abstract

We study the evaporation dynamics of spray lamellae—the paradigm of dense sprays evaporation—injected into a quiescent dry environment from an oscillating source. Lamellae are made of a collection of densely packed microns in size droplets of liquids with different volatilities, initially in equilibrium with their vapor. Building on an earlier study [de Rivas et al., Phys. Rev. Fluids 1, 014201 (2016)], we confirm that the lifetime of an individual droplet embedded in such a spray is much larger than expected from the usual d-squared law describing the fate of a single isolated droplet evaporating in a quiescent environment. By analogy with the way mixing times of scalars are understood from the coupling between stretching and diffusion, we show that the boundary between the spray and the diluting environment is slaved to the dynamics of its saturating vapor concentration field as envisaged in Villermaux et al. [Phys. Rev. Fluids 2, 074501 (2017)], thus explaining the very substantial evaporation delay of the liquid phase in spite of its division into fine droplets. We quantify the evaporation time for the stirring protocol of an undulating lamellae as well as, thanks to unique in situ measurements, the concomitant evolution of the droplets number, and size distribution in the spray.

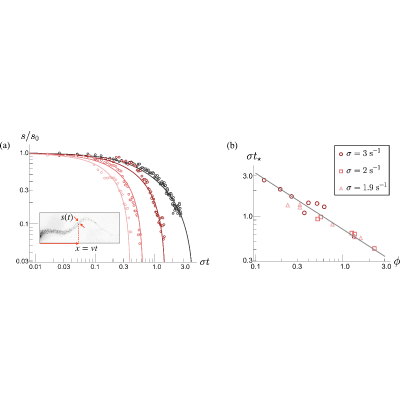

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (57)

  1. L. D. Landau and E. M. Lifschitz, Statistical Physics, Part 1 (Pergamon Press, Oxford, 1980), Vol. 5.
  2. I. Langmuir, The evaporation of small spheres, Phys. Rev. 12, 368 (1918).
  3. H. W. Morse, On evaporation from the surface of a solid sphere, Proc. Am. Acad. Arts Sci. 45, 363 (1910).
  4. H. G. Houghton, A study of the evaporation of small water drops, J. Appl. Phys. 4, 419 (1933).
  5. W. E. Ranz and W. R. Marshall, Evaporation from drops, Part I, Chem. Eng. Progr. 48, 141 (1952).
  6. A. L. Sanchez, J. Urzay, and A. Linan, The role of separation of scales in the description of spray combustion, Proc. Combust. Inst. 35, 1549 (2015).
  7. A. S. Rana, D. A. Lockerby, and J. E. Sprittles, Lifetime of a nanodroplet: Kinetic effects and regime transitions, Phys. Rev. Lett. 123, 154501 (2019).
  8. J. Finneran, C. P. Graner, and F. Nadal, Deviations from classical droplet evaporation theory, Proc. R. Soc. A 477, 20210078 (2021).
  9. P. S. Epstein and M. S. Plesset, On the stability of gas bubbles in liquid-gas solutions, J. Chem. Phys. 18, 1505 (1950).
  10. W. E. Ranz and W. R. Marshall, Evaporation from drops, Part II, Chem. Eng. Progr. 48, 173 (1952).
  11. K. V. Beard and H. R. Pruppacher, A wind tunnel inverstigation of the rate of evaporation of small water drops falling at terminal velocity in air, J. Atmos. Sci. 28, 1455 (1971).
  12. E. Ghabache, G. Liger-Belair, A. Antkowiak, and T. Séon, Evaporation of droplets in a champagne wine aerosol, Sci. Rep. 6, 25148 (2016).
  13. F. Veron, C. Hopkins, E. L. Harrison, and J. A. Mueller, Sea spray spume droplet production in high wind speeds, Geophys. Res. Lett. 39, 2012GL052603 (2012).
  14. E. R. Baylor, M. B. Baylor, D. C. Blanchard, L. D. Syzdek, and C. Appel, Virus transfer from surf to wind, Science 198, 575 (1977).
  15. G. J. Dorr, A. J. Hewitt, S. W. Adkins, J. Hanan, H. Zhang, and B. Noller, A comparison of initial spray characteristics produced by agricultural nozzles, Crop Prot. 53, 109 (2013).
  16. E. Villermaux, Fragmentation versus cohesion, J. Fluid Mech. 898, P1 (2020).
  17. T. Varkenvisser, S. Kooij, E. Villermaux, and D. Bonn, Effect of high wind speeds on droplet formation in sprays, J. Fluid Mech. 1000, A86 (2024).
  18. H. H. Chiu and T. M. Liu, Group combustion of liquid droplets, Combust. Sci. Technol. 17, 127 (1977).
  19. N. Chigier, Group combustion models and laser diagnostic methods in sprays: A review, Combust. Flame 51, 127 (1983).
  20. R. C. Srivastava, Growth of cloud drops by condensation: A criticism of currently accepted theory and a new approach, J. Atmos. Sci. 46, 869 (1989).
  21. H. R. Pruppacher and J. D. Klett, Microphysics of Clouds and Precipitation (Kluwer Academic Publishers, Amsterdam, 1997).
  22. A. B. Kostinski, Simple approximations for condensational growth, Environ. Res. Lett. 4, 015005 (2009).
  23. J. Fries, G. Sardina, G. Svensson, A. Pumir, and B. Mehlig, Lagrangian supersaturation fluctuations at the cloud edge, Phys. Rev. Lett. 131, 254201 (2023).
  24. X. Lefebre, M. Chartray-Pronovost, C. Duchaine, E. Bédard, M. Prévost, and E. Robert, Evaporation of aerosol droplets from contaminated cooling tower water, Phys. Fluids 37, 023365 (2025).
  25. E. J. Lowbury, The persistence of dust in occupied rooms, Epidemiol. Infect. 48, 1 (1950).
  26. J. P. Duguid, The size and the duration of air-carriage of respiratory droplets and droplet-nuclei, Epidemiol. Infect. 44, 471 (1946).
  27. C. E. Turner, M. W. Jennison, and H. E. Edgerton, Public health applications of high-speed photography, American Journal of Public Health 31, 319 (1941).
  28. L. Bourouiba, E. Dehandschoewercker, and J. W. M. Bush, Violent expiratory events: On coughing and sneezing, J. Fluid Mech. 745, 537 (2014).
  29. K. L. Chong, C. S. Ng, N. Hori, R. Yang, R. Verzicco, and D. Lohse, Extended lifetime of respiratory droplets in a turbulent vapor puff and its implications on airborne disease transmission, Phys. Rev. Lett. 126, 034502 (2021).
  30. F. W. Wells, Airborne Contagion and Air Hygiene (Harvard University Press, Cambridge, MA, 1955).
  31. R. L. Riley and F. O'Grady, Airborne Infection, Transmission and Control (The MacMillan Company, New York, 1961).
  32. T. Umeki, M. Ohata, H. Nakanishi, and M. Ichikawa, Dynamics of microdroplets over the surface of hot water, Sci. Rep. 5, 8046 (2015).
  33. G. Castanet, L. Perrin, O. Caballina, and F. Lemoine, Evaporation of closely-spaced interacting droplets arranged in a single row, Int. J. Heat Mass Transfer 93, 788 (2016).
  34. O. Carrier, N. Shahidzadeh, R. Zargar, M. Aytouna, M. Habibi, J. Eggers, and D. Bonn, Evaporation of water: Evaporation rate and collective effects, J. Fluid Mech. 798, 774 (2016).
  35. A. Bouillant, J. H. Snoeijer, and B. Andreotti, Collective effects in breath figures, Phys. Rev. Fluids 10, 053605 (2025).
  36. A. de Rivas and E. Villermaux, Dense spray evaporation as a mixing process, Phys. Rev. Fluids 1, 014201 (2016).
  37. E. Villermaux, A. Moutte, M. Amielh, and P. Meunier, Fine structure of the vapor field in evaporating dense sprays, Phys. Rev. Fluids 2, 074501 (2017).
  38. W. E. Ranz, Application of a stretch model to mixing, diffusion and reaction in laminar and turbulent flows, AIChE J. 25, 41 (1979).
  39. P. Meunier and E. Villermaux, How vortices mix, J. Fluid Mech. 476, 213 (2003).
  40. M. Souzy, I. Zaier, H. Lhuissier, T. Le Borgne, and B. Metzger, Mixing lamellae in a shear flow, J. Fluid Mech. 838, R3 (2018).
  41. H. A. Becker and T. A. Massaro, Vortex evolution in a round jet, J. Fluid Mech. 31, 435 (1968).
  42. L. Rotily, The persistance of evaporating dense sprays, Ph.D. thesis, Aix-Marseille University, 2024.
  43. G. A. Lugg, Diffusion coefficients of some organic and other vapors in air, Anal. Chem. 40, 1072 (1968).
  44. C. Tropea, Optical particle characterization in flows, Annu. Rev. Fluid Mech. 43, 399 (2011).
  45. N. Semidetnov and C. Tropea, Conversion relationships for multidimensional particle sizing techniques, Meas. Sci. Technol. 15, 112 (2004).
  46. E. Villermaux, Mixing versus stirring, Annu. Rev. Fluid Mech. 51, 245 (2019).
  47. G. K. Batchelor, Small-scale variation of convected quantities like temperature in turbulent fluid, Part 1. General discussion and the case of small conductivity, J. Fluid Mech. 5, 113 (1959).
  48. J. W. Lord Rayleigh, On the stability, or instability of certain fluid motion, Proc. Lond. Math. Soc. s11-11, 57 (1880).
  49. H. B. Squire, Investigation of the stability of a moving liquid film, Br. J. Appl. Phys. 4, 167 (1953).
  50. N. Petropoulos, S. M. de Bruyn Kops, P. Meunier, and E. Villermaux, Lyapunov exponents in conservative systems: The importance of rare compression events (unpublished).
  51. I. M. Lifshitz and V. V. Slyozov, The kinetics of precipitation from supersaturated solid solutions, J. Phys. Chem. Solids 19, 35 (1961).
  52. J. J. Kilbride, F. F. Ouali, and D. J. Fairhurst, Ostwald ripening in evaporating respiratory breath figures, Phys. Rev. Fluids 10, L101601 (2025).
  53. M. Tateno and O. A. Saleh, Diffusive and enzymatic modulation of the dynamic size distribution of DNA droplets, Phys. Rev. Lett. 136, 068403 (2026).
  54. M. J. Beals, J. P. Fugal, R. A. Shaw, J. Lu, S. M. Spuler, and J. L. Stith, Holographic measurements of inhomogeneous cloud mixing at the centimeter scale, Science 350, 87 (2015).
  55. B. Kumar, J. Schumacher, and R. A. Shaw, Lagrangian mixing dynamics at the cloudy–clear air interface, J. Atmos. Sci. 71, 2564 (2014).
  56. P. Meunier and E. Villermaux, The diffuselet concept for scalar mixing, J. Fluid Mech. 951, A33 (2022).
  57. V. Pushenko, S. Scollo, P. Meunier, E. Villermaux, and J. Schumacher, Diffuselet method for three-dimensional turbulent mixing of a cloudy air filament, Phys. Rev. Fluids 10, 074503 (2025).
