Capturing multiscale interactions in fluid flow via Lagrangian coherent structures and modal analysis

Morgan R. Jones1,2, Charles J. Klewicki1,3, Oliver Khan1,4, Steven L. Brunton5, and Mitul Luhar1

PDF

Phys. Rev. Fluids 11, 094902 – Published 11 September, 2026

DOI: https://doi.org/10.1103/kgw4-ywtm

Abstract

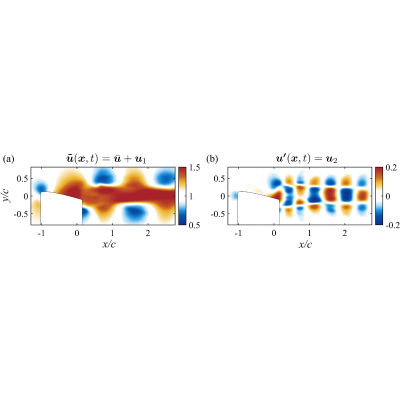

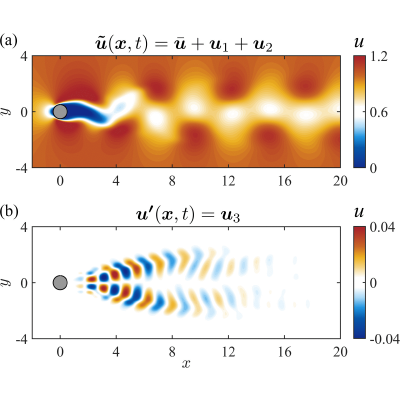

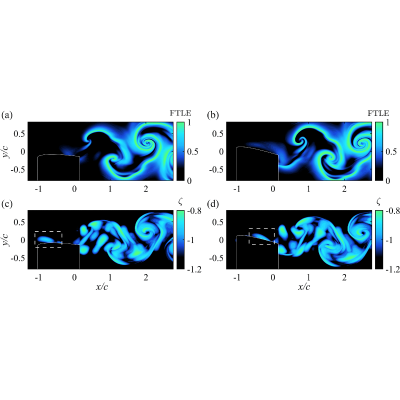

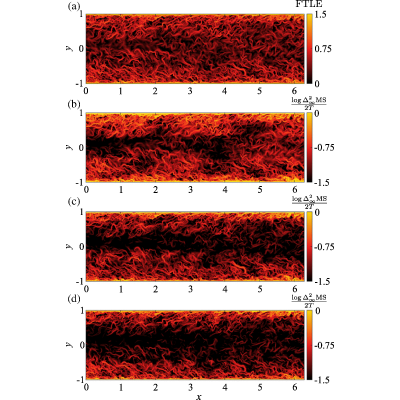

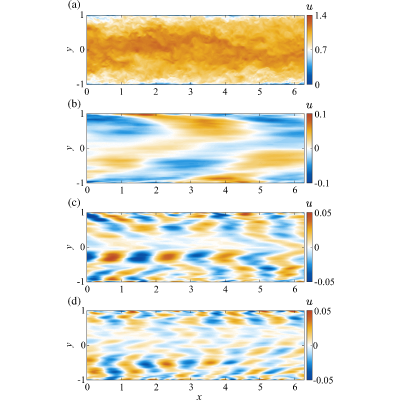

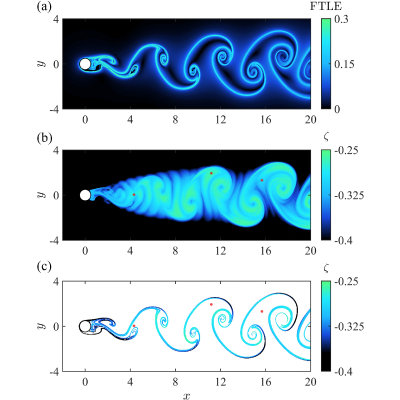

We consider the relationship between Eulerian modal decompositions and Lagrangian coherent structures. The model sensitivity framework developed by Kaszás and Haller [Chaos 30, 113144 (2020)] is used to express data-driven modal representations of fluid flow in a Lagrangian space. The method, based on the computation of the finite-time Lyapunov exponent, computes the amplitude perturbations experienced by fluid particles due to specific modal components of the flow. Demonstrations of the method are presented for both periodic and turbulent flows, including direct numerical simulation (DNS) data of the classical cylinder wake flow, experimental data from the wake past an oscillating foil, and DNS data of a turbulent channel flow. This method provides a way to understand how Eulerian mode structures interact dynamically with features of the Lagrangian coherent structure across scales, offering additional physical insight into modal decompositions.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (39)

  1. K. Taira, S. L. Brunton, S. T. M. Dawson, C. W. Rowley, T. Colonius, B. J. McKeon, O. T. Schmidt, S. Gordeyev, V. Theofilis, and L. S. Ukeiley, Modal analysis of fluid flows: An overview, AIAA J. 55, 4013 (2017).
  2. K. Taira, M. S. Hemati, S. L. Brunton, Y. Sun, K. Duraisamy, S. Bagheri, S. T. M. Dawson, and C.-A. Yeh, Modal analysis of fluid flows: Applications and outlook, AIAA J. 58, 998 (2020).
  3. T. Saxton-Fox, A. Lozano-Durán, and B. J. McKeon, Amplitude and wall-normal distance variation of small scales in turbulent boundary layers, Phys. Rev. Fluids 7, 014606 (2022).
  4. M. R. Jones, E. Kanso, and M. Luhar, Connections between propulsive efficiency and wake structure via modal decomposition, J. Fluid Mech. 988, A35 (2024).
  5. M. A. Green, C. W. Rowley, and G. Haller, Detection of Lagrangian coherent structures in three-dimensional turbulence, J. Fluid Mech. 572, 111 (2007).
  6. G. Haller, Lagrangian coherent structures, Annu. Rev. Fluid Mech. 47, 137 (2015).
  7. S. L. Brunton and B. R. Noack, Closed-loop turbulence control: Progress and challenges, Appl. Mech. Rev. 67, 050801 (2015).
  8. S. C. Shadden, F. Lekien, and J. E. Marsden, Definition and properties of Lagrangian coherent structures from finite-time Lyapunov exponents in two-dimensional aperiodic flows, Physica D 212, 271 (2005).
  9. M. A. Green, C. W. Rowley, and A. J. Smits, The unsteady three-dimensional wake produced by a trapezoidal pitching panel, J. Fluid Mech. 685, 117 (2011).
  10. T. MacMillan and N. Ouellette, Lagrangian scale decomposition via the graph Fourier transform, Phys. Rev. Fluids 7, 124401 (2022).
  11. X. Xie, P. J. Nolan, S. D. Ross, C. Mou, and T. Iliescu, Lagrangian reduced order modeling using finite time Lyapunov exponents, Fluids 5, 189 (2020).
  12. B. Kaszás and G. Haller, Universal upper estimate for prediction errors under moderate model uncertainty, Chaos 30, 113144 (2020).
  13. J. N. Kutz, S. L. Brunton, B. W. Brunton, and J. L. Proctor, Dynamic Mode Decomposition: Data-Driven Modeling of Complex Systems (Society for Industrial and Applied Mathematics, Philadelphia, 2016).
  14. J. Graham, K. Kanov, X. I. A. Yang, M. Lee, N. Malaya, C. C. Lalescu, R. Burns, G. Eyink, A. Szalay, R. D. Moser, and C. Meneveau, A web services accessible database of turbulent channel flow and its use for testing a new integral wall model for LES, J. Turbul. 17, 181 (2016).
  15. A. Towne, O. T. Schmidt, and T. Colonius, Spectral proper orthogonal decomposition and its relationship to dynamic mode decomposition and resolvent analysis, J. Fluid Mech. 847, 821 (2018).
  16. C. W. Rowley and S. T. M. Dawson, Model reduction for flow analysis and control, Annu. Rev. Fluid Mech. 49, 387 (2017).
  17. B. Herrmann, P. J. Baddoo, R. Semaan, S. L. Brunton, and B. J. McKeon, Data-driven resolvent analysis, J. Fluid Mech. 918, A10 (2021).
  18. V. Rom-Kedar, A. Leonard, and S. Wiggins, An analytical study of transport, mixing and chaos in an unsteady vortical flow, J. Fluid Mech. 214, 347 (1990).
  19. G. Berkooz, P. Holmes, and J. L. Lumley, The proper orthogonal decomposition in the analysis of turbulent flows, Annu. Rev. Fluid Mech. 25, 539 (1993).
  20. P. J. Schmid, Dynamic mode decomposition of numerical and experimental data, J. Fluid Mech. 656, 5 (2010).
  21. M. P. Rockwood, T. Loiselle, and M. A. Green, Practical concerns of implementing a finite-time Lyapunov exponent analysis with under-resolved data, Exp. Fluids 60, 74 (2019).
  22. G. I. Taylor, The spectrum of turbulence, Proc. R. Soc. London Ser. A 164, 476 (1938).
  23. M. Boudina, F. P. Gosselin, and S. Étienne, Vortex-induced vibrations: A soft coral feeding strategy? J. Fluid Mech. 916, A50 (2021).
  24. S. Étienne, A. Garon, and D. Pelletier, Perspective on the geometric conservation law and finite element methods for ALE simulations of incompressible flow, J. Comput. Phys. 228, 2313 (2009).
  25. B. R. Noack, K. Afanasiev, M. Morzyński, G. Tadmor, and F. Thiele, A hierarchy of low-dimensional models for the transient and post-transient cylinder wake, J. Fluid Mech. 497, 335 (2003).
  26. T. Askham and J. N. Kutz, Variable projection methods for an optimized dynamic mode decomposition, SIAM J. Appl. Dyn. Syst. 17, 380 (2018).
  27. D. B. Quinn, G. V. Lauder, and A. J. Smits, Maximizing the efficiency of a flexible propulsor using experimental optimization, J. Fluid Mech. 767, 430 (2015).
  28. D. Lentink, F. T. Muijres, F. J. Donker-Duyvis, and J. L. van Leeuwen, Vortex-wake interactions of a flapping foil that models animal swimming and flight, J. Exp. Biol. 211, 267 (2008).
  29. A. Towne, S. T. M. Dawson, G. A. Brès, A. Lozano-Durán, T. Saxton-Fox, A. Parthasarathy, A. R. Jones, H. Biler, C.-A. Yeh, H. D. Patel, and K. Taira, A database for reduced-complexity modeling of fluid flows, AIAA J. 61, 2867 (2023).
  30. K. K. Chen, J. H. Tu, and C. W. Rowley, Variants of dynamic mode decomposition: Boundary condition, Koopman, and Fourier analyses, J. Nonlinear Sci. 22, 887 (2012).
  31. K. C. Kim and R. J. Adrian, Very large-scale motion in the outer layer, Phys. Fluids 11, 417 (1999).
  32. J. P. Monty, N. Hutchins, H. C. H. Ng, I. Marusic, and M. S. Chong, A comparison of turbulent pipe, channel and boundary layer flows, J. Fluid Mech. 632, 431 (2009).
  33. A. J. Smits, B. J. McKeon, and I. Marusic, High–Reynolds number wall turbulence, Annu. Rev. Fluid Mech. 43, 353 (2011).
  34. O. T. Schmidt, Bispectral mode decomposition of nonlinear flows, Nonlinear Dyn. 102, 2479 (2020).
  35. J. J. Riley, How does turbulence mix a stratified fluid? J. Fluid Mech. 952, F1 (2022).
  36. V. K. Chinta, C.-Y. Ohh, G. Spedding, and M. Luhar, Regime identification for stratified wakes from limited measurements: A library-based sparse regression formulation, Phys. Rev. Fluids 7, 033803 (2022).
  37. C.-Y. Ohh and G. R. Spedding, Wake identification of stratified flows using dynamic mode decomposition, Phys. Rev. Fluids 7, 024801 (2022).
  38. S. L. Brunton and C. W. Rowley, Fast computation of finite-time Lyapunov exponent fields for unsteady flows, Chaos 20, 017503 (2010).
  39. matlab code, https://github.com/MorganJones64/modal-trajectory-uncertainty
