Impact of saturation edge and breakthrough effects on colloid distribution during slow drying in a thin porous medium

Marc Prat1, Pierluigi Arnelli2, Michel Quintard1, and Joel Pauchet2

PDF

Phys. Rev. Fluids 11, 074301 – Published 13 July, 2026

DOI: https://doi.org/10.1103/kc34-s23s

Abstract

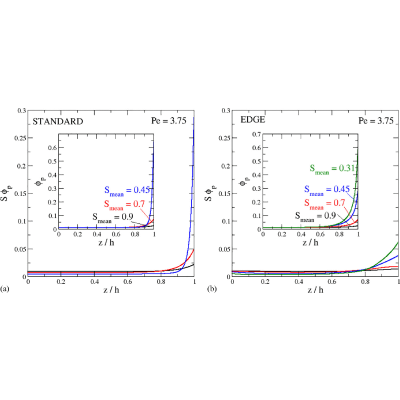

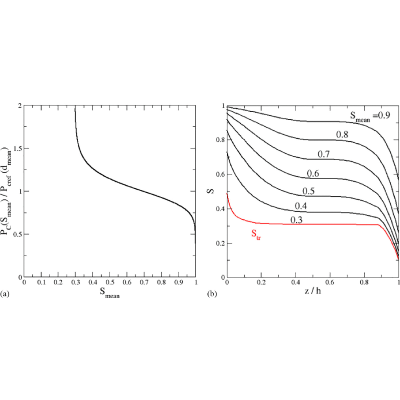

Slow drying of a thin porous medium containing a colloidal dispersion is studied from numerical simulations developed within the framework of the continuum approach to porous media. The modeling considers two effects, referred to as the edge and breakthrough effects, affecting the saturation profiles during slow drying in thin systems. These effects result in different saturations compared to the bulk saturation in the vicinity of the porous medium limiting surfaces, lower near the top surface exposed to evaporation, and larger near the solid wall at the porous medium bottom. The impact of both effects on the colloid distribution over the thickness during drying is studied, and comparisons are performed with the standard case not considering these effects. Simulations indicate markedly more uniform colloid spatial distributions as the result of both effects compared to the predictions of the standard model. This holds in the presence of colloid adsorption phenomena on the pore wall and when adsorption is neglected.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (39)

  1. A. S. Mujumdar, Handbook of Industrial Drying, 4th ed. (CRC, Boca Raton, 2015).
  2. G. W. Scherer, Theory of drying, J. Am. Ceram. Soc. 73, 3 (1990).
  3. Edited by R. Wu and M. Prat, in Mass Transfer Driven Evaporation from Capillary Porous Media (CRC, Boca Raton, 2022).
  4. E. Keita, P. Faure, S. Rodts, and P. Coussot, MRI evidence for a receding-front effect in drying porous media, Phys. Rev. E 87, 062303 (2013).
  5. E. Keita, Particle deposition in drying porous media, Materials 14, 5120 (2021).
  6. F. Qin, L. Fei, J. Zhao, Q. Kang, D. Derome, and J. Carmeliet, Lattice Boltzmann modelling of colloidal suspensions drying in porous media accounting for local nanoparticle effects, J. Fluid Mech. 963, A26 (2023).
  7. E. Ghiringhelli, M. Marcoux, S. Geoffroy, and M. Prat, Evaporation in the presence of particles in a model porous medium: Impact of corner liquid films, InterPore Journal 1, ipj260424 (2024).
  8. M. F. Mathias, J. Roth, J. Fleming, and W. Lehnert, Diffusion media materials and characterisation. Handbook of Fuel Cells—Fundamentals, Technology and Applications, 3 (Part 1) (Wiley, Chichester, England, 2003), p. 517.
  9. T. Iwamura, H. Ito, S. Someya, T. Munakata, A. Nakano, Y. Heo, Masayoshi Ishida, Hironori Nakajima, and T. Kitahara, Effect of through-plane polytetrafluoroethylene distribution in gas diffusion layers on performance of proton exchange membrane fuel cells, J. Power Sources 306, 289 (2016).
  10. J. Pauchet, M. Prat, P. Schott, and S. P. Kuttanikkad, Performance loss of proton exchange membrane fuel cell due to hydrophobicity loss in gas diffusion layer: Analysis by multiscale approach combining pore network and performance modelling, Int. J. Hydrogen Energy 37, 1628 (2012).
  11. Z. Niu, Z. Bao, J. Wu, Y. Wang, and K. Jiao, Two-phase flow in the mixed-wettability gas diffusion layer of proton exchange membrane fuel cells, Appl. Energy 232, 443 (2018).
  12. P. Carrère and M. Prat, Impact of non-uniform wettability in the condensation and condensation-liquid water intrusion regimes in the cathode gas diffusion layer of proton exchange membrane fuel cell, Int. J. Therm. Sci. 145, 106045 (2019).
  13. M. Eikerling, A. A. Kornyshev, and A. R. Kucernak, Water in polymer electrolyte fuel cells: Friend or foe? Phys. Today 59(10), 38 (2006).
  14. M. Prat and T. Agaësse, Thin porous media, Handbook of Porous Media (CRC Press, Boca, Raton, 2015), p. 89.
  15. M. Rebai and M. Prat, Scale effect and two-phase flow in a thin hydrophobic porous layer. Application to water transport in gas diffusion layers of proton exchange membrane fuel cells, J. Power Sources 192, 534 (2009).
  16. Y. Le Bray and M. Prat, Three-dimensional pore network simulation of drying in capillary porous media, Int. J. Heat Mass Transfer 42, 4207 (1999).
  17. M. Talbi and M. Prat, Coupling between internal and external mass transfer during stage-1 evaporation in capillary porous media: Interfacial resistance approach, Phys. Rev. E 104, 055102 (2021).
  18. Y. Bachmat and J. Bear, Macroscopic modelling of transport phenomena in porous media. 1: The continuum approach, Transp. Porous Media 1, 213 (1986).
  19. S. Whitaker, Simultaneous heat, mass, and momentum transfer in porous media: A theory of drying, in Advances in Heat Transfer (Elsevier, New York, 1977), Vol. 13, pp. 119–203.
  20. L. J. Durlofsky, R. C. Jones, and W. J. Milliken, A nonuniform coarsening approach for the scale-up of displacement processes in heterogeneous porous media, Adv. Water Res. 20, 335 (1997).
  21. M. Kfoury, R. Ababou, B. Noetinger, and M. Quintard, Upscaling fractured heterogeneous media: Permeability and mass exchange coefficient, J. Appl. Mech. 73, 41 (2006).
  22. J. Van Brakel, in Advances in Drying, edited by A. S. Mujumdar (Hemisphere, New York, 1980), Vol. 1, p. 217.
  23. M. Prat, Recent advances in pore-scale models for drying of porous media, Chem. Eng. J. 86, 153 (2022).
  24. P. Lehmann, S. Assouline, and D. Or, Characteristic lengths affecting evaporative drying of porous media, Phys. Rev. E 77, 056309 (2008).
  25. M. Prat, Isothermal drying on non-hygroscopic capillary-porous materials as an invasion percolation process, Int. J. Multiphase Flow 21, 875 (1995).
  26. F. Hidri, N. Sghaier, H. Eloukabi, M. Prat, and S. B. Nasrallah, Porous medium coffee ring effect and other factors affecting the first crystallisation time of sodium chloride at the surface of a drying porous medium, Phys. Fluids 25, 127101 (2013).
  27. T. Cheng and J. E. Saiers, Mobilization and transport of in situ colloids during drainage and imbibition of partially saturated sediments, Water Resour. Res. 45, W08414 (2009).
  28. C. Wang, R. Wang, Z. Huo, E. Xie, and H. E. Dahlke, Colloid transport through soil and other porous media under transient flow conditions—A review, Wiley Interdisciplinary Reviews: Water 7, e1439 (2020).
  29. P. Moldrup, T. Olesen, T. Komatsu, P. Schjønning, and D. E. Rolston, Tortuosity, diffusivity, and permeability in the soil liquid and gaseous phases, Soil Sci. Soc. Am. J. 65, 613 (2001).
  30. H. P. Huinink, L. Pel, and M. A. J. Michels, Structure and transport properties of liquid clusters in a drying porous medium, Phys. Rev. E 68, 056114 (2003).
  31. A. Merlin, J. B. Salmon, and J. Leng, Microfluidic-assisted growth of colloidal crystals, Soft Matter 8, 3526 (2012).
  32. Y. Wang, Y. Li, J. D. Fortner, J. B. Hughes, L. M. Abriola, and K. D. Pennell, Transport and retention of nanoscale C60 aggregates in water-saturated porous media, Environ. Sci. Technol. 42, 3588 (2008).
  33. T. Zhang, M. Murphy, H. Yu, C. Huh, and S. L. Bryant, Mechanistic model for nanoparticle retention in porous media, Transp. Porous Media 115, 387 (2016).
  34. S. Patankar, Numerical Heat Transfer and Fluid Flow (CRC Press, Boca Raton, 2018).
  35. H. P. Huinink, L. Pel, and M. A. J. Michels, How ions distribute in a drying porous medium: A simple model, Phys. Fluids 14, 1389 (2002).
  36. S. Assouline, K. Narkis, R. Gherabli, P. Lefort, and M. Prat, Analysis of the impact of surface layer properties on evaporation from porous systems using column experiments and modified definition of characteristic length, Water Resour. Res. 50, 3933 (2014).
  37. N. Sghaier, M. Prat, and S. B. Nasrallah, On ions transport during drying in a porous medium, Transp. Porous Media 67, 243 (2007).
  38. D. Stauffer and A. Aharony, Introduction to Percolation Theory (Taylor & Francis, London, 1992).
  39. M. Talbi and M. Prat, Percolating and nonpercolating liquid phase continuum model of drying in capillary porous media with application to solute transport in the very low Péclet number limit, Phys. Rev. Fluids 7, 014306 (2022).
