Caustics of finitely dense inertial particles

C. Rajarshi* and Rama Govindarajan†

  • *Contact author: rajarshic.edu@gmail.com
  • †Contact author: rama@icts.res.in
PDF

Phys. Rev. Fluids 11, 074304 – Published 29 July, 2026

DOI: https://doi.org/10.1103/fwkk-s3w4

Abstract

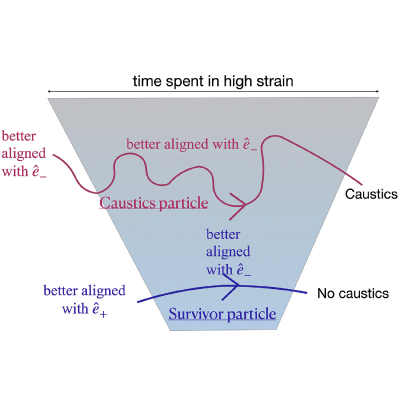

Estimating collision rates is of immense importance in particle-laden flows. An economical way of doing this is to directly identify incidences of caustics, or extreme clustering, by tracking particle velocity gradients in the neighborhoods of individual particles. The objective of this work is twofold. (i) We find conditions under which caustics form in point-vortex flow and in two-dimensional turbulence. While caustics are known to form in regions of strain, we show that the velocity alignment with strain directions is key. Particles must remain in compressional strain throughout the process to form caustics, whereas survivor particles, which visit high strain but do not form caustics, briefly go through extensional strain during the early part of the process. This enables survivor particles to attain significantly straighter paths and to move faster, whereas caustics particles follow paths of high curvature and move slower. As a result, caustics particles stay longer in high-strain regions than survivors. (ii) We ask about the effect of finite particle density, where the particle is denser than the background fluid. We show that finite-density particles need to sample stronger background strain than infinite-density ones to trigger caustics, but our other findings are universal across particle density.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (49)

  1. C. T. Crowe, R. A. Gore, and T. R. Troutt, Particle dispersion by coherent structures in free shear flow, Part. Sci. Technol. 3, 149 (1985).
  2. E. Balkovsky, G. Falkovich, and A. Fouxon, Intermittent distribution of inertial particles in turbulent flows, Phys. Rev. Lett. 86, 2790 (2001).
  3. E. Calzavarini, M. Cencini, D. Lohse, and F. Toschi, Quantifying turbulence-induced segregation of inertial particles, Phys. Rev. Lett. 101, 084504 (2008).
  4. G. Falkovich, A. Fouxon, and M. G. Stepanov, Acceleration of rain initiation by cloud turbulence, Nature (London) 419, 151 (2002).
  5. R. A. Shaw, Particle-turbulence interactions in atmospheric clouds, Annu. Rev. Fluid Mech. 35, 183 (2003).
  6. M. Wilkinson, B. Mehlig, and V. Bezuglyy, Caustic activation of rain showers, Phys. Rev. Lett. 97, 048501 (2006).
  7. A. Pumir and M. Wilkinson, Collisional aggregation due to turbulence, Annu. Rev. Condens. Matter Phys. 7, 141 (2016).
  8. C. Güttler, J. Blum, A. Zsom, C. W. Ormel, and C. P. Dullemond, The outcome of protoplanetary dust growth: Pebbles, boulders, or planetesimals? I. Mapping the zoo of laboratory collision experiments, Astron. Astrophys. 513, A56 (2010).
  9. R. Schräpler and J. Blum, The physics of protoplanetesimal dust agglomerates. VI. Erosion of large aggregates as a source of micrometer-sized particles, Astrophys. J. 734, 108 (2011).
  10. K. Wada, H. Tanaka, S. Okuzumi, H. Kobayashi, T. Suyama, H. Kimura, and T. Yamamoto, Growth efficiency of dust aggregates through collisions with high mass ratios, Astron. Astrophys. 559, A62 (2013).
  11. T. Birnstiel, Dust growth and evolution in protoplanetary disks, Annu. Rev. Astron. Astrophys. 62, 157 (2024).
  12. J. Meibohm, V. Pandey, A. Bhatnagar, K. Gustavsson, D. Mitra, P. Perlekar, and B. Mehlig, Paths to caustic formation in turbulent aerosols, Phys. Rev. Fluids 6, L062302 (2021).
  13. G. Falkovich and A. Pumir, Sling effect in collisions of water droplets in turbulent clouds, J. Atmos. Sci. 64, 4497 (2007).
  14. A. Bhatnagar, V. Pandey, P. Perlekar, and D. Mitra, Rate of formation of caustics in heavy particles advected by turbulence, Philos. Trans. R. Soc. A 380, 20210086 (2022).
  15. R. Barta and J. Vollmer, Caustics in turbulent aerosols: An excitable system approach, J. Fluid Mech. 949, A36 (2022).
  16. C. Meneveau, Lagrangian dynamics and models of the velocity gradient tensor in turbulent flows, Annu. Rev. Fluid Mech. 43, 219 (2011).
  17. J. R. Picardo, L. Agasthya, R. Govindarajan, and S. S. Ray, Flow structures govern particle collisions in turbulence, Phys. Rev. Fluids 4, 032601(R) (2019).
  18. J. Meibohm, K. Gustavsson, and B. Mehlig, Caustics in turbulent aerosols form along the Vieillefosse line at weak particle inertia, Phys. Rev. Fluids 8, 024305 (2023).
  19. J. Meibohm, L. Sundberg, B. Mehlig, and K. Gustavsson, Caustic formation in a non-Gaussian model for turbulent aerosols, Phys. Rev. Fluids 9, 024302 (2024).
  20. T. Bätge, I. Fouxon, and M. Wilczek, Quantitative prediction of sling events in turbulence at high Reynolds numbers, Phys. Rev. Lett. 131, 054001 (2023).
  21. M. R. Maxey and J. J. Riley, Equation of motion for a small rigid sphere in a nonuniform flow, Phys. Fluids 26, 883 (1983).
  22. R. Gatignol, The Faxén formulae for a rigid particle in an unsteady non-uniform Stokes flow, J. Mec. Theor. Appl. 2, 143 (1983).
  23. R. Volk, E. Calzavarini, G. Verhille, D. Lohse, N. Mordant, J.-F. Pinton, and F. Toschi, Acceleration of heavy and light particles in turbulence: Comparison between experiments and direct numerical simulations, Phys. D 237, 2084 (2008).
  24. N. M. Qureshi, U. Arrieta, C. Baudet, A. Cartellier, Y. Gagne, and M. Bourgoin, Acceleration statistics of inertial particles in turbulent flow, Eur. Phys. J. B 66, 531 (2008).
  25. L. Fiabane, R. Zimmermann, R. Volk, J.-F. Pinton, and M. Bourgoin, Clustering of finite-size particles in turbulence, Phys. Rev. E 86, 035301(R) (2012).
  26. E. Karchniwy, A. Klimanek, and N. E. L. Haugen, The effect of turbulence on mass transfer rates between inertial polydisperse particles and fluid, J. Fluid Mech. 874, 1147 (2019).
  27. A. J. Petersen, L. Baker, and F. Coletti, Experimental study of inertial particles clustering and settling in homogeneous turbulence, J. Fluid Mech. 864, 925 (2019).
  28. Y. Motoori and S. Goto, Multiscale clustering of heavy and light small particles in turbulent channel flow at high Reynolds numbers, Int. J. Heat Fluid Flow 102, 109166 (2023).
  29. E. Calzavarini, R. Volk, M. Bourgoin, E. Leveque, J.-F. Pinton, and F. Toschi, Acceleration statistics of finite-sized particles in turbulent flow: The role of Faxén forces, J. Fluid Mech. 630, 179 (2009).
  30. V. Mathai, D. Lohse, and C. Sun, Bubbly and buoyant particle–laden turbulent flows, Annu. Rev. Condens. Matter Phys. 11, 529 (2020).
  31. I. M. Mazzitelli, D. Lohse, and F. Toschi, The effect of microbubbles on developed turbulence, Phys. Fluids 15, L5 (2003).
  32. S. Olivieri, F. Picano, G. Sardina, D. Iudicone, and L. Brandt, The effect of the Basset history force on particle clustering in homogeneous and isotropic turbulence, Phys. Fluids 26, 041704 (2014).
  33. A. Daitche, On the role of the history force for inertial particles in turbulence, J. Fluid Mech. 782, 567 (2015).
  34. J. Ferry and S. Balachandar, A fast Eulerian method for disperse two-phase flow, Int. J. Multiphase Flow 27, 1199 (2001).
  35. S. Kapoor, D. Jaganathan, and R. Govindarajan, Trapping and extreme clustering of finitely dense inertial particles near a rotating vortex pair, J. Fluid Mech. 996, A44 (2024).
  36. M. S. Chong, A. E. Perry, and B. J. Cantwell, A general classification of three-dimensional flow fields, Phys. Fluids 2, 765 (1990).
  37. S. Ravichandran and R. Govindarajan, Caustics and clustering in the vicinity of a vortex, Phys. Fluids 27, 033305 (2015).
  38. S. Ravichandran and R. Govindarajan, Waltz of tiny droplets and the flow they live in, Phys. Rev. Fluids 7, 110512 (2022).
  39. Y. Ling, M. Parmar, and S. Balachandar, A scaling analysis of added-mass and history forces and their coupling in dispersed multiphase flows, Int. J. Multiphase Flow 57, 102 (2013).
  40. P. Deepu, S. Ravichandran, and R. Govindarajan, Caustics-induced coalescence of small droplets near a vortex, Phys. Rev. Fluids 2, 024305 (2017).
  41. V. Pandey, P. Perlekar, and D. Mitra, Clustering and energy spectra in two-dimensional dusty gas turbulence, Phys. Rev. E 100, 013114 (2019).
  42. M. A. T. van Hinsberg, J. H. M. Thije Boonkkamp, F. Toschi, and H. J. H. Clercx, On the efficiency and accuracy of interpolation methods for spectral codes, SIAM J. Sci. Comput. 34, B479 (2012).
  43. E. Calzavarini, M. Kerscher, D. Lohse, and F. Toschi, Dimensionality and morphology of particle and bubble clusters in turbulent flow, J. Fluid Mech. 607, 13 (2008).
  44. Y. Zhang and H. Xu, Caustics of inertial particles observed along Lagrangian particle trajectories, J. Fluid Mech. 1014, A13 (2025).
  45. J. Kronborg and J. Hoffman, The triple decomposition of the velocity gradient tensor as a standardized real Schur form, Phys. Fluids 35, 031703 (2023).
  46. C. Rajarshi, Caustics of finitely dense particles, Zenodo, 2026, doi: 10.5281/zenodo.18172575.
  47. Wm. T. Ashurst, A. R. Kerstein, R. M. Kerr, and C. H. Gibson, Alignment of vorticity and scalar gradient with strain rate in simulated Navier–Stokes turbulence, Phys. Fluids 30, 2343 (1987).
  48. D. Buaria and A. Pumir, Vorticity-strain rate dynamics and the smallest scales of turbulence, Phys. Rev. Lett. 128, 094501 (2022).
  49. https://github.com/Rajarshi-prime/2D_Caustics.
