Effect of centerline separation on a vortex dominated wake

Rhylan A. Huss* and Farrukh S. Alvi

  • Department of Mechanical and Aerospace Engineering, FAMU-FSU College of Engineering, Florida State University, Tallahassee, Florida 32310, USA

  • *Contact author: rhylanhuss@gmail.com
PDF

Phys. Rev. Fluids 11, 074702 – Published 28 July, 2026

DOI: https://doi.org/10.1103/bn64-wtlz

Abstract

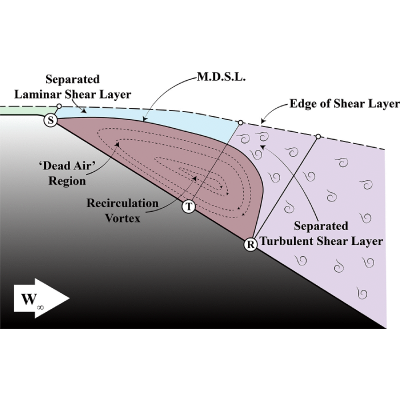

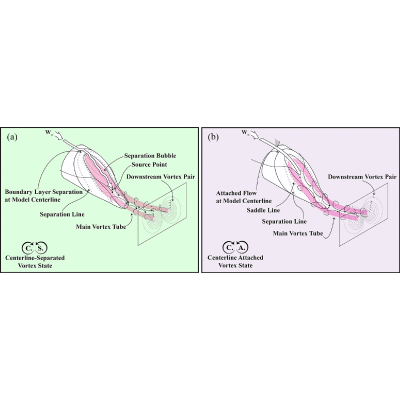

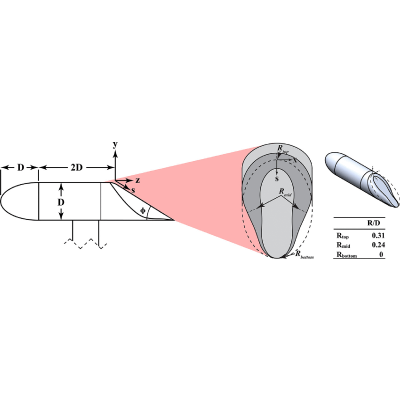

An experimental investigation was conducted on the wake of a rounded-edge slanted afterbody over a Reynolds number range of ReD=40K to ReD=200K. High-speed particle image velocimetry (PIV), surface pressure measurements, and high-accuracy drag measurements provided substantial insight into this complex flow. In particular, they revealed an undocumented wake-state transition from a previously observed centerline-separated (CS) vortex state to a new centerline-attached (CA) vortex state between ReD≈130K and 180K. This wake transition was accompanied by a significant drag reduction and the transition of the upstream boundary layer from laminar to turbulent. The CS vortex state shared characteristics with laminar separation bubbles and produced spatially diffuse vortices that exhibited two distinct instabilities: a low-frequency flapping instability that governed the vortex dynamics and a high-frequency short-wave instability that drove shear layer breakdown and reattachment. The reduction in recirculation length was attributed to diminished viscous damping at higher Reynolds numbers, enabling earlier shear layer transition. In contrast, the CA state exhibited neither frequency signature and lacked a separated region, indicating a fundamentally different underlying dynamical mechanism. The vortices in the CA state were highly structured and spatially coherent, further distinguishing them from the diffuse and unsteady vortices observed in the CS state. These results provide new physical insight into the interplay between upstream boundary-layer transition, separated shear layer dynamics, wake topology, and their collective effect on global aerodynamics in terms of drag. Together, they provide a more comprehensive and unified understanding of the wake states and their transition between CS and CA for bluff body wakes.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (32)

  1. X. Xia and P. Bearman, An experimental investigation of the wake of an axisymmetric body with a slanted base, Aeronaut. Q. 34, 24 (1983).
  2. C. P. Britcher and C. W. Alcorn, Interference-free measurements of the subsonic aerodynamics of slanted-base ogive cylinders, AIAA J. 29, 520 (1991).
  3. D. S. Bulathsinghala, R. Jackson, Z. Wang, and I. Gursul, Afterbody vortices of axisymmetric cylinders with a slanted base, Exp. Fluids 58, 60 (2017).
  4. D. Bulathsinghala, Z. Wang, and I. Gursul, Modified near-wakes of axisymmetric cylinders with slanted base, Aerosp. Sci. Technol. 86, 351 (2019).
  5. D. J. Garmann and M. R. Visbal, High-fidelity simulations of afterbody vortex flows, AIAA J. 57, 3980 (2019).
  6. R. Ranjan and D. Gaitonde, Hysteresis in slanted-base-cylinder afterbody flows, Aerosp. Sci. Technol. 106, 106138 (2020).
  7. F. Zigunov, P. Sellappan, and F. Alvi, Reynolds number and slant angle effects on the flow over a slanted cylinder afterbody, J. Fluid Mech. 893, A11 (2020).
  8. K. Tashiro, S. Yokota, F. Zigunov, Y. Ozawa, K. Asai, and T. Nonomura, Slanted cylinder afterbody aerodynamics measured by 0.3-m magnetic suspension and balance system with six-degrees-of-freedom control, Exp. Fluids 63, 119 (2022).
  9. R. A. Huss, F. Zigunov, and F. Alvi, Flow topology of a slanted cylinder with rounded-edges under compressible conditions, AIAA J. 61, 5446 (2023).
  10. R. Huss, F. Zigunov, and F. Alvi, Compressibility effects and vorticity structure of a vortex-dominated wake using volumetric reconstruction, Exp. Fluids 66, 167 (2025).
  11. X. Chen, S. Zhong, O. Ozer, and A. Weightman, Control of afterbody vortices from a slanted-base cylinder using sweeping jets, Phys. Fluids 34, 075115 (2022).
  12. A. Wortman, Reduction of fuselage form drag by vortex flows, J. Aircr. 36, 501 (1999).
  13. T. Morel, Effect of base slant on flow in the near wake of an axisymmetric cylinder, Aeronaut. Q. 31, 132 (1980).
  14. F. Zigunov, P. Sellappan, and F. Alvi, Hysteretic flow regime switching in the wake of a cylinder with a slanted afterbody, Exp. Fluids 63, 80 (2022).
  15. F. Zigunov, P. Sellappan, and F. Alvi, Compressibility effects on the wake of a cylinder with a slanted afterbody, AIAA SciTech Forums 1, 24 (2020).
  16. Y. Bury, T. Jardin, and A. Klöckner, Experimental investigation of the vortical activity in the close wake of a simplified military transport aircraft, Exp. Fluids 54, 1524 (2013).
  17. J. Wooten and T. Yechout, Wind tunnel evaluation of C-130 drag reduction strakes and in-flight loading prediction, in 46th AIAA Aerospace Sciences Meeting and Exhibit (AIAA, 2008), p. 348.
  18. G. Rossitto, C. Sicot, V. Ferrand, J. Borée, and F. Harambat, Influence of afterbody rounding on the pressure distribution over a fastback vehicle, Exp. Fluids 57, 43 (2016).
  19. A. Thacker, S. Aubrun, A. Leroy, and P. Devinant, Effects of suppressing the 3D separation on the rear slant on the flow structures around an Ahmed body, J. Wind Eng. Ind. Aerodyn. 107-108, 237 (2012).
  20. C. Prasad, D. J. Garmann, and D. V. Gaitonde, Edge curvature effects on the wake of a simulated transport aircraft fuselage, in AIAA SCITECH 2023 Forum (AIAA, 2023), p. 1980.
  21. F. Zigunov, Detailed flow field study of an upswept cylinder wake and experimental optimization using active flow control, Ph.D. thesis, The Florida State University, 2020.
  22. K. Tashiro, S. Yokota, K. Asai, and T. Nonomura, Experimental investigation of strut effects on slanted cylinder afterbody aerodynamics using magnetic suspension and balance system, Exp. Therm. Fluid Sci. 148, 110952 (2023).
  23. J. B. Barlow, W. H. Rae, and A. Pope, Low-Speed Wind Tunnel Testing (John Wiley & Sons, New York, 1999).
  24. R. A. Huss, F. Zigunov, and F. S. Alvi, Unsteady pressure dynamics of a slanted cylinder with rounded-edges in compressible flow, in AIAA SCITECH 2024 Forum (AIAA, 2024), p. 72.
  25. B. Wieneke, Stereo-PIV using self-calibration on particle images, Exp. Fluids 39, 267 (2005).
  26. H. Schlichting and J. Kestin, Boundary Layer Theory (Springer, 1961), Vol. 121.
  27. H. P. Horton, Laminar separation bubbles in two and three dimensional incompressible flow, Ph.D. thesis, Queen Mary University of London, 1968.
  28. M. Gaster, The Structure and Behaviour of Laminar Separation Bubbles (Citeseer, 1967).
  29. L. Howarth, Concerning the effect of compressibility on laminar boundary layers and their separation, Proc. R. Soc. London A 194, 16 (1948).
  30. A. Dovgal, V. Kozlov, and A. Michalke, Laminar boundary layer separation: Instability and associated phenomena, Prog. Aerosp. Sci. 30, 61 (1994).
  31. O. T. Schmidt and A. Towne, An efficient streaming algorithm for spectral proper orthogonal decomposition, Comput. Phys. Commun. 237, 98 (2019).
  32. L. Graftieaux, M. Michard, and N. Grosjean, Combining PIV, POD and vortex identification algorithms for the study of unsteady turbulent swirling flows, Meas. Sci. Technol. 12, 1422 (2001).
