Magnetic field reversals in numerical simulations of the von Kármán sodium experiment

Rémi Bousquet1, Yannick Ponty2, Victor Botez1, Nicolas Plihon3, and Caroline Nore1

PDF

Phys. Rev. Fluids 11, 063703 – Published 18 June, 2026

DOI: https://doi.org/10.1103/9tx2-1m13

Abstract

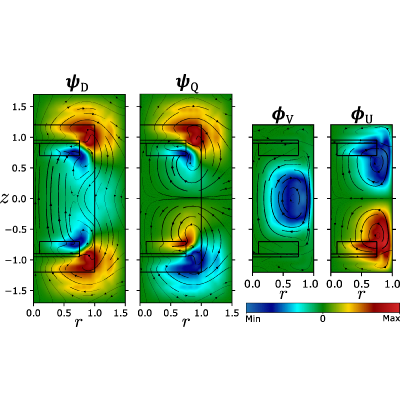

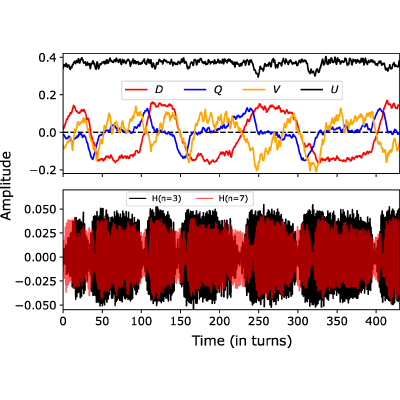

Numerical simulations and proper orthogonal decomposition are used to identify the fundamental mechanism of magnetic field reversals in the von Kármán sodium experiment with ferromagnetic impellers close to contrarotation. Two numerical solvers are used and agree well on the resulting mechanism. The reversal dynamics rely on the interaction of four dominant axisymmetric modes: the magnetic dipole mode D and quadrupole mode Q, as well as the zonal velocity mode V and the Rπ-symmetric mode U. This hierarchy leads to a reduced-order DQVU Galerkin model derived from the magnetohydrodynamic equations. The model improves upon previous three-variable versions by adding a velocity variable U and related interactions, which are shown to be essential for reproducing the main features of magnetic field dynamics.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (42)

  1. F. Rincon, Dynamo theories, J. Plasma Phys. 85, 205850401 (2019).
  2. S. Tobias, The turbulent dynamo, J. Fluid Mech. 912, P1 (2021).
  3. C. C. Finlay, C. Kloss, and N. Gillet, Core field changes from eleven years of Swarm satellite observations, Phys. Earth Planet. Inter. 368, 107447 (2025).
  4. P. Tzeferacos, A. Rigby, A. F. A. Bott, A. R. Bell, R. Bingham, A. Casner, F. Cattaneo, E. M. Churazov, J. Emig, F. Fiuza, C. B. Forest, J. Foster, C. Graziani, J. Katz, M. Koenig, C.-K. Li, J. Meinecke, R. Petrasso, H.-S. Park, B. A. Remington, et al., Laboratory evidence of dynamo amplification of magnetic fields in a turbulent plasma, Nat. Commun. 9, 591 (2018).
  5. A. F. A. Bott, P. Tzeferacos, L. Chen, C. A. J. Palmer, A. Rigby, A. R. Bell, R. Bingham, A. Birkel, C. Graziani, D. H. Froula, J. Katz, M. Koenig, M. W. Kunz, C. Li, J. Meinecke, F. Miniati, R. Petrasso, H.-S. Park, B. A. Remington, B. Reville, et al., Time-resolved turbulent dynamo in a laser plasma, Proc. Natl. Acad. Sci. USA 118, e2015729118 (2021).
  6. A. F. A. Bott, L. Chen, P. Tzeferacos, C. A. J. Palmer, A. R. Bell, R. Bingham, A. Birkel, D. H. Froula, J. Katz, M. W. Kunz, C.-K. Li, H.-S. Park, R. Petrasso, J. S. Ross, B. Reville, D. Ryu, F. H. Séguin, T. G. White, A. A. Schekochihin, D. Q. Lamb, et al., Insensitivity of a turbulent laser-plasma dynamo to initial conditions, Matter Radiat. Extremes 7, 046901 (2022).
  7. A. Gailitis, O. Lielausis, S. Dement'ev, E. Platacis, A. Cifersons, G. Gerbeth, T. Gundrum, F. Stefani, M. Christen, H. Hänel, and G. Will, Detection of a flow induced magnetic field eigenmode in the Riga dynamo facility, Phys. Rev. Lett. 84, 4365 (2000).
  8. R. Stieglitz and U. Müller, Experimental demonstration of a homogeneous two-scale dynamo, Phys. Fluids 13, 561 (2001).
  9. R. Monchaux, M. Berhanu, M. Bourgoin, M. Moulin, P. Odier, J.-F. Pinton, R. Volk, S. Fauve, N. Mordant, F. Pétrélis, A. Chiffaudel, F. Daviaud, B. Dubrulle, C. Gasquet, L. Marié, and F. Ravelet, Generation of a magnetic field by dynamo action in a turbulent flow of liquid sodium, Phys. Rev. Lett. 98, 044502 (2007).
  10. R. Monchaux, M. Berhanu, S. Aumaître, A. Chiffaudel, F. Daviaud, B. Dubrulle, F. Ravelet, S. Fauve, N. Mordant, F. Pétrélis, M. Bourgoin, P. Odier, J.-F. Pinton, N. Plihon, and R. Volk, The von Kármán Sodium experiment: Turbulent dynamical dynamos, Phys. Fluids 21, 035108 (2009).
  11. F. Ravelet, L. Marié, A. Chiffaudel, and F. Daviaud, Multistability and memory effect in a highly turbulent flow: Experimental evidence for a global bifurcation, Phys. Rev. Lett. 93, 164501 (2004).
  12. P.-P. Cortet, P. Diribarne, R. Monchaux, A. Chiffaudel, F. Daviaud, and B. Dubrulle, Normalized kinetic energy as a hydrodynamical global quantity for inhomogeneous anisotropic turbulence, Phys. Fluids 21, 025104 (2009).
  13. M. Berhanu, R. Monchaux, S. Fauve, N. Mordant, F. Pétrélis, A. Chiffaudel, F. Daviaud, B. Dubrulle, L. Marié, F. Ravelet, M. Bourgoin, P. Odier, J.-F. Pinton, and R. Volk, Magnetic field reversals in an experimental turbulent dynamo, Europhys. Lett. 77, 59001 (2007).
  14. M. Berhanu, G. Verhille, J. Boisson, B. Gallet, C. Gissinger, S. Fauve, N. Mordant, F. Pétrélis, M. Bourgoin, P. Odier, J.-F. Pinton, N. Plihon, S. Aumaître, A. Chiffaudel, F. Daviaud, B. Dubrulle, and C. Pirat, Dynamo regimes and transitions in the VKS experiment, Eur. Phys. J. B 77, 459 (2010).
  15. N. P. Müller, C. Gissinger, and F. Pétrélis, Magnetic reversals in a geodynamo model with a stably–stratified layer, Phys. Earth Planet. Inter. 371, 107502 (2026).
  16. P. Barrère, J. Guilet, B. Gallet, and R. Raynaud, Complex dynamical regimes of the Tayler-Spruit dynamo, arXiv:2601.02182 .
  17. F. Ravelet, A. Chiffaudel, F. Daviaud, and J. Léorat, Toward an experimental von Kármán dynamo: Numerical studies for an optimized design, Phys. Fluids 17, 117104 (2005).
  18. F. Stefani, M. Xu, G. Gerbeth, F. Ravelet, A. Chiffaudel, F. Daviaud, and J. Léorat, Ambivalent effects of added layers on steady kinematic dynamos in cylindrical geometry: Application to the VKS experiment, Eur. J. Mech. B. Fluids 25, 894 (2006).
  19. R. Laguerre, C. Nore, J. Léorat, and J.-L. Guermond, Effects of conductivity jumps in the envelope of a kinematic dynamo flow, Comptes Rendus. Mécanique 334, 593 (2006).
  20. A. Pinter, B. Dubrulle, and F. Daviaud, Kinematic dynamo simulations of von Kármán flows: application to the VKS experiment, Eur. Phys. J. B 74, 165 (2010).
  21. S. Miralles, N. Bonnefoy, M. Bourgoin, P. Odier, J.-F. Pinton, N. Plihon, G. Verhille, J. Boisson, F. Daviaud, and B. Dubrulle, Dynamo threshold detection in the von Kármán sodium experiment, Phys. Rev. E 88, 013002 (2013).
  22. S. Kreuzahler, Y. Ponty, N. Plihon, H. Homann, and R. Grauer, Dynamo enhancement and mode selection triggered by high magnetic permeability, Phys. Rev. Lett. 119, 234501 (2017).
  23. C. Nore, D. Castanon Quiroz, L. Cappanera, and J.-L. Guermond, Numerical simulation of the von Kármán sodium dynamo experiment, J. Fluid Mech. 854, 164 (2018).
  24. R. Laguerre, C. Nore, A. Ribeiro, J. Léorat, J.-L. Guermond, and F. Plunian, Impact of impellers on the axisymmetric magnetic mode in the VKS2 dynamo experiment, Phys. Rev. Lett. 101, 104501 (2008).
  25. A. Giesecke, C. Nore, F. Stefani, G. Gerbeth, J. Léorat, W. Herreman, F. Luddens, and J.-L. Guermond, Influence of high-permeability discs in an axisymmetric model of the Cadarache dynamo experiment, New J. Phys. 14, 053005 (2012).
  26. M. Creff, H. Faller, B. Dubrulle, J.-L. Guermond, and C. Nore, Tracking dynamo mechanisms from local energy transfers: Application to the von Kármán sodium dynamo, Phys. Plasmas 31, 022306 (2024).
  27. V. Botez, R. Bousquet, and C. Nore, Large scale analysis of the von Kármán sodium experiment using proper orthogonal decomposition, Magnetohydrodynamics 61, 13 (2025).
  28. R. Pasquetti, R. Bwemba, and L. Cousin, A pseudo-penalization method for high Reynolds number unsteady flows, Appl. Numer. Math. 58, 946 (2008).
  29. N. Plihon, S. Miralles, M. Bourgoin, and J.-F. Pinton, Stochastic reversal dynamics of two interacting magnetic dipoles: A simple model experiment, Phys. Rev. E 94, 012224 (2016).
  30. B. Gallet and F. Pétrélis, From reversing to hemispherical dynamos, Phys. Rev. E 80, 035302(R) (2009).
  31. B. Gallet, S. Aumaître, J. Boisson, F. Daviaud, B. Dubrulle, N. Bonnefoy, M. Bourgoin, P. Odier, J.-F. Pinton, N. Plihon, G. Verhille, S. Fauve, and F. Pétrélis, Experimental observation of spatially localized dynamo magnetic fields, Phys. Rev. Lett. 108, 144501 (2012).
  32. R. Bousquet, O. Chaffard, M. Creff, D. Lucor, and C. Nore, Large scale analysis of three-dimensional turbulent von Kármán swirling flows, Phys. Fluids 36, 105133 (2024).
  33. F. Pétrélis and S. Fauve, Mechanisms for magnetic field reversals, Philos. Trans. R. Soc. A 368, 1595 (2010).
  34. F. Ravelet, B. Dubrulle, F. Daviaud, and P.-A. Ratié, Kinematic α tensors and dynamo mechanisms in a von Kármán swirling flow, Phys. Rev. Lett. 109, 024503 (2012).
  35. J. Varela, S. Brun, B. Dubrulle, and C. Nore, Role of boundary conditions in helicoidal flow collimation: Consequences for the von Kármán sodium dynamo experiment, Phys. Rev. E 92, 063015 (2015).
  36. C. J. P. Gissinger, A numerical model of the VKS experiment, EPL (Europhysics Letters) 87, 39002 (2009).
  37. C. Gissinger, E. Dormy, and S. Fauve, Morphology of field reversals in turbulent dynamos, EPL (Europhysics Letters) 90, 49001 (2010).
  38. C. Gissinger, A new deterministic model for chaotic reversals, Eur. Phys. J. B 85, 137 (2012).
  39. J.-C. Loiseau and S. L. Brunton, Constrained sparse Galerkin regression, J. Fluid Mech. 838, 42 (2018).
  40. A. Kaptanoglu, B. de Silva, U. Fasel, K. Kaheman, A. Goldschmidt, J. Callaham, C. Delahunt, Z. Nicolaou, K. Champion, J.-C. Loiseau, J. Kutz, and S. Brunton, PySINDy: A comprehensive Python package for robust sparse system identification, J. Open Source Software 7, 3994 (2022).
  41. F. V. Van Breugel, J. N. Kutz, and B. W. Brunton, Numerical differentiation of noisy data: A unifying multi-objective optimization framework, IEEE Access 8, 196865 (2020).
  42. C. Gissinger, Dipole-quadrupole dynamics during magnetic field reversals, Phys. Rev. E 82, 056302 (2010).
