Orientation dynamics of gyrotactic microswimmers in turbulent flows

Suraj Kumar Nayak1,*, Vishwanath Shukla1,†, and Akshay Bhatnagar2,‡

  • *Contact author: surajkumarnayak96@gmail.com
  • Contact author: vishwanath.shukla@phy.iitkgp.ac.in
  • Contact author: akshayphy@gmail.com

Phys. Rev. Fluids 11, 084602 – Published 4 August, 2026

DOI: https://doi.org/10.1103/6yn2-ckfx

Abstract

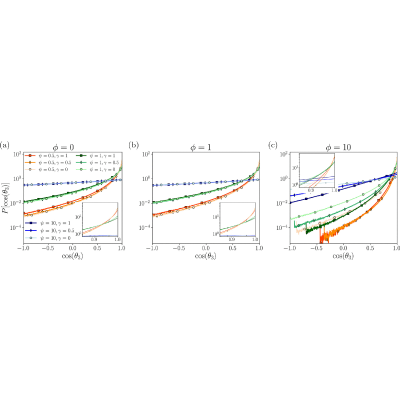

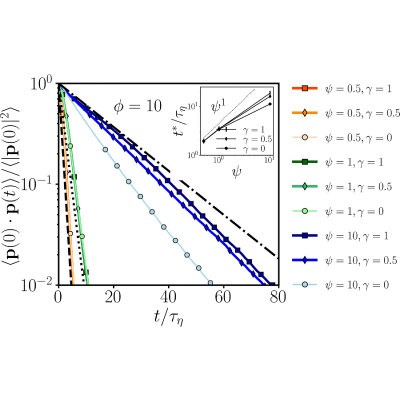

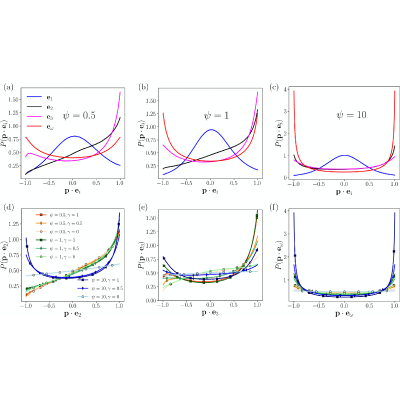

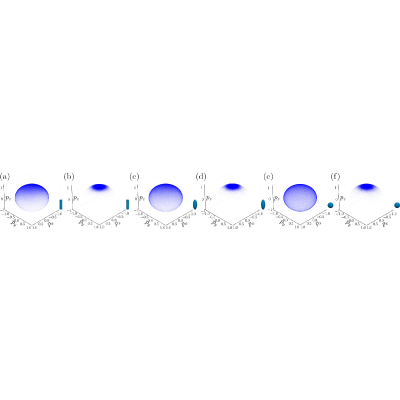

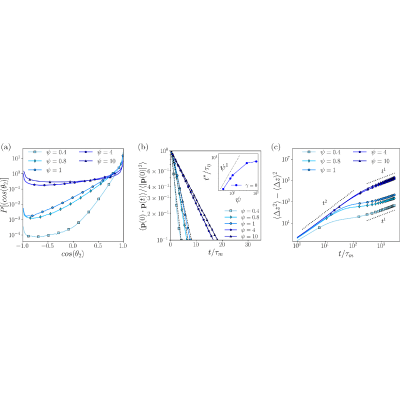

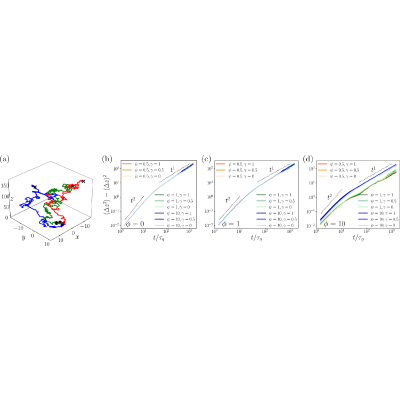

We study the dynamics of gyrotactic microswimmers suspended in homogeneous and isotropic turbulence by using direct numerical simulations. The swimmers are characterized by three nondimensional parameters: their aspect ratio (γ), a dimensionless swimming speed (ϕ), and a dimensionless reorientation time (ψ). Strong gyrotaxis (smaller ψ) promotes vertical alignment of the swimmers, while weak gyrotaxis leads to nearly isotropic orientations. At low swimming numbers, the orientation distribution is largely shape independent with spheres and spheroids showing marginally greater vertical alignment than rods, whereas at higher activity the peaks of the distributions exhibit largely shape-independent behavior and the tails show a clear dependence on particle shape. However, at large ψ rods exhibit a stronger alignment along the vertical. We observe that at small ψ the rod-shaped swimmers respond to shear by aligning with the stretching direction of the strain-rate tensor, while at large ψ the alignment with the vorticity vector is preferred. The orientation autocorrelation is found to decay exponentially, with a decay rate that scales as 1/(2ψ). Analysis of the mean-squared displacement reveals a transition from a ballistic motion at short times to a diffusive regime at longer times. To assess the efficiency of vertical migration, we compute the probability distributions of vertical displacement over a fixed time interval and the time taken to migrate a specific vertical distance. Furthermore, we use a simplified two-dimensional model for spherical swimmers that qualitatively reproduces the key trends observed in the full three-dimensional simulations.

Physics Subject Headings (PhySH)

Article Text

References (37)

  1. W. Lampert, The adaptive significance of diel vertical migration of zooplankton, Funct. Ecol. 3, 21 (1989).
  2. W. M. Durham, E. Climent, M. Barry, F. De Lillo, G. Boffetta, M. Cencini, and R. Stocker, Turbulence drives microscale patches of motile phytoplankton, Nat. Commun. 4, 2148 (2013).
  3. F. De Lillo, M. Cencini, W. M. Durham, M. Barry, R. Stocker, E. Climent, and G. Boffetta, Turbulent fluid acceleration generates clusters of gyrotactic microorganisms, Phys. Rev. Lett. 112, 044502 (2014).
  4. R. Rusconi and R. Stocker, Microbes in flow, Curr. Opin. Microbiol. 25, 1 (2015).
  5. K. Gustavsson, F. Berglund, P. R. Jonsson, and B. Mehlig, Preferential sampling and small-scale clustering of gyrotactic microswimmers in turbulence, Phys. Rev. Lett. 116, 108104 (2016).
  6. A. Sengupta, F. Carrara, and R. Stocker, Phytoplankton can actively diversify their migration strategy in response to turbulent cues, Nature (London) 543, 555 (2017).
  7. A. Gupta, A. Roy, A. Saha, and S. S. Ray, Flocking of active particles in a turbulent flow, Phys. Rev. Fluids 5, 052601(R) (2020).
  8. J. K. Alageshan, A. K. Verma, J. Bec, and R. Pandit, Machine learning strategies for path-planning microswimmers in turbulent flows, Phys. Rev. E 101, 043110 (2020).
  9. X. Si and L. Fang, Preferential transport of swimmers in heterogeneous two-dimensional turbulent flow, Phys. Rev. Fluids 7, 094501 (2022).
  10. J. Qiu, C. Marchioli, and L. Zhao, A review on gyrotactic swimmers in turbulent flows, Acta Mech. Sin. 38, 722323 (2022).
  11. W. M. Durham, E. Climent, and R. Stocker, Gyrotaxis in a steady vortical flow, Phys. Rev. Lett. 106, 238102 (2011).
  12. M. Borgnino, G. Boffetta, F. De Lillo, and M. Cencini, Gyrotactic swimmers in turbulence: Shape effects and role of the large-scale flow, J. Fluid Mech. 856, R1 (2018).
  13. M. Cencini, G. Boffetta, M. Borgnino, and F. De Lillo, Gyrotactic phytoplankton in laminar and turbulent flows: A dynamical systems approach, Eur. Phys. J. E 42, 31 (2019).
  14. J. D. Wheeler, E. Secchi, R. Rusconi, and R. Stocker, Not just going with the flow: The effects of fluid flow on bacteria and plankton, Annu. Rev. Cell Dev. Biol. 35, 213 (2019).
  15. Z. Liu, L. Jiang, and C. Sun, Accumulation and alignment of elongated gyrotactic swimmers in turbulence, Phys. Fluids 34, 033303 (2022).
  16. J. O. Kessler, Hydrodynamic focusing of motile algal cells, Nature (London) 313, 218 (1985).
  17. D. Kamykowski, E. Milligan, and R. Reed, Relationships between geotaxis/phototaxis and diel vertical migration in autotrophic dinoflagellates, J. Plankton Res. 20, 1781 (1998).
  18. W. M. Durham, J. O. Kessler, and R. Stocker, Disruption of vertical motility by shear triggers formation of thin phytoplankton layers, Science 323, 1067 (2009).
  19. F. Santamaria, F. De Lillo, M. Cencini, and G. Boffetta, Gyrotactic trapping in laminar and turbulent Kolmogorov flow, Phys. Fluids 26, 111901 (2014).
  20. J. O. Kessler, Gyrotactic buoyant convection and spontaneous pattern formation in algal cell cultures, in Nonequilibrium Cooperative Phenomena in Physics and Related Fields (Springer, Berlin, 1984), pp. 241–248.
  21. G. B. Jeffery, The motion of ellipsoidal particles immersed in a viscous fluid, Proc. R. Soc. London, Ser. A 102, 161 (1922).
  22. A. Roberts, Geotaxis in motile micro-organisms, J. Exp. Biol. 53, 687 (1970).
  23. J. G. Mitchell, A. Okubo, and J. A. Fuhrman, Gyrotaxis as a new mechanism for generating spatial heterogeneity and migration in microplankton, Limnol. Oceanogr. 35, 123 (1990).
  24. J. S. Guasto, R. Rusconi, and R. Stocker, Fluid mechanics of planktonic microorganisms, Annu. Rev. Fluid Mech. 44, 373 (2012).
  25. C. Zhan, G. Sardina, E. Lushi, and L. Brandt, Accumulation of motile elongated micro-organisms in turbulence, J. Fluid Mech. 739, 22 (2014).
  26. J. R. Taylor and R. Stocker, Trade-offs of chemotactic foraging in turbulent water, Science 338, 675 (2012).
  27. O. A. Croze, G. Sardina, M. Ahmed, M. A. Bees, and L. Brandt, Dispersion of swimming algae in laminar and turbulent channel flows: Consequences for photobioreactors, J. R. Soc. Interface 10, 20121041 (2013).
  28. T. J. Pedley and J. Kessler, The orientation of spheroidal microorganisms swimming in a flow field, Proc. R. Soc. London, Ser. B 231, 47 (1987).
  29. A. Pumir and M. Wilkinson, Orientation statistics of small particles in turbulence, New J. Phys. 13, 093030 (2011).
  30. N. Pujara, M. Koehl, and E. Variano, Rotations and accumulation of ellipsoidal microswimmers in isotropic turbulence, J. Fluid Mech. 838, 356 (2018).
  31. M. Borgnino, K. Gustavsson, F. De Lillo, G. Boffetta, M. Cencini, and B. Mehlig, Alignment of nonspherical active particles in chaotic flows, Phys. Rev. Lett. 123, 138003 (2019).
  32. N. Pujara, J.-A. Arguedas-Leiva, C. C. Lalescu, B. Bramas, and M. Wilczek, Shape-and scale-dependent coupling between spheroids and velocity gradients in turbulence, J. Fluid Mech. 922, R6 (2021).
  33. D. Lewis, The orientation of gyrotactic spheroidal micro-organisms in a homogeneous isotropic turbulent flow, Proc. R. Soc. London, Ser. A 459, 1293 (2003).
  34. P. E. Hamlington, J. Schumacher, and W. J. Dahm, Direct assessment of vorticity alignment with local and nonlocal strain rates in turbulent flows, Phys. Fluids 20, 111703 (2008).
  35. S. Lovecchio, E. Climent, R. Stocker, and W. M. Durham, Chain formation can enhance the vertical migration of phytoplankton through turbulence, Sci. Adv. 5, eaaw7879 (2019).
  36. I. Fouxon and A. Leshansky, Phytoplankton's motion in turbulent ocean, Phys. Rev. E 92, 013017 (2015).
  37. Marcos, J. R. Seymour, M. Luhar, W. M. Durham, J. G. Mitchell, A. Macke, and R. Stocker, Microbial alignment in flow changes ocean light climate, Proc. Natl. Acad. Sci. USA 108, 3860 (2011).
