Two-stage dispersion mechanism of clean spherical bubbles rising in a chain

Satoi Suzuki and Toshiyuki Sanada*

  • *Contact author: sanada.toshiyuki@shizuoka.ac.jp
PDF

Phys. Rev. Fluids 11, 073604 – Published 29 July, 2026

DOI: https://doi.org/10.1103/6rn3-tp8q

Abstract

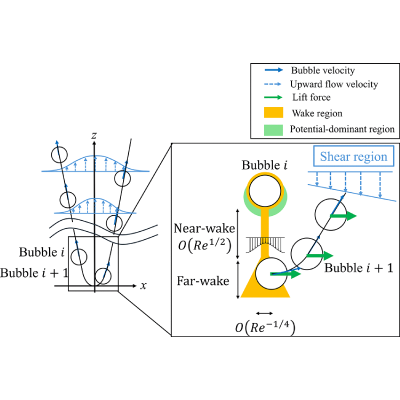

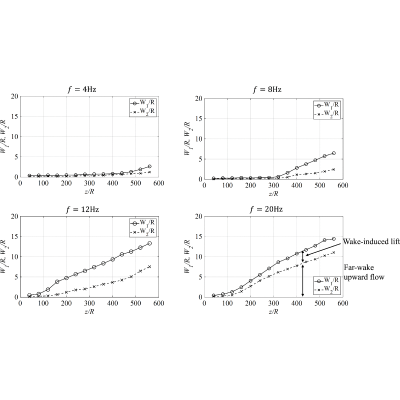

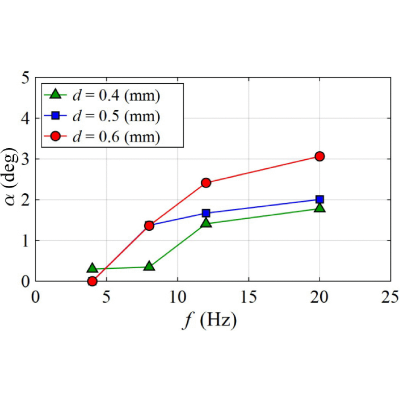

Wake-induced lift is a key mechanism governing the initial destabilization of bubbles rising in a chain [Atasi et al., Phys. Rev. Fluids 8, 053601 (2023)]. Moore's wake model predicts limited interfacial vorticity and a relatively slender, spatially confined wake for clean spherical bubbles, suggesting that wake-mediated interactions weaken as the interbubble spacing increases. However, we observed pronounced large-scale lateral dispersion and strong bubble frequency dependence in controlled experiments where bubble diameter and generation frequency were independently varied, even when the interbubble separation exceed the characteristic wake length. A reduced-order model incorporating pairwise wake-induced interactions captured the onset of bubble chain destabilization but systematically underpredicted the subsequent emergence of large-scale dispersion. We demonstrate that bubbles rising in a chain collectively generate a mean upward liquid flow that modifies the local shear field, enhancing the lateral migration through shear-induced lift. Incorporating this self-induced weak flow into the model quantitatively reproduced both the dispersion magnitude and its frequency dependence. These results suggest that the dispersion of bubbles rising in a chain involves a two-stage mechanism, with initial chain destabilization mediated by wake interactions, followed by flow modification arising from two-way coupling between bubbles and the liquid. This collective mechanism highlights the importance of self-induced mean flow effects in continuum descriptions of bubble flows.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (34)

  1. M. C. Ruzicka, On bubbles rising in line, Int. J. Multiphase Flow 26, 1141 (2000).
  2. T. Sanada, M. Watanabe, T. Fukano, and A. Kariyasaki, Behavior of a single coherent gas bubble chain and surrounding liquid jet flow structure, Chem. Eng. Sci. 60, 4886 (2005).
  3. O. Atasi, M. Ravisankar, D. Legendre, and R. Zenit, Presence of surfactants controls the stability of bubble chains in carbonated drinks, Phys. Rev. Fluids 8, 053601 (2023).
  4. D. Legendre and R. Zenit, Gas bubble dynamics, Rev. Mod. Phys. 97, 025001 (2025).
  5. D. W. Moore, The boundary layer on a spherical gas bubble, J. Fluid Mech. 16, 161 (1963).
  6. A. Blanco and J. Magnaudet, The structure of the axisymmetric high-Reynolds number flow around an ellipsoidal bubble of fixed shape, Phys. Fluids 7, 1265 (1995).
  7. J. F. Harper, On bubbles rising in line at large Reynolds numbers, J. Fluid Mech. 41, 751 (1970).
  8. H. Yuan and A. Prosperetti, On the in-line motion of two spherical bubbles in a viscous fluid, J. Fluid Mech. 278, 325 (1994).
  9. J. F. Harper, Bubbles rising in line: Why is the first approximation so bad? J. Fluid Mech. 351, 289 (1997).
  10. A. Biesheuvel and L. V. Wijngaarden, The motion of pairs of gas bubbles in a perfect liquid, J. Eng. Math. 16, 349 (1982).
  11. J. B. W. Kok, Dynamics of a pair of gas bubbles moving through liquid. Part I. Theory, Eur. J. Mech. B Fluids 12, 515 (1993).
  12. V. G. Levich, Physicochemical Hydrodynamics (Prentice-Hall, Hoboken, NJ, 1962).
  13. D. Legendre and J. Magnaudet, The lift force on a spherical bubble in a viscous linear shear flow, J. Fluid Mech. 368, 81 (1998).
  14. A. Tomiyama, H. Tamai, I. Zun, and S. Hosokawa, Transverse migration of single bubbles in simple shear flows, Chem. Eng. Sci. 57, 1849 (2002).
  15. Y. Hallez and D. Legendre, Interaction between two spherical bubbles rising in a viscous liquid, J. Fluid Mech. 673, 406 (2011).
  16. A. S. Sangani, R. Zenit, and D. L. Koch, Measurements of the average properties of a suspension of bubbles rising in a vertical channel, J. Fluid Mech. 429, 307 (2001).
  17. S. Takagi and Y. Matsumoto, Surfactant effects on bubble motion and bubbly flow, Annu. Rev. Fluid Mech. 43, 615 (2011).
  18. I. Lee and H. Choi, A numerical study on the clustering characteristics of rising air bubbles in stagnant water, Int. J. Multiphase Flow 194, 105419 (2026).
  19. K. Maeda, M. Date, K. Sugiyama, S. Takagi, and Y. Matsumoto, Viscid-inviscid interactions of pairwise bubbles in a turbulent channel flow and their implications for bubble clustering, J. Fluid Mech. 919, A30 (2021).
  20. H. Kusuno and T. Sanada, Experimental investigation of the motion of a pair of bubbles at intermediate Reynolds numbers, Multiphase Sci. Technol. 27, 51 (2015).
  21. F. Risso, Agitation, mixing, and transfers induced by bubbles, Annu. Rev. Fluid Mech. 50, 25 (2018).
  22. X. Gong, S. Takagi, and Y. Matsumoto, The effect of bubble-induced liquid flow on mass transfer in bubble plumes, Int. J. Multiphase Flow 35, 155 (2009).
  23. B. Wang and S. A. Socolofsky, On the bubble rise velocity of a continually released bubble chain in still water and with crossflow, Phys. Fluids 27, 103301 (2015).
  24. J. Zhang and M. J. Ni, What happens to the vortex structures when the rising bubble transits from zigzag to spiral? J. Fluid Mech. 828, 353 (2017).
  25. J. Zhang, L. Chen, and M. J. Ni, Vortex interactions between a pair of bubbles rising side by side in ordinary viscous liquids, Phys. Rev. Fluids 4, 043604 (2019).
  26. H. Kusuno and T. Sanada, Wake-induced lateral migration of approaching bubbles, Int. J. Multiphase Flow 139, 103639 (2021).
  27. M. Shirota, T. Sanada, A. Sato, and M. Watanabe, Formation of a submillimeter bubble from an orifice using pulsed acoustic pressure waves in gas phase, Phys. Fluids 20, 043301 (2008).
  28. F. Takemura, S. Takagi, J. Magnaudet, and Y. Matsumoto, Drag and lift forces on a bubble rising near a vertical wall in a viscous liquid, J. Fluid Mech. 461, 277 (2002).
  29. R. Clift, J. R. Grace, and M. E. Weber, Bubbles, Drops, and Particles (Academic Press, San Diego, CA, 1978).
  30. T. R. Auton, The lift force on a spherical body in a rotational flow, J. Fluid Mech. 183, 199 (1987).
  31. J. Ramírez-Muñoz, E. Salinas-Rodríguez, A. Soria, and A. Gama-Goicochea, Hydrodynamic interaction on large-Reynolds-number aligned bubbles: Drag effects, Nucl. Eng. Des. 241, 2371 (2011).
  32. J. Ramírez-Muñoz, A. Gama-Goicochea, and E. Salinas-Rodríguez, Drag force on interacting spherical bubbles rising in-line at large Reynolds number, Int. J. Multiphase Flow 37, 983 (2011).
  33. J. Ramírez-Muñoz, S. Baz-Rodríguez, E. Salinas-Rodríguez, E. Castellanos-Sahagún, and H. Puebla, Forces on aligned rising spherical bubbles at low-to-moderate Reynolds number, Phys. Fluids 25, 093303 (2013).
  34. R. Zenit and J. Magnaudet, Measurements of the streamwise vorticity in the wake of an oscillating bubble, Int. J. Multiphase Flow 35, 195 (2009).
