Wake dynamics and force responses of isolated and tandem rotating spheres at moderate Reynolds numbers

Suresh Behara*,†

  • Department of Mechanical Engineering Aditya Institute of Technology and Management, Tekkali, AP, 532201, India

  • *Contact author: Suresh.Behara@gmail.com
  • †Present address: ESS India LLP, Hoodi Circle, Bangalore 560048, India.
PDF

Phys. Rev. Fluids 11, 074101 – Published 21 July, 2026

DOI: https://doi.org/10.1103/5nws-mpcc

Abstract

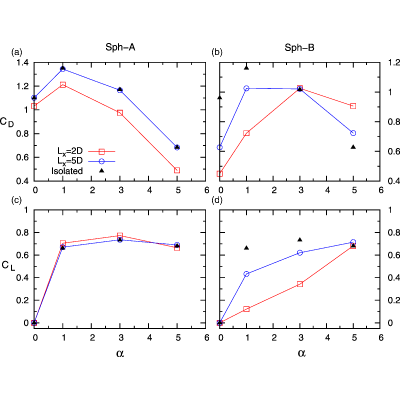

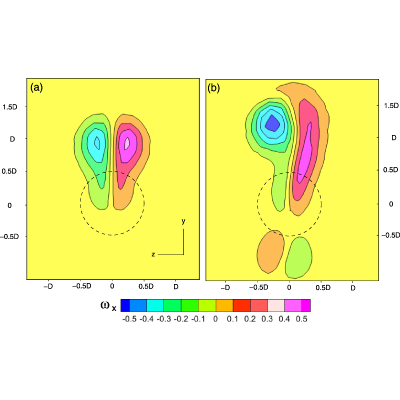

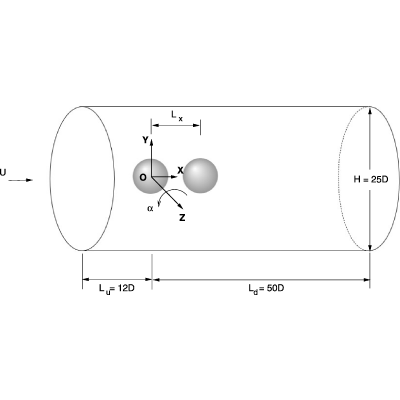

This study investigates the wake dynamics and force responses of transversely rotating spheres in isolated and tandem configurations at moderate Reynolds numbers (Re=100, 300, 1000). Using direct numerical simulations of transitional and weakly turbulent flow, we explore how rotation rate (α=0–5) and interbody spacing (Lx=2D, 5D; D is sphere diameter) influence wake topology, vortex shedding, and fluid forces. At lower Re, rotation suppresses unsteadiness, inducing double-threaded vortical structures, whereas at higher Re, centrifugal effects destabilize shear layers, generating multiscale vortices and weakly turbulent wakes. In tandem configurations, wake-body interactions promote instabilities even when rotation stabilizes the isolated sphere wake. The force coefficients exhibit a nonmonotonic dependence on α due to competing effects of Magnus-induced pressure asymmetry, shear layer separation, and wake unsteadiness.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (39)

  1. T. A. Johnson and V. C. Patel, Flow past a sphere up to a Reynolds number of 300, J. Fluid Mech. 378, 19 (1999).
  2. D. Ormieres and M. Provansal, Transition to turbulence in the wake of a sphere, Phys. Rev. Lett. 83, 80 (1999).
  3. R. Mittal, A Fourier–Chebyshev collocation method for simulating flow past spheres and spheroids, Int. J. Numer. Meth. Fluids 30, 921 (1999).
  4. R. Mittal, Planar symmetry in the unsteady wake of a sphere, AIAA J. 37, 388 (1999)b).
  5. P. Bagchi and S. Balachandar, Steady planar straining flow past a rigid sphere at moderate Reynolds number, J. Fluid Mech. 466, 365 (2002).
  6. B. Oesterle and B. Dinh, Experiments on the lift of a spinning sphere in a range of intermediate Reynolds numbers, Exp. Fluids 25, 16 (1998).
  7. R. Kurose and S. Komori, Drag and lift forces on a rotating sphere in a linear shear flow, J. Fluid Mech. 384, 183 (1999).
  8. D. Kim and H. Choi, Laminar flow past a sphere rotating in the streamwise direction, J. Fluid Mech. 461, 365 (2002).
  9. E. K. W. Poon, A. S. H. Ooi, M. Giacobello, and R. C. Z. Cohen, Laminar flow structures from a rotating sphere: Effect of rotating axis angle, Int. J. Heat Fluid Flow 61, 365 (2016).
  10. B. Pier, Local and global instabilities in the wake of a sphere, J. Fluids Struct. 43, 13 (2013).
  11. M. Skarysz and J. Rokicki, Experimental investigation of the wake behind a rotating sphere, Phys. Rev. Fluids 3, 013905 (2018).
  12. A. De and S. Sarkar, Wake instability behind a streamwise and transversely rotating sphere, Phys. Rev. Fluids 8, 024101 (2023).
  13. A. Chandel and S. P. Das, Wake of transversely rotating and translating sphere in quiescent water at low Reynolds number, Acta Mech. 232, 949 (2021).
  14. A. Chandel and S. P. Das, Effect of wall proximity on the wake of a rotating and translating sphere, Acta Mech. 232, 4833 (2021).
  15. M. Giacobello, A. Ooi, and S. Balachandar, Wake structure of a transversely rotating sphere at moderate Reynolds numbers, J. Fluid Mech. 621, 103 (2009).
  16. J. Dobson, A. Ooi, and E. K. W. Poon, The flow structures of a transversely rotating sphere at high rotation rates, Comput. Fluids 102, 1701 (2014).
  17. A. N. Rao, P.-Y. Passaggia, H. Bolnot, M. C. Thompson, T. Leweke, and K. Hourigan, Transition to chaos in the wake of a rolling sphere, J. Fluid Mech. 695, 135 (2012).
  18. K. A. Horowitz and C. H. K. Williamson, The effect of Reynolds number on the dynamics and wakes of freely rising and falling spheres, J. Fluid Mech. 651, 251 (2010).
  19. S. Behara, I. Borazjani, and F. Sotiropoulos, Vortex-induced vibrations of an elastically mounted sphere with three degrees of freedom at Re = 300: Hysteresis and vortex shedding modes, J. Fluid Mech. 686, 426 (2011).
  20. S. Behara and F. Sotiropoulos, Vortex-induced vibrations of an elastically mounted sphere: The effects of Reynolds number and reduced velocity, J. Fluids Struct. 66, 54 (2016).
  21. A. Desai and S. Mittal, Effect of free-stream turbulence on the topology of laminar separation bubble on a sphere, J. Fluid Mech. 948, A28 (2022).
  22. A. Parekh, D. Chaplot, and S. Mittal, Swing and reverse swing of a cricket ball: Laminar separation bubble, secondary vortex and wing-tip-like vortices, J. Fluid Mech. 983, A23 (2024).
  23. I. Kim, S. Elghobashi, and W. A. Sirignano, Three-dimensional flow over two spheres placed side by side, J. Fluid Mech. 246, 465 (1993).
  24. C. W. Yoon and K.-S. Yang, Characterization of flow pattern past two spheres in proximity, Phys. Fluids 21, 073603 (2009).
  25. A. Kumar, S. Tiwari, and S. P. Das, Effect of size and spacing on the wake characteristics of two spheres placed in tandem, Phys. Fluids 35, 053601 (2023).
  26. A. Kumar, S. P. Das, and S. Tiwari, On the wake of two transversely co-rotating inline spheres in a uniform flow, Phys. Fluids 36, 113625 (2024).
  27. P. Huerre and P. A. Monkewitz, Local and global instabilities in spatially developing flows, Annu. Rev. Fluid Mech. 22, 473 (1990).
  28. R. Natarajan and A. Acrivos, The instability of the steady flow past spheres and disks, J. Fluid Mech. 254, 323 (1993).
  29. S. Behara, V. Chandra, and N. R. Prashanth, Three-dimensional transition in the wake of two tandem rotating cylinders, J. Fluid Mech. 951, A29 (2022).
  30. Y. Saad and M. H. Schultz, GMRES: A generalized minimal residual algorithm for solving nonsymmetric linear systems, SIAM J. Sci. Stat. Comput. 7, 856 (1986).
  31. S. Behara and S. Mittal, Parallel finite element computation of incompressible flows, Parallel Comput. 35, 195 (2009).
  32. H. Schlichting and K. Gersten, Boundary Layer Theory, 9th ed. (Springer, Berlin, 2016).
  33. G. S. Constantinescu and K. D. Squires, LES and DNS investigation of turbulent flow over a sphere, AIAA Paper (2000).
  34. J. Magnaudet, M. Rivero, and J. Fabre, Accelerated flows past a rigid sphere or a spherical bubble. Part 1. Steady straining flow, J. Fluid Mech. 284, 97 (1995).
  35. R. Clift, J. R. Grace, and M. E. Weber, Bubbles, Drops and Particles (Dover Publications, Garden City, NY, 2005).
  36. J. C. R. Hunt, A. A. Wray, and P. Moin, Eddies, streams, and convergence zones in turbulent flows, in Proceedings of the 1988 Summer Program on Studying Turbulence Using Numerical Simulation Databases (1988), p. 193, https://ntrs.nasa.gov/citations/19890015184.
  37. J. D. Anderson Jr., Fundamentals of Aerodynamics, 6th ed. (McGraw Hill, Columbus, OH, 2019).
  38. D. Kim, Laminar flow past a sphere rotating in the transverse direction, J. Mech. Sci. Technol. 23, 578 (2009).
  39. S. Mittal and B. Kumar, Flow past a rotating cylinder, J. Fluid Mech. 476, 303 (2003).
