Scalar and momentum transfer in a low-Reynolds-number channel flow after a rough-to-smooth step change

Sedat Tardu* and Benjamin Arrondeau

  • *Contact author: sedat.tardu@univ-grenoble-alpes.fr
PDF

Phys. Rev. Fluids 11, 084611 – Published 31 August, 2026

DOI: https://doi.org/10.1103/39bs-fhf8

Abstract

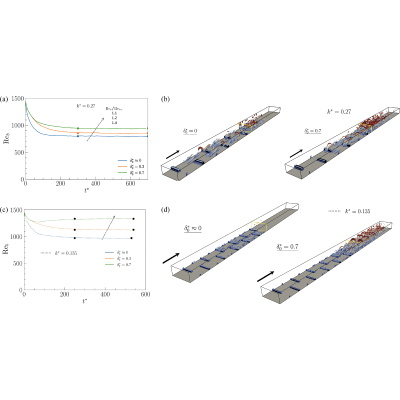

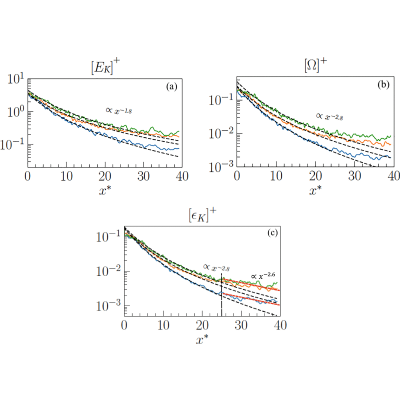

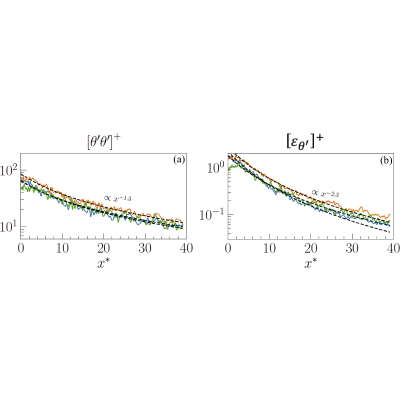

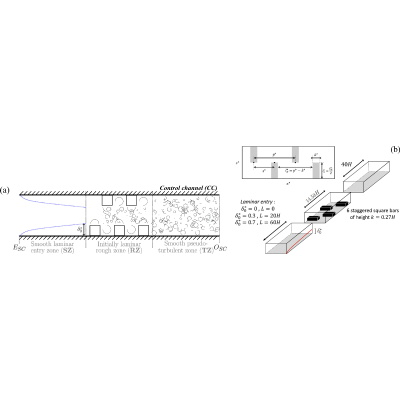

Relaxation of the turbulent momentum and passive scalar fields generated by a specific staggered roughness distribution in the entrance region of an initially laminar channel flow is studied through direct numerical simulations. The computational domain is necessarily large, and a new and fast algorithm is introduced to efficiently resolve the flow characteristics. Staggered roughness elements of height 0.27 times the half width of the channel recover the entry zone either entirely or partly, prior to a smooth channel labeled as the control channel (CC) wherein both the turbulent flow and scalar fields decay, because the Karman number is significantly low and it is close to the subcritical limit. Despite the low Reynolds numbers, the roughness elements are able to trigger the bypass transition mechanism leading to massive clusters of coherent quasistreamwise vortices entering into the smooth channel. The characteristics of the turbulence decay at the CC centerline collapse reasonably well with those of a homogeneous isotropic turbulence. The inner layer responds relatively rapidly to the rough-smooth step change in the control channel while the outer layer recovery is gradual. The decays of the fluctuating streamwise velocity and of the passive scalar intensities are particularly slow. Despite the fact that the turbulent activity decreases and that the flow approaches the relaminarization, the Nusselt number averaged over large streamwise distances in the smooth channel remains close to an equivalent fully developed turbulent smooth-channel flow.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (50)

  1. C. Y. Lee, C. L. Chang, Y. N. Wang, and L. M. Fu, Microfluidic mixing: A review, Int. J. Mol. Sci 12, 3263 (2011).
  2. S. Tardu, Forcing a low Reynolds number channel flow to generate synthetic turbulent-like structures, Comput. Fluids 55, 101 (2012).
  3. M. Belec, A. Girard, G. Balarac, U. Bieder, F. Millet, and N. Luchier, Effect of turbulence on the wavefront of an ultrahigh intensity laser beam, J. Fluids Eng. 143, 031504 (2021).
  4. N. N. Anika, L. Djenidi, and S. Tardu, Roughness effect in an initially laminar channel flow, J. Fluid Mech. 892, A34 (2020).
  5. S. Tardu and B. Arrondeau, Impact of staggered roughness on transition momentum and scalar transport at low Reynolds numbers, J. Fluid Mech. 1026, A3 (2026).
  6. R. Narasimha and K. R. Sreenivasan, Relaminarization in highly accelerated turbulent boundary layers, J. Fluid Mech. 61, 417 (1973).
  7. M. Li, C. M. De Silva, A. Rouhi, R. Baidya, D. Chung, I. Marusic, and N. Hutchins, Recovery of wall-shear stress to equilibrium flow conditions after a rough-to-smooth step change in turbulent boundary layers, J. Fluid Mech. 872, 472 (2019).
  8. R. E. Hanson and B. Ganapathisubramani, Development of turbulent boundary layers past a step change in wall roughness, J. Fluid Mech. 795, 494 (2016).
  9. R. A. Antonia and R. E. Luxton, The response of a turbulent boundary layer to a step change in surface roughness Part 1. Smooth to rough, J. Fluid Mech. 48, 721 (1971).
  10. J. H. Lee, Turbulent boundary layer flow with a step change from smooth to rough surface, Int. J. Heat Fluid Flow 54, 39 (2015).
  11. U. Ismail, T. A. Zaki, and P. A. Durbin, Simulations of rib-roughened rough-to-smooth turbulent channel flows, J. Fluid Mech. 843, 419 (2018).
  12. R. Narasimha and K. R. Sreenivasan, Relaminarization of fluid flows, Adv. Appl. Mech. 19, 221 (1979).
  13. S. Tardu, Near-wall dissipation revisited, Int. J. Heat Fluid Flow 67, 104 (2017).
  14. P. Sagaut and C. Cambon, Homogeneous Turbulence Dynamics (Cambridge University Press, New York, NY, 2008).
  15. E. A. Fadlun, R. Verzicco, P. Orlandi, and J. Mohd-Yusof, Combined immersed-boundary finite difference methods for three-dimensional complex flow simulations, J. Comput. Phys. 161, 35 (2000).
  16. J. Kim, D. Kim, and H. Choi, An immersed-boundary finite-volume method for simulations of flow in complex geometries, J. Comput. Phys. 171, 132 (2001).
  17. F. Bauer, S. Tardu, and O. Doche, Efficiency of high accuracy drp schemes in direct numerical simulations of incompressible turbulent flows, Comput. Fluids 107, 123 (2015).
  18. I. Arenas, E. Garcia, M. K. Fu, P. Orlandi, M. Hultmark, and S. Leonardi, Comparison between super-hydrophobic, liquid infused and rough surfaces: A direct numerical simulation study, J. Fluid Mech. 869, 500 (2019).
  19. S. Leonardi and I. P. Castro, Channel flow over large cube roughness: A direct numerical simulation study, J. Fluid Mech. 651, 519 (2010).
  20. J. Jeong, F. Hussain, W. Schoppa, and J. Kim, Coherent structures near the wall in a turbulent channel flow, J. Fluid Mech. 332, 185 (1997).
  21. S. A. Orszag and A. T. Patera, Secondary instability of wall-bounded shear flows, J. Fluid Mech. 128, 347 (1983).
  22. S. A. Orszag and L. C. Kells, Transition to turbulence in plane Poiseuille and plate Couette flow, J. Fluid Mech. 96, 159 (1980).
  23. R. A. Antonia, J. Kim, and L. W. B. Brown, Some characteristics of small-scale turbulence in a turbulent duct flow, J. Fluid Mech. 233, 369 (1991).
  24. Y. S. Kwon, J. Philip, C. M. de Silva, N. Hutchins, and J. P. Monty, The quiescent core of turbulent channel flow, J. Fluid Mech. 751, 228 (2014).
  25. C. G. Speziale and P. S. Bernard, The energy decay in self-preserving isotropic turbulence revisited, J. Fluid Mech. 241, 645 (1992).
  26. P. G. Saffman, The large-scale structure of homogeneous turbulence, J. Fluid Mech. 27, 581 (1967).
  27. P. A. Krogstad and P. A. Davidson, Is grid turbulence Saffman turbulence ? J. Fluid Mech. 642, 373 (2010).
  28. G. K. Batchelor and L. Proudman, The large-scale structure of homogeneous turbulence, Phil. Trans. R. Soc. A 248, 369 (1956).
  29. N. N. Mansour and A. A. Wray, Decay of isotropic turbulence at low Reynolds number, Phys. Fluids 6, 808 (1994).
  30. L. Skrbek and S. R. Stalp, On the decay of homogeneous isotropic turbulence, Phys. Fluids 12, 1997 (2000).
  31. G. K. Batchelor and A. A. Townsend, Decay of turbulence in the final period, Phil. Trans. R. Soc. A 194, 527 (1948).
  32. T. De Karman and L. Howarth, On the statistical theory of isotropic turbulence, Phil. Trans. R. Soc. A 164, 192 (1938).
  33. S. Corrsin, The decay of isotropic temperature fluctuations in an isotropic turbulence, J. Aeronaut. Sci. 18, 417 (1951).
  34. A. Briard, T. Gomez, P. Sagaut, and S. Memari, Passive scalar decay laws in isotropic turbulence: Prandtl number effects, J. Fluid Mech. 784, 274 (2015).
  35. S. K. Lee, A. Benaissa, L. Djenidi, and R. A. Antonia, Scaling range of velocity and passive scalar spectra in grid turbulence, Phys. Fluids 24, 075101 (2012).
  36. T. Van Burren, D. Floryan, L. Ding, L. H. O. Hellström, and A. J. Smits, Turbulent pipe flows response to a step change in surface roughness, J. Fluid Mech. 904, A38 (2020).
  37. M. Li, C. M. De Silva, D. Chung, D. I. Pullin, I. Marusic, and N. Hutchins, Experimental study of a turbulent boundary layer with a rough-to-smooth change in surface conditions at high Reynolds numbers, J. Fluid Mech. 923, A18 (2021).
  38. S. Tardu, Transport and Coherent Structures in Wall Turbulence (Wiley-ISTE, New York, NY, 2014).
  39. S. Hoyas and J. Jiménez, Scaling of the velocity fluctuations in turbulent channels up to Reτ=2003, Phys. Fluids 18, 011702 (2006).
  40. A. A. Townsend, The Structure of Turbulent Shear Flow, Cambridge Monographs on Mechanics and Applied Mathematics, 2nd ed. (Cambridge University Press, Cambridge, UK, 1976).
  41. J. Jiménez, J. C. Del Àlamo, and O. Flores, The large scale dynamics of near wall turbulence, J. Fluid Mech. 505, 179 (2004).
  42. S. Tardu and F. Bauer, Fine structure of the production in low to medium Reynolds number wall turbulence, Comput. Fluids 148, 82 (2017).
  43. S. Tardu and B. Arrondeau, Large-scale-motions within a transitional spot in a Poiseuille flow, Phy. Rev. Fluids 10, 063904 (2025).
  44. W. M. Kays and M. E. Crawford, Convective Heat and Mass Transfer, 2nd ed. (McGraw-Hill, New York, NY, 1980).
  45. J. Nordström, N. Nordin, and D. Henningson, The fringe region technique and the Fourier method used in the direct numerical simulation of spatially evolving viscous flows, SIAM J. Sci. Comput. 20, 1365 (1999).
  46. A. Lundbladh, S. Berlin, M. Skote, C. Hildings, J. Choi, J. Kim, and D. S.  Henningson, An efficient spectral method for simulations of incompressible flow over a flat plate, Tech. Rep. TRITA-MEK 1999:11, Department of Mechanics, Royal Institute of Technology, KTH, 1999.
  47. P. Schlatter, N. A. Adams, and L. Kleiser, A windowing method for periodic inflow/outflow boundary treatment of non-periodic flows, J. Comput. Phys. 206, 505 (2005).
  48. M. B. Priestley, Nonlinear and Nonstationary Time Series Analysis (Academic Press, London, UK, 1988).
  49. P. Flandrin, Time-Frequency/Time-Scale Analysis (Academic Press, San Diego, CA, 1998).
  50. J. S. Bendat and A. G. Piersol, Random Data: Analysis and Measurement Procedures (Wiley-Interscience, New York, NY, 1971).
