In situ estimation of the maximum secondary electron yield in the LHC Vacuum Pilot Sector beam pipe via electron cloud measurements and numerical simulations

Quentin Duong1,*, Vincent Baglin1, and Gaël Sattonnay2

  • *PHENIICS Doctoral School, Paris-Saclay University, 91405 Orsay, France.
PDF

Phys. Rev. Accel. Beams 29, 083503 – Published 31 August, 2026

DOI: https://doi.org/10.1103/6hvz-l89v

Abstract

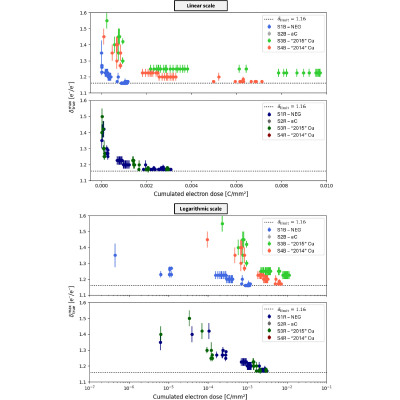

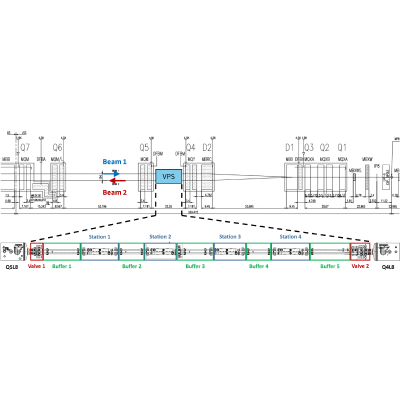

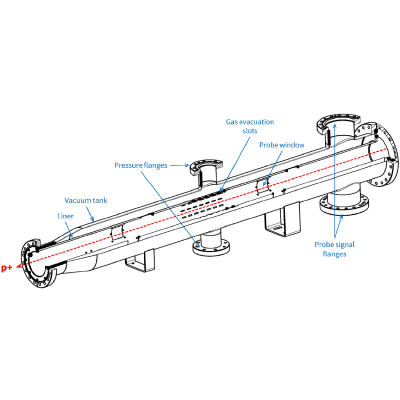

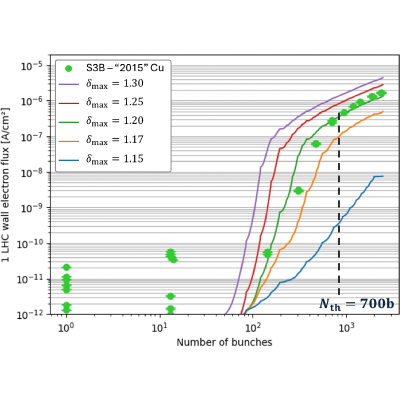

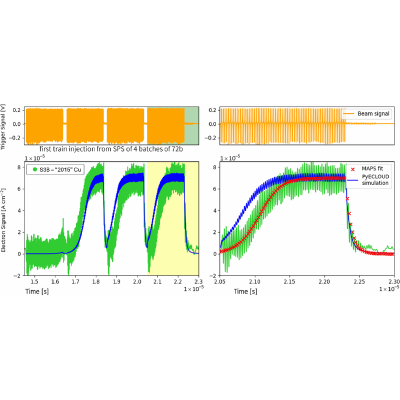

The maximum secondary electron yield, δmax, is a key parameter governing electron cloud buildup in high-intensity proton accelerators, yet its direct in situ determination under operational conditions remains challenging. This paper presents a novel method to estimate δmax in the Large Hadron Collider (LHC) using electron cloud measurements performed in the Vacuum Pilot Sector. The approach exploits the characteristic evolution of electron cloud intensity during beam injection, in particular the transition from an initial build-up regime to a linear scaling of electron flux with the number of injected bunches. Electron cloud currents measured with dedicated electron pickups are compared with PyECLOUD simulations performed for varying δmax values. The threshold number of injected bunches required to reach the linear regime provides a robust observable from which δmax can be extracted with limited sensitivity to other surface-emission parameters. The method is applied to multiple LHC fills and surface materials. For conditioned copper liners, δmax values between approximately 1.16 and 1.30 are obtained, in agreement with independent analyses and literature values. Applying the technique over extended operation periods enables the reconstruction of surface conditioning curves as a function of cumulative electron dose. These curves show a rapid initial decrease in δmax before approaching an apparent plateau, which may lie below the detection limit of the method depending on the beam pipe material and location. The method is compatible with routine LHC operation and enables systematic monitoring of vacuum-surface conditioning.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (30)

  1. G. I. Budker, G. I. Dimov, and V. G. Dudnikov, Experiments on producing intensive proton beams by means of the method of charge-exchange injection, Soviet At. Energy 22, 441 (1967).
  2. V. Dudnikov, Some features of transverse instabilities of partly compensated proton beams, in Proceedings of the 2001 Particle Accelerator Conference (IEEE, New York, 2001).
  3. J. Martin, R. Winje, R. Hilden, and F. Mills, Damping of the coherent vertical beam instability in the argonne zgs, in Proceedings of the 5th International Conference on High-Energy Accelerators (CNEN, Rome, Italy, 1965).
  4. O. Gröbner, Bunch induced multipactoring, in Proceedings of the 10th International Conference on High-Energy Accelerators (IHEP, Serpukhov, USSR, 1977), pp. 277–282.
  5. F. Zimmermann, Review of single bunch instabilities driven by an electron cloud, Phys. Rev. ST Accel. Beams 7, 124801 (2004).
  6. H. Bruining, Physics and Applications of Secondary Electron Emission (McGraw-Hill Book Co., New York, 1954).
  7. A. Dekker, Chap Secondary Electron Emission, Solid State Physics (Macmillan, London, 1958), pp. 251–311.
  8. R. G. Lye and A. J. Dekker, Theory of secondary emission, Phys. Rev. 107, 977 (1957).
  9. V. Baglin, J. Bojko, O. Gröbner, B. Henrist, N. Hilleret, C. Scheuerlein, and M. Taborelli, The secondary electron yield of technical materials and its variation with surface treatments, LHC Project Report 433, LHC Project Report, CERN, 2000.
  10. R. Cimino, I. R. Collins, M. A. Furman, M. Pivi, F. Ruggiero, G. Rumolo, and F. Zimmermann, Can low-energy electrons affect high-energy physics accelerators?, Phys. Rev. Lett. 93, 014801 (2004).
  11. M. Furman, The electron-cloud effect in the arcs of the LHC, Technical Report, CERN, 1998.
  12. M. A. Furman and M. T. F. Pivi, Probabilistic model for the simulation of secondary electron emission, Phys. Rev. ST Accel. Beams 5, 124404 (2002).
  13. R. Cimino, M. Commisso, D. R. Grosso, T. Demma, V. Baglin, R. Flammini, and R. Larciprete, Nature of the decrease of the secondary-electron yield by electron bombardment and its energy dependence, Phys. Rev. Lett. 109, 064801 (2012).
  14. V. Petit, M. Taborelli, H. Neupert, P. Chiggiato, and M. Belhaj, Role of the different chemical components in the conditioning process of air exposed copper surfaces, Phys. Rev. Accel. Beams 22, 083101 (2019).
  15. V. Baglin, I. Collins, B. Henrist, N. Hilleret, and G. Vorlaufer, A summary of main experimental results concerning the secondary electron emission of copper, LHC Project Report 472, CERN, 2001.
  16. R. Larciprete, D. R. Grosso, M. Commisso, R. Flammini, and R. Cimino, Secondary electron yield of cu technical surfaces: Dependence on electron irradiation, Phys. Rev. ST Accel. Beams 16, 011002 (2013).
  17. C. Scheuerlein, N. Hilleret, M. Taborelli, A. Brown, and M. Baker, An aes study of the room temperature surface conditioning of technological metal surfaces by electron irradiation, Appl. Surf. Sci. 202, 57 (2002).
  18. M. Haubner, Electron beam characterization of technical surfaces at cryogenic temperatures, Ph.D. thesis, Czech Technical University in Prague, 2023.
  19. V. Baglin, I. Collins, O. Gröbner, C. Grünhagel, B. Henrist, N. Hilleret, and B. Jenninger, Measurements at epa of vacuum and electron-cloud related effect, in Proceedings of the 11th LHC Workshop Chamonix XI (CERN, Geneva, Switzerland, 2001), pp. 141–143.
  20. M. Pivi, F. King, R. Kirby, T. Markiewicz, T. Raubenheimer, J. Seeman, and L. Wang, Secondary electron yield measurements and groove chambers updated tests in the pep-ii beam line*, in Proceedings of EPAC 2008 (JACoW Publishing, Geneva, Switzerland, 2008).
  21. J. Kim, D. Asner, J. Conway, S. Greenwald, Y. Li, V. Medjidzade, T. Moore, M. Palmer, and C. Strohman, In situ sey measurements at cesrta*, in Proceedings of ECLOUD 2010 (JACoW Publishing, Geneva, Switzerland, 2010).
  22. G. Iadarola, Electron cloud studies for CERN particle accelerators and simulations code development, Ph.D. thesis, Università degli Studi di Napoli Federico II, 2014.
  23. G. Iadarola, K. Paraschou, and L. Mether, PyECLOUD, version 8.7.1, https://github.com/PyCOMPLETE/PyECLOUD (2024).
  24. U. Iriso and S. Peggs, An analytic calculation of the electron cloud linear map coefficient, in Proceedings of EPAC 2006 (European Physical Society Accelerator Group, Mulhouse, France, 2006).
  25. S. Heifets, Electron cloud at high beam currents, in Proceedings of ECLOUD’02 (CERN, Geneva, Switzerland, 2002).
  26. S. Petracca, A. Stabile, and T. Demma, The quadratic coefficient of the electron cloud mapping, in Proceedings of ECLOUD’12 (CERN, Geneva, Switzerland, 2012).
  27. Q. Duong, Electron cloud study with the CERN LHC vacuum pilot sector, Ph.D. thesis, Paris-Saclay University, 2025.
  28. E. Buratin, V. Baglin, B. Henrist, P. Chiggiato, and A. Fasoli, Electron flux and pressure dynamic in the LHC vacuum pilot sector as a function of beam parameters and beam pipe properties, Phys. Rev. Accel. Beams 23, 114802 (2020).
  29. F. Caspers, S. Gilardoni, E. Mahner, G. Rumolo, C. Yin Vallgren, and G. Iadarola, Comparison between electron cloud build-up measurements and simulations at the CERN PS, in Proceedings of the 3rd International Particle Accelerator Conference (JACoW Publishing, Geneva, Switzerland, 2012).
  30. S. Bilgen, Dynamic pressure in particle accelerators: Experimental measurements and simulation for the LHC, Ph.D. thesis, Université Paris-Saclay, 2020.
