Efficient three-dimensional sub-Doppler cooling of Ca+40 in a Penning trap

Brian J. McMahon* and Brian C. Sawyer

  • *Contact author: brian.mcmahon@gtri.gatech.edu
PDF

Phys. Rev. A 114, 013119 – Published 20 July, 2026

DOI: https://doi.org/10.1103/qq69-zdy3

Abstract

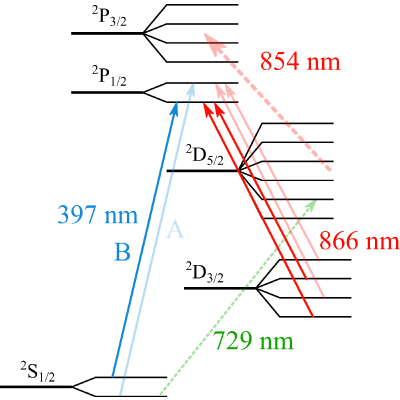

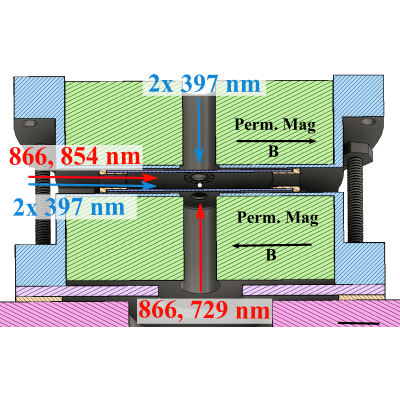

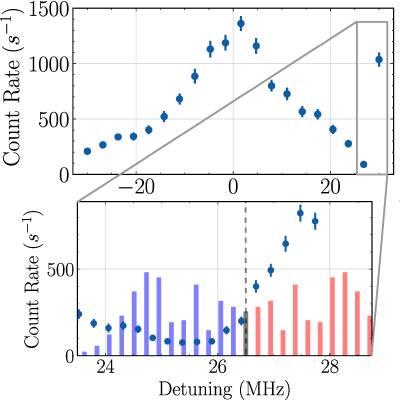

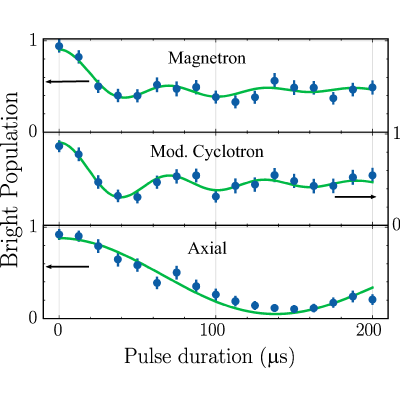

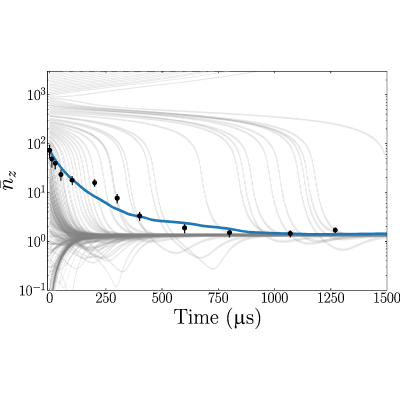

We demonstrate efficient sub-Doppler laser cooling of the three eigenmodes of a Ca+40 ion confined in a compact Penning trap operating with a magnetic field of 0.91 T. Using the same set of laser beams as required for the initial Doppler laser cooling operation, we detune the laser frequencies to produce a narrow two-photon dark resonance. The process achieves a 1/e cooling time constant of 108(8)µs, ultimately reducing the mean thermal axial mode occupation from 72(23) to 1.5(3) in 800µs as measured by resonantly probing an electric quadrupole transition near 729 nm. A parametric drive is applied to the trap electrodes, which coherently exchanges the axial mode occupation with that of each radial mode, allowing for three-dimensional sub-Doppler cooling using only the axially propagating laser beams. This sub-Doppler cooling is achieved for an axial oscillation frequency of ωz=2π×221kHz, which places the motion well outside the Lamb-Dicke confinement regime at the Doppler laser cooling limit. Our measured cooling rate and final mode occupation are in good agreement with a semiclassical model which combines a Lindblad master equation solution for ion-photon interactions with classical harmonic-oscillator motion of the trapped ion.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (42)

  1. S. Jain, T. Sägesser, P. Hrmo, C. Torkzaban, M. Stadler, R. Oswald, C. Axline, A. Bautista-Salvador, C. Ospelkaus, D. Kienzler, and J. Home, Penning micro-trap for quantum computing, Nature (London) 627, 510 (2024).
  2. J. P. Gaebler, T. R. Tan, Y. Lin, Y. Wan, R. Bowler, A. C. Keith, S. Glancy, K. Coakley, E. Knill, D. Leibfried, and D. J. Wineland, High-fidelity universal gate set for Be+9 ion qubits, Phys. Rev. Lett. 117, 060505 (2016).
  3. C. J. Ballance, T. P. Harty, N. M. Linke, M. A. Sepiol, and D. M. Lucas, High-fidelity quantum logic gates using trapped-ion hyperfine qubits, Phys. Rev. Lett. 117, 060504 (2016).
  4. C. R. Clark, H. N. Tinkey, B. C. Sawyer, A. M. Meier, K. A. Burkhardt, C. M. Seck, C. M. Shappert, N. D. Guise, C. E. Volin, S. D. Fallek, H. T. Hayden, W. G. Rellergert, and K. R. Brown, High-fidelity Bell-state preparation with Ca40 optical qubits, Phys. Rev. Lett. 127, 130505 (2021).
  5. C. H. Baldwin, B. J. Bjork, M. Foss-Feig, J. P. Gaebler, D. Hayes, M. G. Kokish, C. Langer, J. A. Sedlacek, D. Stack, and G. Vittorini, High-fidelity light-shift gate for clock-state qubits, Phys. Rev. A 103, 012603 (2021).
  6. C. F. Roos, D. Leibfried, A. Mundt, F. Schmidt-Kaler, J. Eschner, and R. Blatt, Experimental demonstration of ground state laser cooling with electromagnetically induced transparency, Phys. Rev. Lett. 85, 5547 (2000).
  7. R. Lechner, C. Maier, C. Hempel, P. Jurcevic, B. P. Lanyon, T. Monz, M. Brownnutt, R. Blatt, and C. F. Roos, Electromagnetically-induced-transparency ground-state cooling of long ion strings, Phys. Rev. A 93, 053401 (2016).
  8. D. T. C. Allcock, T. P. Harty, M. A. Sepiol, H. A. Janacek, C. J. Ballance, A. M. Steane, D. M. Lucas, and D. N. Stacey, Dark-resonance Doppler cooling and high fluorescence in trapped Ca-43 ions at intermediate magnetic field, New J. Phys. 18, 023043 (2016).
  9. N. Scharnhorst, J. Cerrillo, J. Kramer, I. D. Leroux, J. B. Wübbena, A. Retzker, and P. O. Schmidt, Experimental and theoretical investigation of a multimode cooling scheme using multiple electromagnetically-induced-transparency resonances, Phys. Rev. A 98, 023424 (2018).
  10. L. Feng, W. L. Tan, A. De, A. Menon, A. Chu, G. Pagano, and C. Monroe, Efficient ground-state cooling of large trapped-ion chains with an electromagnetically-induced-transparency tripod scheme, Phys. Rev. Lett. 125, 053001 (2020).
  11. J. J. Wu, P.-Y. Hou, S. D. Erickson, A. D. Brandt, Y. Wan, G. Zarantonello, D. C. Cole, A. C. Wilson, D. H. Slichter, and D. Leibfried, Electromagnetically-induced-transparency cooling with a tripod structure in a hyperfine trapped ion with mixed-species crystals, Phys. Rev. A 111, 043109 (2025).
  12. J. P. Bartolotta, B. Estey, M. Foss-Feig, D. Hayes, and C. N. Gilbreth, Laser cooling trapped-ion crystal modes beyond the Lamb-Dicke regime, arXiv:2411.18818.
  13. C. Huang, C. Wang, H. Zhang, H. Hu, Z. Wang, Z. Mao, S. Li, P. Hou, Y. Wu, Z. Zhou, and L. Duan, Electromagnetically induced transparency cooling of high-nuclear-spin ions, Phys. Rev. Lett. 133, 113204 (2024).
  14. E. Jordan, K. A. Gilmore, A. Shankar, A. Safavi-Naini, J. G. Bohnet, M. J. Holland, and J. J. Bollinger, Near ground-state cooling of two-dimensional trapped-ion crystals with more than 100 ions, Phys. Rev. Lett. 122, 053603 (2019).
  15. P. Hrmo, M. K. Joshi, V. Jarlaud, O. Corfield, and R. C. Thompson, Sideband cooling of the radial modes of motion of a single ion in a Penning trap, Phys. Rev. A 100, 043414 (2019).
  16. J. F. Goodwin, G. Stutter, R. C. Thompson, and D. M. Segal, Resolved-sideband laser cooling in a Penning trap, Phys. Rev. Lett. 116, 143002 (2016).
  17. J. M. Cornejo, J. Brombacher, J. A. Coenders, M. von Boehn, T. Meiners, M. Niemann, S. Ulmer, and C. Ospelkaus, Resolved-sideband cooling of a single Be+9 ion in a cryogenic multi-Penning-trap for discrete symmetry tests with (anti-)protons, Phys. Rev. Res. 6, 033233 (2024).
  18. J. H. Pham, J. Y. Z. Jee, A. Rischka, M. J. Biercuk, and R. N. Wolf, In situ-tunable spin-spin interactions in a Penning trap with in-bore optomechanics, Adv. Quantum Technol. 7, 2400086 (2024).
  19. C. Mordini, A. Ricci Vasquez, Y. Motohashi, M. Müller, M. Malinowski, C. Zhang, K. K. Mehta, D. Kienzler, and J. P. Home, Multizone trapped-ion qubit control in an integrated photonics QCCD device, Phys. Rev. X 15, 011040 (2025).
  20. Z. Xing, H. M. Rivy, V. Natarajan, A. M. Kolhatkar, G. Beck, and K. K. Mehta, Rapid multi-mode trapped-ion laser cooling in a phase-stable standing wave, arXiv:2512.10900.
  21. M. Roghani and H. Helm, Trapped-atom cooling beyond the Lamb-Dicke limit using electromagnetically induced transparency, Phys. Rev. A 77, 043418 (2008).
  22. E. A. Cornell, R. M. Weisskoff, K. R. Boyce, and D. E. Pritchard, Mode coupling in a Penning trap: π pulses and a classical avoided crossing, Phys. Rev. A 41, 312 (1990).
  23. D. J. Gorman, P. Schindler, S. Selvarajan, N. Daniilidis, and H. Häffner, Two-mode coupling in a single-ion oscillator via parametric resonance, Phys. Rev. A 89, 062332 (2014).
  24. W. M. Itano and D. J. Wineland, Laser cooling of ions stored in harmonic and Penning traps, Phys. Rev. A 25, 35 (1982).
  25. M. J. Jensen, T. Hasegawa, and J. J. Bollinger, Temperature and heating rate of ion crystals in Penning traps, Phys. Rev. A 70, 033401 (2004).
  26. K. Koo, J. Sudbery, D. M. Segal, and R. C. Thompson, Doppler cooling of Ca+ ions in a Penning trap, Phys. Rev. A 69, 043402 (2004).
  27. D. J. Wineland and W. M. Itano, Laser cooling of atoms, Phys. Rev. A 20, 1521 (1979).
  28. H. F. Powell, S. R. de Echaniz, E. S. Phillips, D. M. Segal, and R. C. Thompson, Improvement of laser cooling of ions in a Penning trap by use of the axialization technique, J. Phys. B 36, 961 (2003).
  29. We provide a representative range of occupations of the radial modes after Doppler cooling with axialization since they are particularly sensitive to the intensity and placement of the radial 397-nm laser beams.
  30. B. J. McMahon, K. R. Brown, C. D. Herold, and B. C. Sawyer, Individual-ion addressing and readout in a Penning trap, Phys. Rev. Lett. 133, 173201 (2024).
  31. R. J. Hendricks, E. S. Phillips, D. M. Segal, and R. C. Thompson, Laser cooling in the Penning trap: An analytical model for cooling rates in the presence of an axializing field, J. Phys. B 41, 035301 (2008).
  32. G. Savard, S. Becker, G. Bollen, H.-J. Kluge, R. Moore, T. Otto, L. Schweikhard, H. Stolzenberg, and U. Wiess, A new cooling technique for heavy ions in a Penning trap, Phys. Lett. A 158, 247 (1991).
  33. H. F. Powell, D. M. Segal, and R. C. Thompson, Axialization of laser cooled magnesium ions in a Penning trap, Phys. Rev. Lett. 89, 093003 (2002).
  34. S. Guan, M. C. Wahl, and A. G. Marshall, Broadband axialization in an ion cyclotron resonance ion trap, J. Chem. Phys. 100, 6137 (1994).
  35. E. S. Phillips, R. J. Hendricks, A. M. Abdulla, H. Ohadi, D. R. Crick, K. Koo, D. M. Segal, and R. C. Thompson, Dynamics of axialized laser-cooled ions in a Penning trap, Phys. Rev. A 78, 032307 (2008).
  36. M. M. Khan, D. Wellnitz, B. Sundar, H. Zhang, A. Carter, J. J. Bollinger, A. Shankar, and A. M. Rey, Many-body effects in dark-state laser cooling, arXiv:2601.09180.
  37. G. Morigi, Cooling atomic motion with quantum interference, Phys. Rev. A 67, 033402 (2003).
  38. Our trap PCB electrodes produce an electrostatic quadrupole that is slightly tilted with respect to the trap magnetic field. We remove this tilt with a waveform that differentially charges the azimuthally segmented electrodes. This means that a uniform oscillating voltage applied to all segments will introduce an oscillating quadrupolar potential that is tilted with respect to the magnetic field.

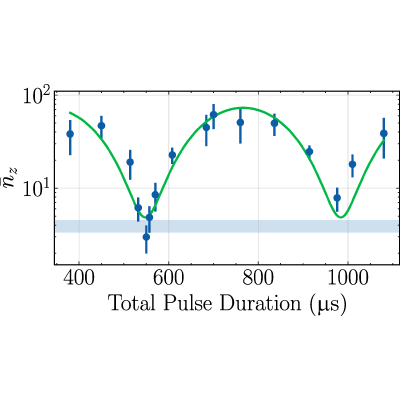

  39. The data of Fig. 5 reflect an elevated background axial mode heating rate due to technical noise. We have recently removed this technical noise source by electronically disconnecting the axialization inputs from the trap when not performing Doppler cooling.
  40. A. Shankar, C. Tang, M. Affolter, K. Gilmore, D. H. E. Dubin, S. Parker, M. J. Holland, and J. J. Bollinger, Broadening of the drumhead-mode spectrum due to in-plane thermal fluctuations of two-dimensional trapped ion crystals in a Penning trap, Phys. Rev. A 102, 053106 (2020).
  41. H. A. Janacek, Optical Bloch equations for simulating trapped-ion qubits, Ph.D. thesis, University of Oxford, 2015.
  42. H.-K. Lau and M. B. Plenio, Laser cooling of a high-temperature oscillator by a three-level system, Phys. Rev. B 94, 054305 (2016).
