Progress toward quantum-noise-limited interferometric measurements of optical nonlinearity in vacuum
Phys. Rev. A 114, 013519 – Published 22 July, 2026
DOI: https://doi.org/10.1103/h592-kkjm
Abstract

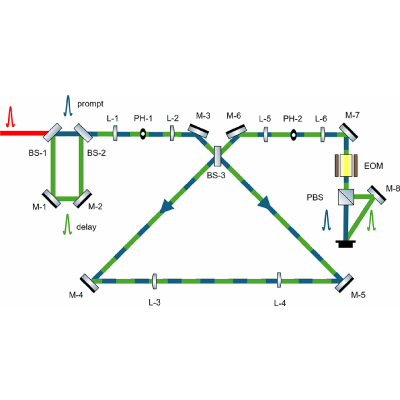

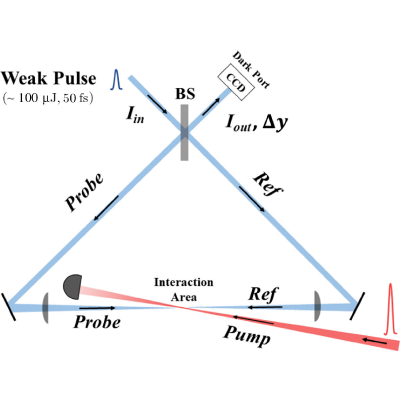

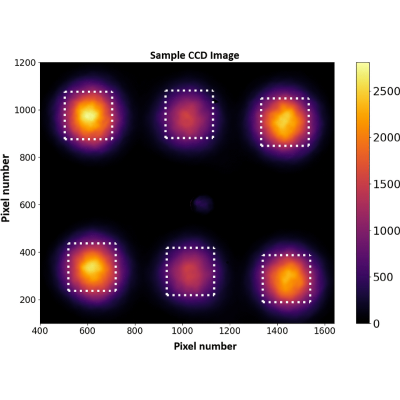

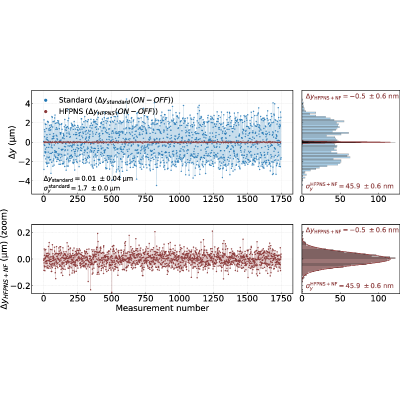

Quantum electrodynamics predicts that the vacuum must behave as a nonlinear optical medium: The vacuum optical index should increase when it is stressed by intense electromagnetic fields. The Deflection of Light by Light project aims to measure it by using intense and ultrashort laser pulses. The experiment uses a Sagnac interferometer to amplify the tiny deflection signal of a low-intensity probe pulse crossing the vacuum refractive-index gradient produced by an external high-intensity pump pulse. The measurement of the amplified signal by a CCD camera requires a high spatial resolution, which is limited by the ultimate quantum noise of the CCD. However, interferometric phase noise induced by the mechanical vibrations of the interferometer is also amplified and degrades spatial resolution. To overcome this, we propose a method named high-frequency phase noise suppression (HFPNS), based on the addition of a delayed replica (5 ns) of the probe pulse. The delayed pulse, which is not affected by the pump but is subject to the same vibration noise, enables offline subtraction of correlated phase noise. In this work, we present an experimental proof of concept on a prototype interferometer operating with a limited amplification factor , about ten times smaller than the required value of the final experiment. We have succeeded in reducing phase noise by a factor of 40, resulting in a residual noise level 2.3 times higher than the expected quantum noise. The residual noise is linked to delay-line instabilities and incident beam-pointing fluctuations present during these tests. This result validates HFPNS as a robust method for future quantum-noise-limited interferometric measurements of vacuum optical nonlinearity, though additional stabilization and higher interferometric amplification are still needed.
Physics Subject Headings (PhySH)
Article Text
References (14)
- H. Euler and B. Kockel, Über die streuung von licht an licht nach der Diracschen theorie, Naturwissenschaften 23, 246 (1935).
- W. Heisenberg and H. Euler, Folgerungen aus der Diracschen theorie des positrons, Z. Phys. 98, 714 (1936).
- J. Schwinger, On gauge invariance and vacuum polarization, Phys. Rev. 82, 664 (1951).
- D. L. Burke, R. C. Field, G. Horton-Smith, J. E. Spencer, D. Walz, S. C. Berridge, W. M. Bugg, K. Shmakov, A. W. Weidemann, C. Bula, et al., Positron production in multiphoton light-by-light scattering, Phys. Rev. Lett. 79, 1626 (1997).
- ATLAS Collaboration, Evidence for light-by-light scattering in heavy-ion collisions with the ATLAS detector at the LHC, Nat. Phys. 13, 852 (2017).
- A. M. Sirunyan, A. Tumasyan, W. Adam, F. Ambrogi, E. Asilar, T. Bergauer, J. Brandstetter, M. Dragicevic, J. Erö, A. E. Del Valle, et al., Evidence for light-by-light scattering and searches for axion-like particles in ultraperipheral PbPb collisions at , Phys. Lett. B 797, 134826 (2019).
- S.-J. Chen, H.-H. Mei, and W.-T. Ni, Q & A experiment to search for vacuum dichroism, pseudoscalar–photon interaction and millicharged fermions, Mod. Phys. Lett. A 22, 2815 (2007).
- X. Fan, S. Kamioka, T. Inada, et al., The OVAL experiment: A new experiment to measure vacuum magnetic birefringence using high repetition pulsed magnets, Eur. Phys. J. D 71, 308 (2017).
- A. Ejlli, F. D. Valle, U. Gastaldi, G. Messineo, R. Pengo, G. Ruoso, and G. Zavattini, The PVLAS experiment: A 25 year effort to measure vacuum magnetic birefringence, Phys. Rep. 871, 1 (2020).
- G. Zavattini, F. D. Valle, A. M. Soflau, L. Formaggio, G. Crapulli, G. Messineo, E. Mariotti, Š. Kunc, A. Ejlli, G. Ruoso, C. Marinelli, and M. Andreotti, Polarimetry for measuring the vacuum magnetic birefringence with quasi-static fields: A systematics study for the VMB@CERN experiment, Eur. Phys. J. C 82, 159 (2022).
- D. Xu, B. Shen, J. Xu, and Z. Liang, XFEL beamline design for vacuum birefringence experiment, Nucl. Instrum. Methods Phys. Res. Sect. A 982, 164553 (2020).
- A. E. Kraych, A. M. Mailliet, F. Couchot, X. Sarazin, E. Baynard, J. Demailly, M. Pittman, A. Djannati-Ataï, S. Kazamias, S. Robertson, and M. Urban, Interferometric measurement of the deflection of light by light in air, Phys. Rev. A 109, 053510 (2024).
- A. M. Mailliet, A. E. Kraych, F. Couchot, X. Sarazin, E. Baynard, J. Demailly, M. Pittman, A. Djannati-Ataï, S. Kazamias, S. Robertson, and M. Urban, Performance of a Sagnac interferometer to observe vacuum optical nonlinearity Phys. Rev. A 109, 043526 (2024).
- S. Robertson, A. Mailliet, X. Sarazin, F. Couchot, E. Baynard, J. Demailly, M. Pittman, A. Djannati-Ataï, S. Kazamias, and M. Urban, Experiment to observe an optically induced change of the vacuum index, Phys. Rev. A 103, 023524 (2021).
